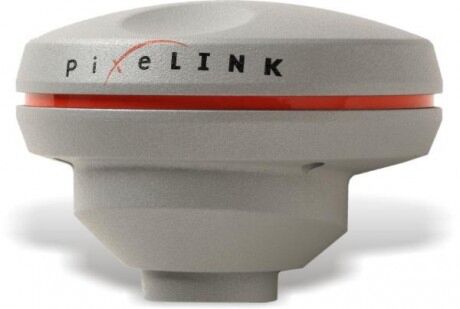

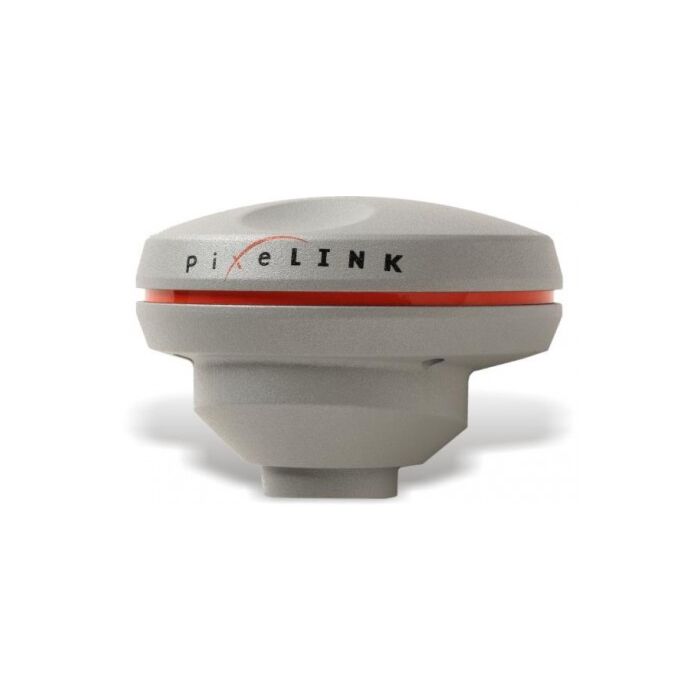

  • PixeLINK PL-B872 Series Image 1

PixeLINK PL-B872 Series 1.4MP 1392x1040 Resolution Microscopy Camera/Kits (Sony ICX285)

Quick Overview

The PL-B872 Series of color cameras features a USB 2.0 interface and uses the 2/3″ format 1.4 megapixel Sony ICX285 progressive scan.


Color Space                  µScope Version                      Housing


C – Color                        KIT Essentials Version            BL – Board Level


M – Mono                      SE Standard Version                T – Trigger


NIR – Near Infrared      PRO - Professional Version      CYL - Cylindrical case


F - Firewire                     G - GigE                                   U - USB 2.0


See Specs Below For All Configurations-

Overview

The PixeLINK PL-B872 Series is designed for Microscopy and similar precise applications.



Features:



  • Saturation
  • Color Temperature
  • Time Lapse Capture
  • Image Flip
  • Image Rotate
  • Adjustable ROI (CMOS only)
  • Capture Full Resolution (CMOS only)
  •


    Applications:



  • Petrology
  • Parts Inspection
  • Live Cell Imaging
  • Pathology
  • Metrology
  • Histology
  • Palynology
  • Microbiology
  • Orthopantomography
  • Elastography
  • Projectional radiography
  • Fluoroscopy
  • Specifications
    Sensor Sony ICX285
    Color Space Color/Mono
    Type CMOS Rolling Shutter
    Resolution 2592(H) x 1944(V) 5.0 MP Color & Mono
    Pixel Pitch 2.2 µm x 2.2 µm
    Active Area 5.70 mm x 4.28 mm - 7.13 mm diagonal
    Peak QE 69 % (mono) 46 % (color)
    FPN <1 %
    PRNU <2.5 %
    Mono Data Formats Raw, Mono 8 and Mono 16
    Exposure Range 100 µs to 2 seconds free running 136 µs to 2 seconds triggered
    Dimensions 102 x 50 x 41 mm (straight) 110 x 50 x 41 mm (right angle)
    Mounting 4 M3 threaded holes in front plate & 4 M3 threaded holes in camera case
    Lens Mount C & CS-Mount, 1/2.5” optical format



    Configurations:

                 Color                                        Mono

                 PL-B872CF                              PL-B872MF
                 PL-B872CF-KIT                       PL-B872MF-KIT
                 PL-B872CF-PRO                     PL-B872MF-PRO
                 PL-B872CU                              PL-B872MU
                 PL-B872CU-KIT                       PL-B872MU-KIT
                 PL-B9=872CU-PRO                 PL-B872MU-PRO
