  • PixeLINK PL-B871 Series  Image 1

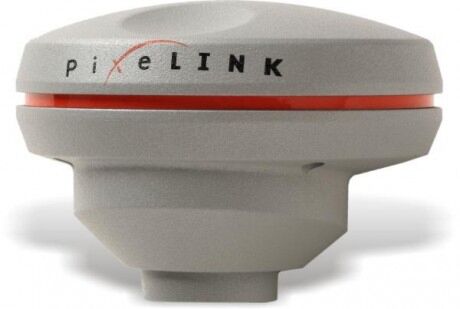

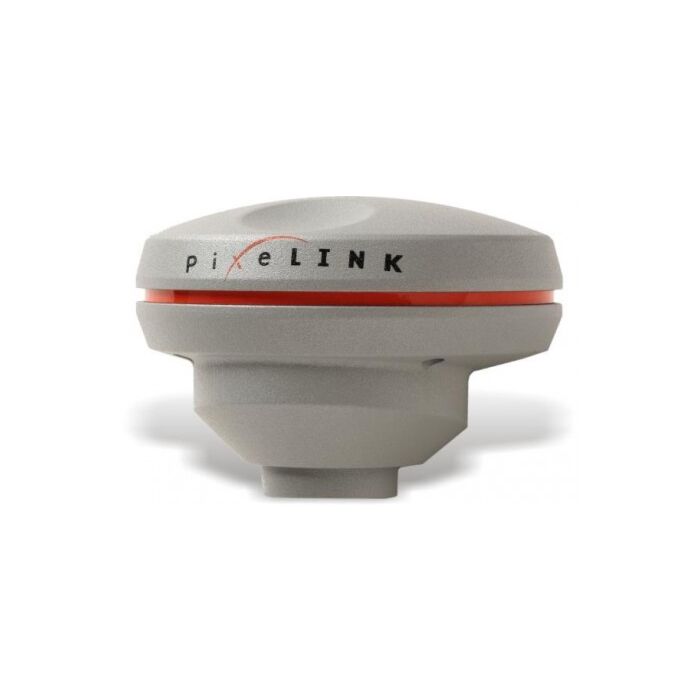

PixeLINK PL-B871 Series 1.4MP 1392x1040 Resolution Microscopy Camera/Kits (Sony ICX205)

Quick Overview

The PixeLINK PL-B871 Series of cameras feature FireWire, USB 2.0, and GigE interfaces and uses the 1/2″ format 1.45 megapixel Sony ICX205 progressive scan sensor that provides a maximum image resolution of 1392 x 1040 with a frame rate of 10 fps.


Color Space                  µScope Version                      Housing


C – Color                        KIT Essentials Version            BL – Board Level


M – Mono                      SE Standard Version                T – Trigger


NIR – Near Infrared      PRO - Professional Version      CYL - Cylindrical case


F - Firewire                     G - GigE                                  U - USB 2.0


See Specs Below For All Configurations-

Overview

The PixeLINK PL-B871 Series are designed for Microscopy applications.



Features:



  • 1.4 MP Mega Pixel (1392 x 1040)
  • Color CCD
  • Sony ICX205
  • 1/2” optical format
  • 4.65 um pixel pitch
  • 1 and 2 Megapixel resolutions
  • High dynamic range  Low noise imaging
  •


    Applications:



  • PCB & Semiconductor Inspection
  • Pathology
  • Histology
  • Live Cell Imaging
  • Petrology
  • Academic and pharmaceutical research
  • Clinical medicine
  • Microbiology
  • Genetics
  • Metallurgy
  • Embryology
  • Specifications
    Sensor Sony ICX205
    Color Space Color/Mono
    Type CMOS Rolling Shutter
    Resolution 2592(H) x 1944(V) 5.0 MP Color & Mono
    Pixel Pitch 4.4 µm-6.65 µm
    Sensor Diagnol 7.96 mm-11.2 mm
    Dynamic Range 47.5 dB



    Configurations:

             Color                                           Mono

             PL-B871CF                                 PL-B871MF
             PL-B871CF-KIT                          PL-B871MF-KIT
             PL-B871CF-PRO                        PL-B871MF-PRO
             PL-B871CU                                 PL-B871MU
             PL-B871CU-KIT                          PL_B871MU-KIT
             PL-B871 CU-PRO                       PL-B971MU-PRO
