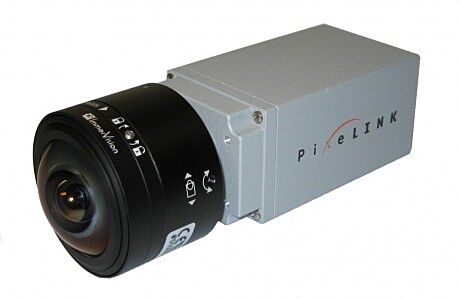

  • PixeLINK PL-B78 Series Image 1
  • PixeLINK PL-B78 Series Image 2
  • PixeLINK PL-B78 Series Image 3

PixeLINK PL-B781 & PL-B782 Series 6.6MP 2208x3000 Resolution Machine Vision Cameras (On Semi IBIS 4)

Quick Overview

The PL-B781 Monochrome and PL-B782 Color cameras provide high resolution, low noise images for outstanding value in a broad range of industrial, security and life sciences applications.


Color Space                  µScope Version                      Housing


C – Color                        KIT - Essentials Version            BL – Board Level


M – Mono                      SE - Standard Version                T – Trigger


NIR – Near Infrared      PRO - Professional Version      CYL - Cylindrical case


F - Firewire                     G - GigE                                    U - USB


See Specs Below For All Configurations-

Overview

The PL-B781/782 series of cameras are based on a Cypress CMOS progressive scan sensor with a 1” optical format.



Features:



  • Programmable LUT and FFC(Flat Field Correction)
  •     Defect pixel correction
  •     Mono 8 and Mono 16 (mono versions)
  •     Auto exposure and auto white balance
  •     Binning, Decimation and Averaging
  •     Image Flip and Image Rotate
  •     ROI (Region of Interest Readout)
  •     Saturation, sharpness and Brightness (color versions)
  •     Gain
  •     Gamma
  •     Color temperature
  •     Frame Rate control
  •


    Applications:



  • Parts Inspection
  • Metrology
  • High Resolution Document Archiving
  • Quality control
  • Security and surveillance
  • Food, Beverage & Pharmaceutical Inspection
  • Specifications





    Sensor On Semi IBIS 4
    Color Space Coor/Mono
    Type CMOS Rolling Shutter
    Resolution 2208(H) x 3000(V) Color & Mono
    Pixel Pitch 3.5 µm x 3.5 µm
    Active Area 7.73 mm x 10.5 mm - 13.1 mm diagonal
    Peak QE 25 % (mono) 24 % (color)
    FPN Mono <1 % Color <1.5 %
    PRNU Mono <2 % Color <3 %
    Dynamic Range 60 dB
    Color Data Formats Bayer 8, Bayer 16 and YUV422
    Mono Data Formats Raw, Mono 8 and Mono 16
    Dimensions 102 x 50 x 41 mm (straight) 110 x 50 x 41 mm (right angle)
    Weight Straight: 210 g - Right Angle: 264 g
    Mounting 4 M3 threaded holes in front plate & 4 M3 threaded holes in camera cas



    Configurations:

           Color                                    Mono

           PL-B782F                              PL-B781F
           PL-B782F-BL                        PL-781F-BL
           PL-B782F-R                          PL-781F-R
           PL-B782G                             PL-781G
           PL-B782G-BL                       PL-781G-BL
           PL-B782G-R                         PL-781G-R
           PL-B782U                             PL-781U
           PL-B782U-BL                       PL-781U-BL
           PL-B782U-R                         PL-781U-R
