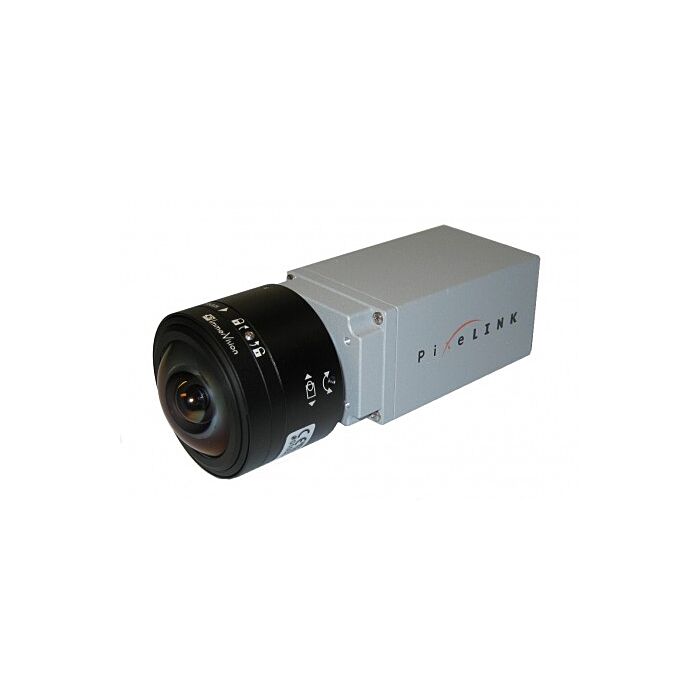

  • PixeLINK PL-B777 Series Image 1
  • PixeLINK PL-B777 Series Image 2
  • PixeLINK PL-B777 Series Image 3

PixeLINK PL-B777 Series 5.0MP 2592x1944 Resolution Machine Vision Cameras (Aptina MT9P031)

Quick Overview

The PL-B777 Series of cameras provide high resolution, low noise images for outstanding value in a broad range of industrial, security and life sciences applications.


Color Space                  µScope Version                      Housing


C – Color                        KIT Essentials Version            BL – Board Level


M – Mono                      SE Standard Version                T – Trigger


NIR – Near Infrared      PRO - Professional Version      CYL - Cylindrical case


F - Firewire                     G - GigE                                   U - USB 2.0


See Specs Below For All Configurations-

Overview

The PL-B777 series of cameras are based on a Aptina (formerly Micron) CMOS progressive scan sensor with a 1/2.5” optical format.


Features:


  • Programmable LUT and FFC(Flat Field Correction)
  • Defect pixel correction
  • Mono 8 and Mono 16 (mono versions)
  • Auto exposure and auto white balance
  • Binning, Decimation and Averaging
  • Image Flip and Image Rotate
  • ROI (Region of Interest Readout)
  • Saturation, sharpness and Brightness (color versions)
  • Gain
  • Gamma
  • Color temperature
  • Frame Rate control
  •

    Applications:


  • Quality control
  • Industrial inspection
  • Security and surveillance
  • ITS/Traffic monitoring
  • Specifications
    Sensor Aptina (formerly Micron) CMOS
    Color Space Mono
    Type CMOS Rolling Shutter
    Resolution 2592(H) x 1944(V) 5.0 MP Color & Mono
    Pixel Pitch 2.2 µm x 2.2 µm
    Active Area 5.70 mm x 4.28 mm - 7.13 mm diagonal
    Peak QE 69 % (mono) 46 % (color)
    FPN <1 %
    PRNU <2.5 %
    Mono Data Formats Raw, Mono 8 and Mono 16
    Exposure Range 100 µs to 2 seconds free running 136 µs to 2 seconds triggered
    Dimensions 102 x 50 x 41 mm (straight) 110 x 50 x 41 mm (right angle)
    Mounting 4 M3 threaded holes in front plate & 4 M3 threaded holes in camera case
    Lens Mount C & CS-Mount, 1/2.5” optical format

    Configurations:

            Mono

            PL-B777F
            PL-B777F-BL
            PL-B777F-R
            PL-B777G
            PL-B777G-BL
            PL-B777G-CS
            PL-B777G-R
            PL-B777U
            PL-B777U-BL
            PL-B777U-R
