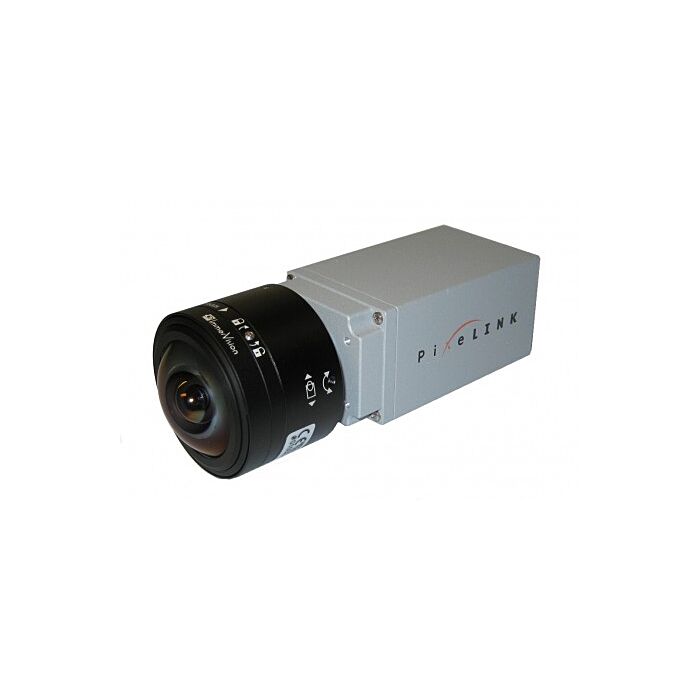

  • PixeLINK PL-B776 Series Image 1
  • PixeLINK PL-B776 Series Image 2
  • PixeLINK PL-B776 Series Image 3

PixeLINK PL-B776 Series 3.1MP 2048x1536 Resolution Machine Vision Cameras (Aptina MT9001)

Quick Overview

The PL-B776 Series are high performance 3.1 megapixel color camera designed for a broad range of industrial, security and life sciences applications.





Color Space                  µScope Version                      Housing


C – Color                        KIT - Essentials Version            BL – Board Level


M – Mono                      SE - Standard Version                T – Trigger


NIR – Near Infrared      PRO - Professional Version      CYL - Cylindrical case


F - Firewire                    G - GigE                                     U - USB 2.0


See Specs Below For All Configurations-

Overview

The PixeLINK PL-B776 Series is based on the Aptina (formerly Micron) CMOS rolling shutter progressive scan sensor with a 1/2” optical format.



Features:



  • Programmable LUT and FFC(Flat Field Correction)
  • Defect pixel correction
  • Bayer 8, Bayer 16  and YUV422(color versions)
  • Auto exposure and auto white balance
  • Binning, Decimation and Averaging
  • Image Flip and Image Rotate
  • ROI (Region of Interest Readout)
  • Saturation, sharpness and Brightness (color versions)
  • Gain
  • Gamma
  • Color temperature
  • Frame Rate control
  •


    Applications:



  • Parts Inspection
  • Biometrics
  • High Resolution Document Archiving
  • Electronics Manufacturing
  • Factory Automation
  • Food, Beverage & Pharmaceutical Inspection
  • Specifications
    Interface FireWire/USB/GigE
    Sensor Aptina M9T001
    Color Space Color
    Resolution (MP) 2048(H) x 1536(V) 3.1 MP Color
    Bit Depth 8 & 10-bit
    Pixel Pitch (µm) 3.2 µm x 3.2 µm
    FPN <1 %
    PRNU <1 %
    Dynamic Range 60dB
    Peak QE 39 % (color)
    Color Formats Bayer 8, Bayer 16 and YUV422
    Mount 4 M3 threaded holes in front plate & 4 M3 threaded holes in camera case

    Configurations:

              Color

              PL-B776F
              PL-B776F-BL
              PL-B776F-R
              PL-B776G
              PL-B776G-BL
              PL-B776G-CS
              PL-B776G-CSBL
              PL-B776G-R
              PL-B776U
              PL-B776U-BL
              PL-B776U-R
