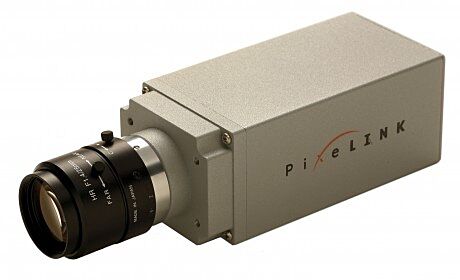

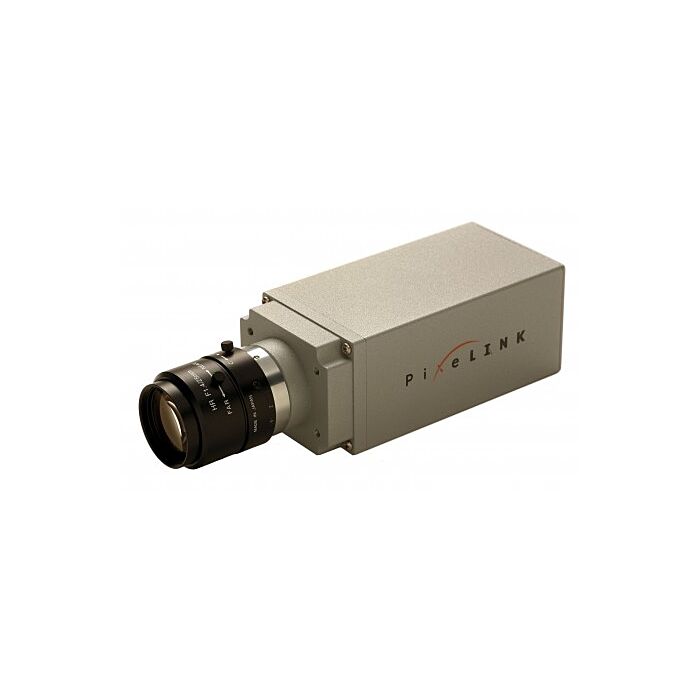

  • PixeLINK PL-B76 Series Image 1

PixeLINK PL-B76 Series 0.4MP 752x480 Resolution Machine Vision Camera Kits (Aptina MT9V032)

Quick Overview

The PL-B761 monochrome and PL-B762 color Wide VGA (752 x 480) cameras are designed specifically for industrial inspection applications.


Color Space                  µScope Version                      Housing                         Other


C – Color                        KIT Essentials Version            BL – Board Level              F-Firewire


M – Mono                      SE Standard Version                T – Trigger                        U-USB


NIR – Near Infrared      PRO - Professional Version      CYL - Cylindrical case      G-GigE


See Specs Below For All Configurations-

Overview

The PL-B76 Series are high performance Wide VGA color/monochrome camera kits designed for a broad range of industrial imaging applications.



Features:



  • Programmable LUT and FFC(Flat Field Correction)
  • Defect pixel correction
  • Mono 8 and Mono 16 (mono versions)
  • Auto exposure and auto white balance
  • Binning, Decimation and Averaging
  • Image Flip and Image Rotate
  • ROI (Region of Interest Readout)
  • Saturation, sharpness and Brightness (color versions)
  • Gain
  • Gamma
  • Color temperature
  • Frame Rate control
  •


    Applications:



  • Industrial inspection
  • Robotics
  • Scientific
  • Security and Surveillance
  • Surface inspection
  • Welding applications
  • Specifications
    Interface FireWire/USB 2.0/GigE
    Sensor Aptina MT9V032
    Color Space Color/Mono
    Resolution  752(H) x 480(V) Wide VGA Color & Mono
    Bit Depth 10-bit, 8-bit
    Pixel Pitch (µm) 6.0 µm x 6.0 µm
    Active Area 4.51 mm x 2.88 mm - 6.08 mm diagonal
    Peak QE 50 % (mono) 37 % (color)
    Responsivity
    Mono 28.1 DN/(nJ/cm ) 2 Color 17.5 DN/(nJ/cm )
    FPN <1 %
    PRNU <1.5 %
    Color Data Formats Bayer 8, Bayer 16 and YUV422
    Mono Data Formats Raw, Mono 8 and Mono 16

    Configurations:

                      Color                                     Mono

    PL-B762F                              PL-B761F
                      PL-B762F-BL                        PL-B761F-BL
                      PL-B762F-CSBL                   PL-B761F-R
                      PL-B762F-R                          PL-B761G
                      PL-B762U                             PL-B761G-BL
                      PL-762U-BL                          PL-B761G-R
                      PL-762U-R                            PL-B761U
                                                                    PL-B761U-BL
                                                                    PL-B761U-CSR
                                                                    PL-B 761U-R
