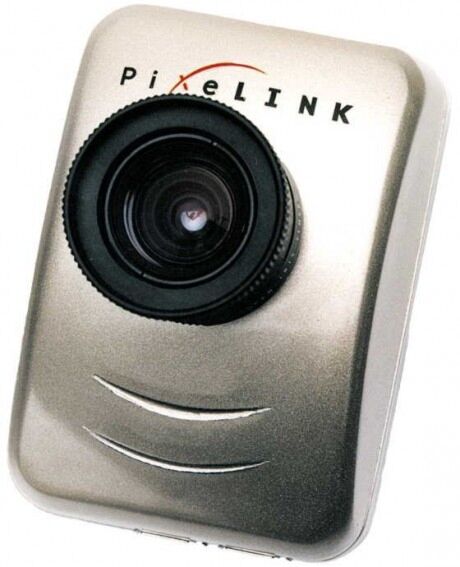

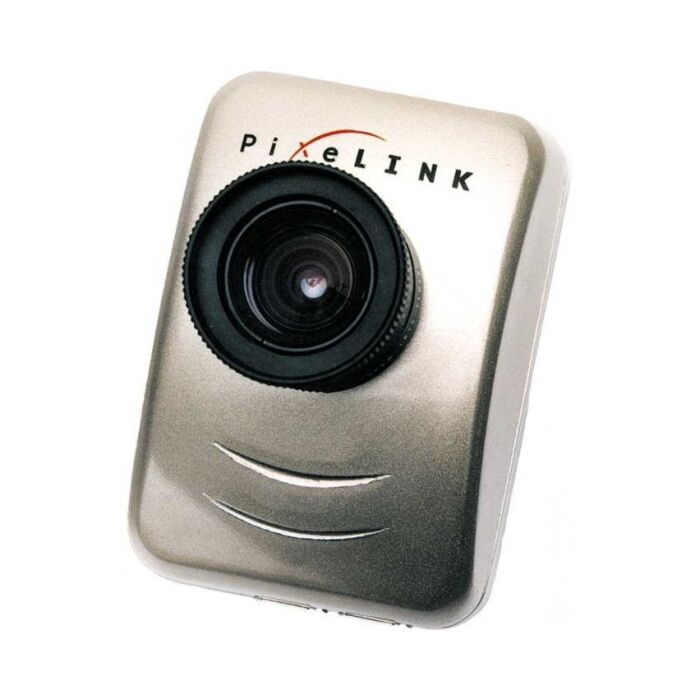

PixeLINK PL-A662 (PLA662) 1.3MP 1280x1024 Resolution Microscopy Camera Kit (Kodak KAC-1310)

*Product is discontinued, No Replacement*

The PL‐A662 series of Microscopy Cameras is a 1.3 MP sensor designed for cost efficient applications while delivery great image quality. These cameras are designed for a broad range of microscopy applications, and use the Kodak KAC‐1310 CMOS rolling shutter (progressive scan) sensor.

SKU
PixeLINK PL-A662

The PL‐A622 camera family is equipped with a standard FireWire A interface, and ships with the necessary software to connect the camera to your computer.



Features:



  • PixeLINK µScope Standard included
  • High quality Kodak sensor
  • Broad range of applications
  • Microscope mount design
  • Total camera control via software
  • C mount
  •


    Applications:



  • Machine Vision
  • Medical Imaging
  • Biometrics
  • Microscopy
  • Sensor Kodak KAC‐1310
    Type Rolling Shutter, Progressive Scan
    Pixel Pitch 6.0 µm x 6.0 µm
    FPN <1 %
    PRNU <4 %
    Dynamic Range 54 dB
    Bit Depth 8 & 10‐bit
    Active Area  7.68 mm x 6.14 mm = 9.83mm diagonal
    Color Data Format Bayer 8, Bayer 16
    Peak QE 38 % (color)
    Optical Format 1/2”
    Compliance FCC Class B, CE & RoHS
    Shock Vibration 300 G & 20 G (10Hz ‐ 2KHz)
    Operating Temp. 5°C to 60°C (non‐condensing)
    Storage Temp. 45°C to 85°
    Mono Data Formats Mono 8, Mono 12 packed and Mono 16
    Dimensions  88 x Ø54.01 (without lens mount)
    Weight (g) 218.5 (without optics))
    Mounting C-Mount
