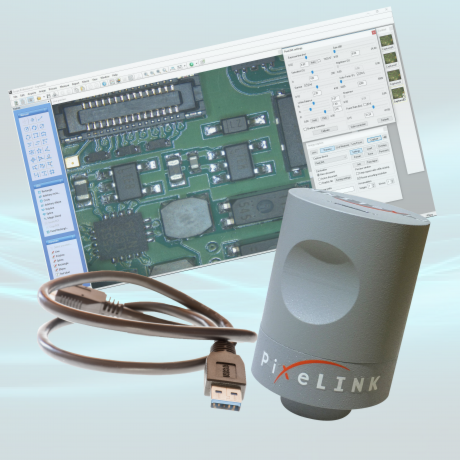

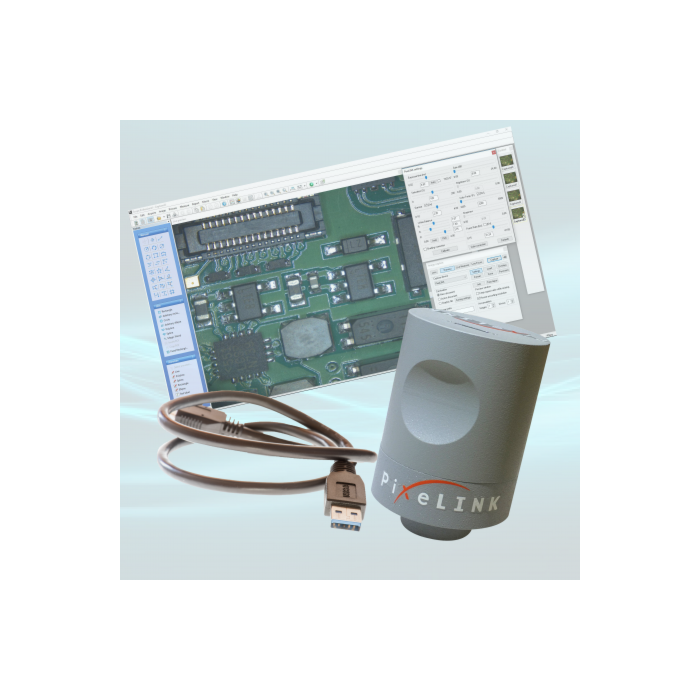

  • PixeLINK M5D Series Image 1

PixeLINK M5D Series 5.0MP 2448x2048 Resolution Microscopy Camera Kit (Sony IMX250)

Quick Overview

The M5D camera is based on a CMOS global shutter sensor with a 2/3” optical format.





M5D Series Configuration Codes


Color Space                  µScope Version                      Housing


C – Color                        KIT Essentials Version            BL – Board Level


M – Mono                      SE Standard Version                T – Trigger


NIR – Near Infrared      PRO - Professional Version      CYL - Cylindrical case


See Specs Below For Configurations:

Overview

The M5D product is available as a kit and includes the M5D microscopy camera, µScope software and a USB 3.0 locking cable



Features:



  • Great Image Quality
  • Cylindrical Housing to Fit Easily on a Microscope
  • Auto & Manual Exposure
  • Programmable LUT
  • Auto & Manual White Balance
  • Gain
  • Gamma
  • Saturation
  • Binning and Decimation
  • Image Flip & Rotate
  • Callbacks (Image Filters)
  •


    Applications:



  • Live Cell Imaging
  • Microbiology
  • Cell Analysis
  • Vision Correction
  • Packaging
  • Measurements
  • Inspection
  • Paint Analysis and Dirt Analysis
  • Specifications
    Sensor Sony IMX250
    Type CMOS Global Shutter
    Resolution 5.01 MP (2448 x 2048)
    Pixel Pitch 3.45 µm x 3.45 µm
    Active Area  11.1 mm diagonal
    Peak QE 90% @525nm
    FPN 0.03 % of signal
    PRNU 4% of signal
    Dynamic Range 70 dB
    Bit Depth 8 or 10-bit
    Color Data Formats Bayer 8, Bayer 16 and YUV4226
    Mono Data Formats Mono 8, Mono 12 packed and Mono 16
    Dimensions  88 x Ø54.01 (without lens mount)
    Weight (g) 218.5 (without optics))
    Mounting C-Mount



    Configurations:

    Color

    Mono

    M5DC-ES
    M5DC-KIT-CYL
    M5DC-PRO-CYL
    M5DC-SE
    M5DC-SE-CYL
    M5DC-PRO



    M5DM-ES
    M5DM-KIT-CYL
    M5DM-PRO-CYL
    M5DM-SE
    M5DM-SE-CYL
    M5DM-PRO
