  • PixeLINK M4 Series  Image 1

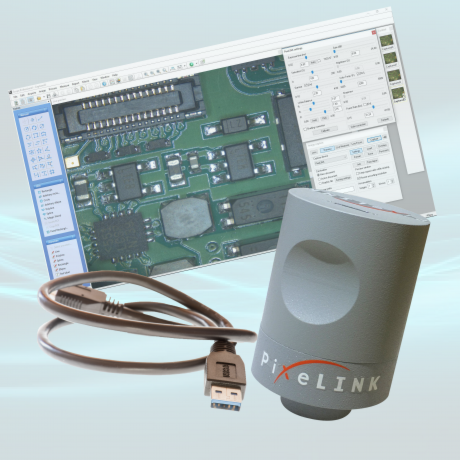

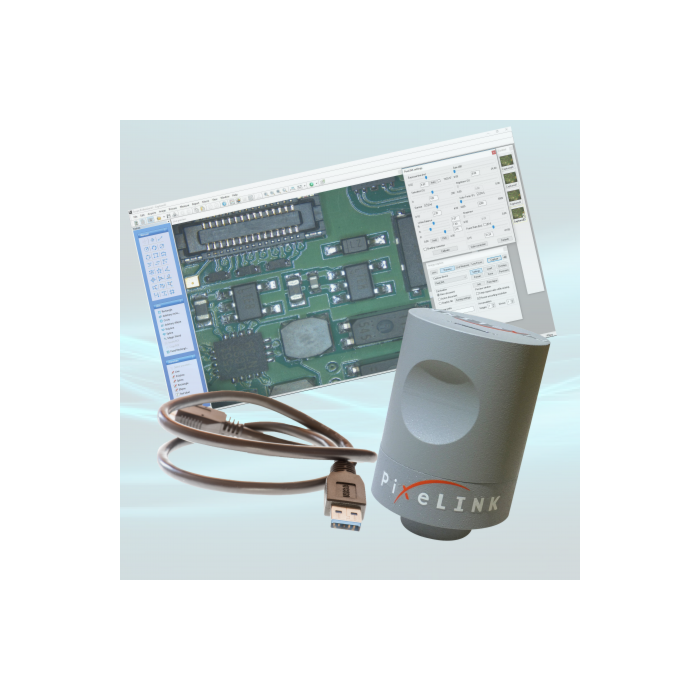

PixeLINK M4 Series 4.2 MP 2048x2048 Microscopy Camera Kit (CMOSIS CMV4000)

Quick Overview

The M4 camera is based on a CMOS global shutter sensor with a 1” optical format.





M4 Series Configuration Codes


Color Space                  µScope Version                      Housing


C – Color                        KIT Essentials Version            BL – Board Level


M – Mono                      SE Standard Version                T – Trigger


NIR – Near Infrared      PRO - Professional Version      CYL - Cylindrical case


See Specs Below For Series Configurations:

Overview

The M4 product is available as a kit and includes the M4 microscopy camera, µScope software and a USB 3.0 locking cable.



Features:



  • Great Image Quality
  • Cylindrical Housing to Fit Easily on a Microscope
  • Auto & Manual Exposure
  • Programmable LUT
  • Auto & Manual White Balance
  • Gain
  • Gamma
  • Saturation
  • Binning and Decimation
  • Image Flip & Rotate
  • Callbacks (Image Filters)
  •


    Applications:



  • Live Cell Imaging
  • Microbiology
  • Cell Analysis
  • Vision Correction
  • Packaging
  • Measurements
  • Inspection
  • Paint Analysis and Dirt Analysis
  • Specifications
    Sensor CMOSIS CMV4000
    Type CMOS Global Shutter
    Resolution 4.2 MP (2048 x 2048)
    Pixel Pitch 5.5 µm x 5.5 µm
    Active Area  15.93 mm diagonal
    Peak QE 63%
    FPN <1 % of signal
    PRNU <2% of signal
    Dynamic Range 60 dB
    Bit Depth 8 or 10-bit
    Color Data Formats Bayer 8, Bayer 16, and YUV422
    Dimensions  88 x Ø54.01 (without lens mount)
    Weight (g) 218.5 (without optics))
    Mounting C-Mount



    Configurations:

    Color

    Mono

    M4C-KIT-CYL
    M4C-SE-CYL
    M4C-PRO-CYL



    M4M-KIT-CYL
    M4M-SE-CYL
    M4M-PRO-CYL
