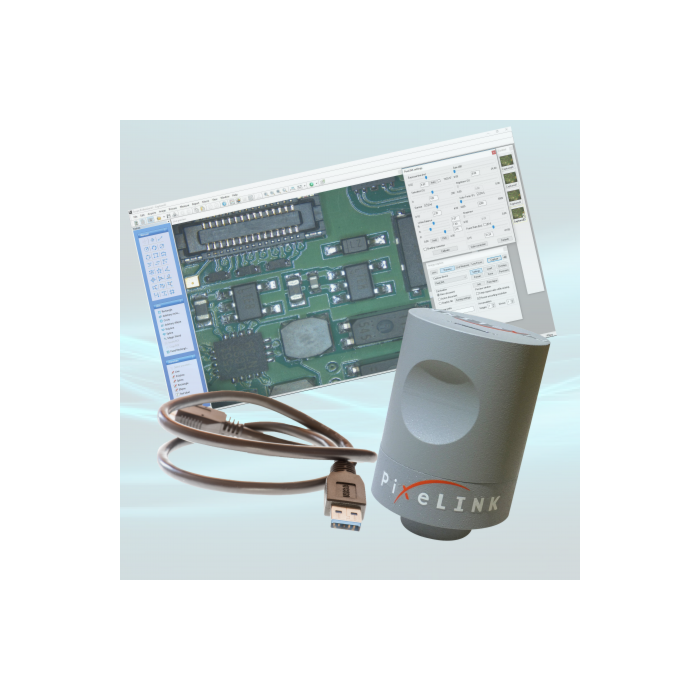

  • PixeLINK M2 Series Image 1

PixeLINK M2 Series 2.2MP 2048x1088 Resolution Microscopy Camera Kit (CMOSIS CMV2000)

Quick Overview

The M2 product is available as a kit and includes the M2 microscopy camera, µScope software and a USB 3.0 locking cable.





M2 Series Configuration Codes


Color Space                  µScope Version                      Housing


C – Color                        KIT Essentials Version            BL – Board Level


M – Mono                      SE Standard Version                T – Trigger


NIR – Near Infrared      PRO - Professional Version      CYL - Cylindrical case


See Specs Below for Series Configurations:

Overview

The M2 camera is based on a CMOS global shutter sensor with a 2/3” optical format.



Features:



  • Great Image Quality
  • Cylindrical Housing to Fit Easily on a Microscope
  • Auto & Manual Exposure
  • Programmable LUT
  • Auto & Manual White Balance
  • Gain
  • Gamma
  • Saturation
  • Binning and Decimation
  • Image Flip & Rotate
  • Callbacks (Image Filters)
  •


    Applications:



  • Live Cell Imaging
  • Microbiology
  • Cell Analysis
  • Vision Correction
  • Packaging
  • Measurements
  • Inspection
  • Paint Analysis and Dirt Analysis
  • Specifications
    Sensor CMOSIS CMV2000
    Type CMOS Global Shutter
    Resolution 2.2 MP (2048 x 1088)
    Pixel Pitch 5.5 µm x 5.5 µm
    Active Area  12.75 mm diagonal
    FPN <1 % of signal
    PRNU <2% of signal
    Dynamic Range 60 dB
    Bit Depth 8 or 10-bit
    Color Data Formats Bayer 8, Bayer 16 and YUV422
    Dimensions  88 x Ø54.01 (without lens mount)
    Weight (g) 218.5 (without optics)
    Mounting C-Mount



    Configurations:

    Color

     Mono


    M2C-KIT-CYL
    M2C-SE-CYL
    M2C-PRO-CYL





    M2M-KIT-CYL
    M2M-SE-CYL
    M2M-PRO-CYL
