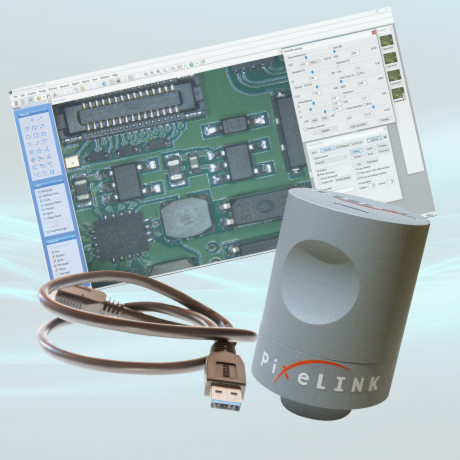

  • PixeLINK M15 Series 15MP Image 1

PixeLINK M15 Series 15MP 4608x3288 Resolution Microscopy Kit (On Semi MT9F002)

Quick Overview

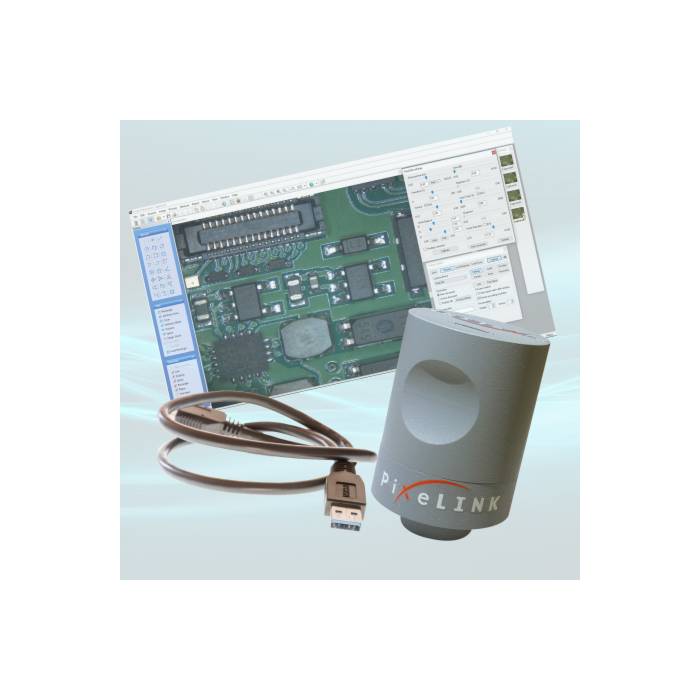

The M15 product is available as a kit and includes the M5 microscopy camera, µScope software and a USB 3.0 locking cable.


M15 Series Configuration Codes


Color Space                  µScope Version                      Housing


C – Color                        KIT Essentials Version            BL – Board Level


M – Mono                      SE Standard Version                T – Trigger


NIR – Near Infrared      PRO - Professional Version      CYL - Cylindrical case


See Specs Below For Series Configurations:

Overview

The M15 camera is based on a CMOS rolling shutter sensor with a 1/2.2” optical format.



Features:



  • Great Image Quality
  • Cylindrical Housing to Fit Easily on a Microscope
  • Auto & Manual Exposure
  • Programmable LUT
  • Auto & Manual White Balance
  • Gain
  • Gamma
  • Saturation
  • Binning and Decimation
  • Image Flip & Rotate
  • Callbacks (Image Filters)
  •


    Applications:



  • Live Cell Imaging
  • Microbiology
  • Cell Analysis
  • Vision Correction
  • Packaging
  • Measurements
  • Inspection
  • Paint Analysis and Dirt Analysis
  • Specifications
    Sensor On Semi MT9F002
    Type CMOS Global Shutter
    Resolution 15 MP (4608 x 3288)
    Pixel Pitch 1.4 µm x 1.4 µm
    Active Area  7.87 mm diagonal
    FPN <1 % of signal
    PRNU <2% of signal
    Dynamic Range 60.5 dB
    Bit Depth 8 or 12-bit
    Color Data Formats Bayer 8, Bayer 16 and YUV4226
    Dimensions  88 x Ø54.01 (without lens mount)
    Weight (g) 218.5 (without optics))
    Mounting C-Mount



    Configurations:

    Color



    M15C-KIT-CYL
    M15C-SE-CYL
    M15C-PRO-CYL
