  • PixeLINK M12 Series Image 1

PixeLINK M12 Series 12.0 MP 4096x3000 Resolution Microscopy Kit (Sony IMX253)

Quick Overview

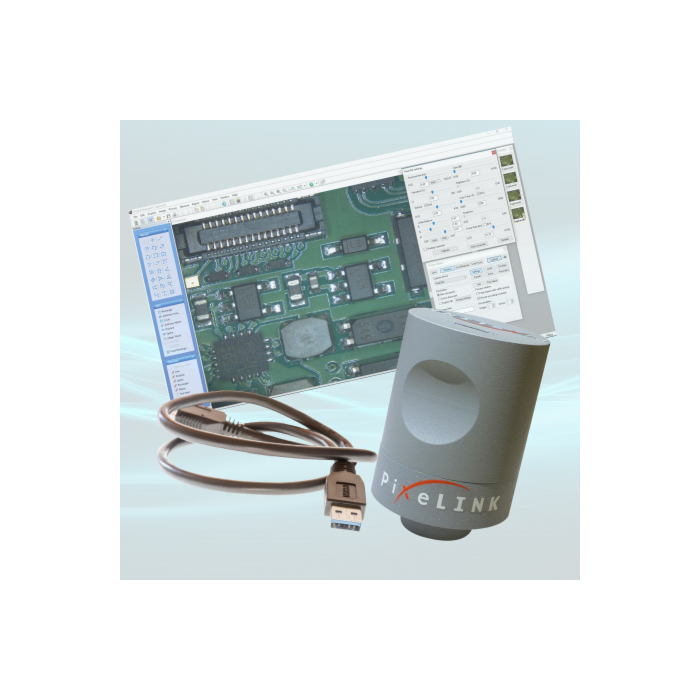

The M12 Series of product is available as a kit and includes the M12 microscopy camera, µScope software and a USB 3.0 locking cable.


M12 Series Configuration Codes


Color Space                         µScope Version                             Housing


C – Color                               KIT Essentials Version                     BL – Board Level


M – Mono                              SE Standard Version                        T – Trigger


NIR – Near Infrared              PRO - Professional Version              CYL - Cylindrical case

Overview

The M12 Series are microscopy camera kits, featuring USB3.0, 4096x3000 Resolution, µScope software and a USB 3.0 locking cable.



Features:



  • Great Image Quality
  • Cylindrical Housing to Fit Easily on a Microscope
  • Auto & Manual Exposure
  • Programmable LUT
  • Auto & Manual White Balance
  • Gain
  • Gamma
  • Saturation
  • Binning and Decimation
  • Image Flip & Rotate
  • Callbacks (Image Filters)
  •


    Applications:



  • Live Cell Imaging
  • Microbiology
  • Cell Analysis
  • Vision Correction
  • Packaging
  • Measurements
  • Inspection
  • Paint Analysis and Dirt Analysis
  • Specifications
    Sensor Sony IMX253
    Type CMOS Global Shutter
    Resolution 17.6 MP (4096 x 3000)
    Pixel Pitch 3.45 µm x 3.45 µm
    Active Area  17.6 mm diagonal
    Peak QE 66% @ 525nm
    FPN 0.03%
    PRNU 0.4
    Dynamic Range 69.5 dB
    Bit Depth 10 or 12-bit
    Color Data Formats YUV422, Bayer 8, Bayer 12 packed and Bayer 16
    Mono Data Formats Mono 8, mono 12 packed and Mono 16
    Dimensions  88 x Ø54.01 (without lens mount
    Weight (g) 218.5 (without optics)
    Mounting C-Mount



    Configurations:

    Color

    Mono

    M12C-KIT-CYL
    M12C-SE-CYL
    M12C-PRO-CYL



    M12M-KIT-CYL
    M12M-SE-CYL
    M12M-PRO-CYL
