  • PixeLINK M1 Series Image 1

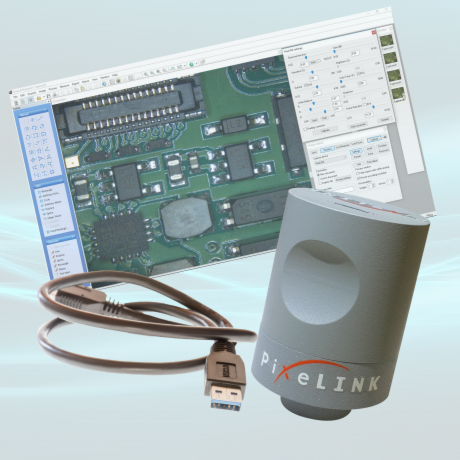

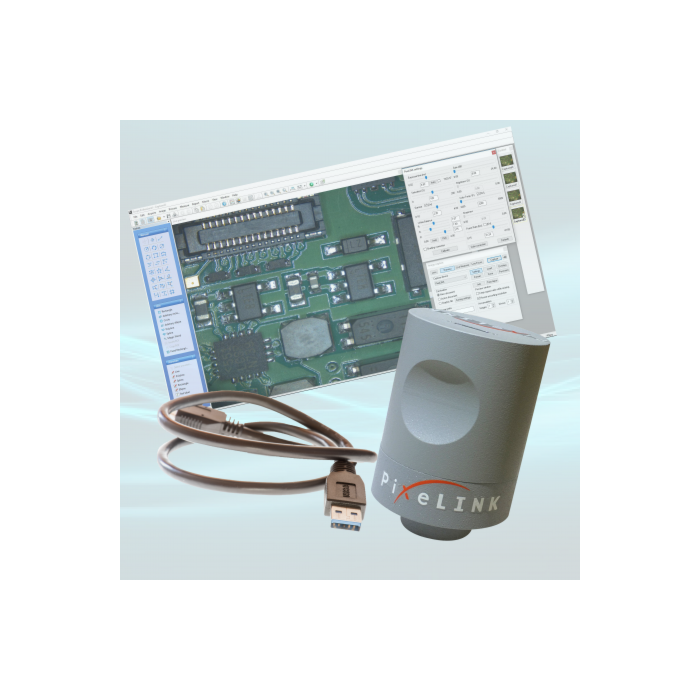

PixeLINK M1 Series 1.3 MP 1280x1024 Resolution Microscopy Camera Kit (Aptina MT9F002)

Quick Overview

The M1 camera is based on a CMOS global shutter sensor with a 1/2” optical format.





M1 Series Configuration Codes


Color Space                  µScope Version                      Housing


C – Color                        KIT Essentials Version            BL – Board Level


M – Mono                      SE Standard Version                T – Trigger


NIR – Near Infrared      PRO - Professional Version      CYL - Cylindrical case


See Specs Below For Configurations:

Overview

The M1 product is available as a kit and includes the M1 microscopy camera, µScope software and a USB 3.0 locking cable.



Features:



  • Great Image Quality
  • Cylindrical Housing to Fit Easily on a Microscope
  • Auto & Manual Exposure
  • Programmable LUT
  • Auto & Manual White Balance
  • Gain
  • Gamma
  • Saturation
  • Binning and Decimation
  • Image Flip & Rotate
  • Callbacks (Image Filters)
  •


    Applications:



  • Live Cell Imaging
  • Microbiology
  • Cell Analysis
  • Vision Correction
  • Packaging Measurements
  • Inspection Paint Analysis and Dirt Analysis
  • Specifications
    Sensor On Semi MT9F002
    Type CMOS Rolling Shutter
    Resolution 15 MP (4608 x 3288)
    Pixel Pitch 1.4 µm x 1.4 µm
    Active Area 7.87 mm diagonal
    FNU <1 % of signal
    PRNU <2% of signa
    Dynamic Range 60.5 dB
    Bit Depth 8 or 12-bit
    Color Data Formats Bayer 8, Bayer 16 and YUV422
    Dimensions 88 x Ø54.01 (without lens mount)
    Weight 218.5 (without optics)
    Mount C-Mount



    Configurations:

    Color



    M15C-KIT-CYL
    M15C-SE-CYL
    M15C-PRO-CYL
