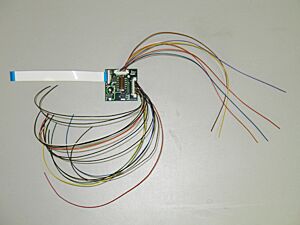

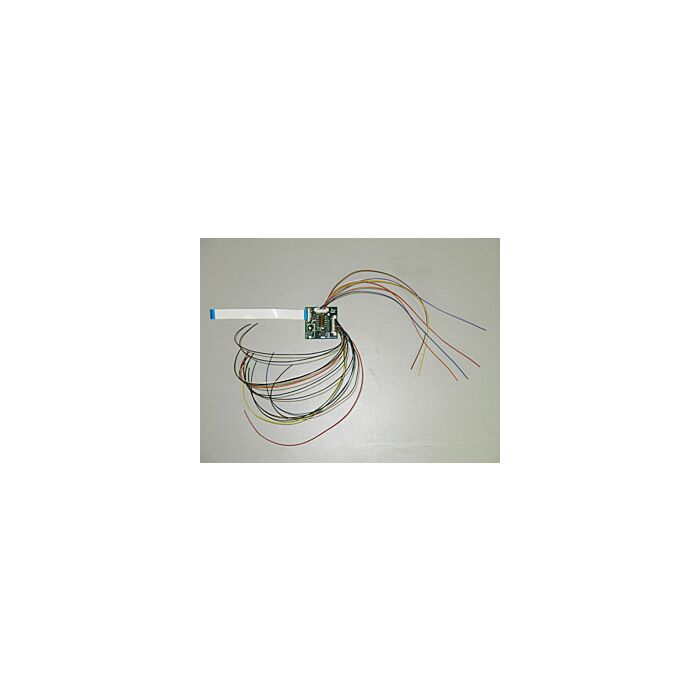

Aegis IFBEX232HD Interface Board for the Panasonic GP-MH310
NOTE: Composite Video & YIC Video only operate in Standard Definition Mode, also HD Component Video only operates in High Definition Mode, which is selectable by communications and requires a hard reset.
SKU
IFBEX232HD-1
Connector and Pin Assignment
|
CN-1 (24-pin Power, VBS, YIC, HD Component, and Communication Board) |
||
|
Pin#
|
Name
|
Level
|
|
1
|
GND (for TxD, RxD, & Reset-In)
|
|
|
2
|
TxD
|
CMOS 5V (Low: Max 0.1V) (High: Min 2.4V) Send Data
|
|
3
|
RxD
|
CMOS 5V (Low: Max 0.8V) (High: Min 2.OV) Read Data
|
|
4
|
Reset-In
|
Reset (Low: GND), Normal (High: 3.OV, OPEN
|
|
5
|
GND (for Y Signal)
|
|
|
6
|
Y Out
|
|
|
7
|
GND (for C Signal)
|
|
|
8
|
C Out
|
|
|
9
|
GND (for VBS Out)
|
|
|
10
|
VBS Out
|
|
|
11
|
GND (for HD Y Out)
|
|
|
12
|
HD Y Out
|
|
|
13
|
GND (for HD PB Out)
|
|
|
14
|
HD PB Out
|
|
|
15
|
GND (for HD PR Out)
|
|
|
16
|
HD PR Out
|
|
|
17
|
GND (for DC IN)
|
|
|
18
|
DC IN
|
9.0V i3V
|
|
19
|
DC IN
|
9.0V i3V
|
|
20
|
DC IN
|
9.0V i3V
|
|
21
|
DC IN
|
9.0V i3V
|
|
22
|
GND (for DC IN)
|
|
|
23
|
DC IN
|
9.0V i3V
|
|
24
|
GND (for DC IN)
|
|
Supplied Cable: 24-pin, 0.5mm pitch FFC Cable. Length 3 inches (76.2mrn)
|
CN-3 (DC, VBS, YIC, and HD Component) |
|||
|
Pin#
|
Name
|
Level
|
Wire Color
|
|
1
|
DC IN
|
6V - 12V
|
Brown
|
|
2
|
GND (for DC IN)
|
Black
|
|
|
3
|
VBS Out
|
Composite Video Out
|
Yellow
|
|
4
|
GND (for VBS Out)
|
Black
|
|
|
5
|
Y Out
|
Orange
|
|
|
6
|
GND (for Y Signal)
|
Black
|
|
|
7
|
C Out
|
White
|
|
|
8
|
GND (for C Signal)
|
Black
|
|
|
9
|
HD Y Out
|
Green
|
|
|
10
|
GND (for HD Y Out)
|
Black
|
|
|
11
|
HD PB Out
|
Blue
|
|
|
12
|
GND (for HD PB Out)
|
Black
|
|
|
13
|
HD PR Out
|
Red
|
|
|
14
|
GND (for HD PR Out)
|
Black
|
|
|
15
|
NC
|
Violet
|
|
Supplied Cable: 15-pin harness cables with one Molex 1.25mm pitch eonneetor. Length 12 inches (304.8mm)
|
CN-4 (Communication connector |
|||
|
Pin#
|
Name
|
Level
|
Wire Color
|
|
1
|
TxD IN
|
RS-232C Level
|
Brown
|
|
2
|
Txd In A
|
RS-4221185
|
Red
|
|
3
|
Txd In B
|
RS-4221185
|
Orange
|
|
4
|
RxD IN
|
RS-232C Level
|
Yellow
|
|
5
|
TD
|
TTL Level
|
Green
|
|
6
|
Rxd In Y
|
RS-42Ur85
|
Blue
|
|
7
|
Rxd In Z
|
RS-4221135
|
Violet
|
|
8
|
RD
|
TTL Level
|
Gray
|
|
9
|
GND
|
White
|
|
|
10
|
NC
|
Black
|
|
Supplied Cable: 10-pin harness cables with one Molex 1.25mm pitch connector. Length 12 inches (304.8mm)
