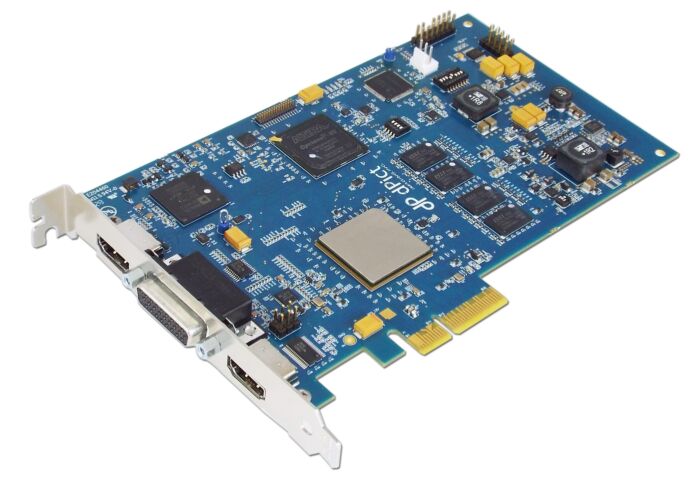

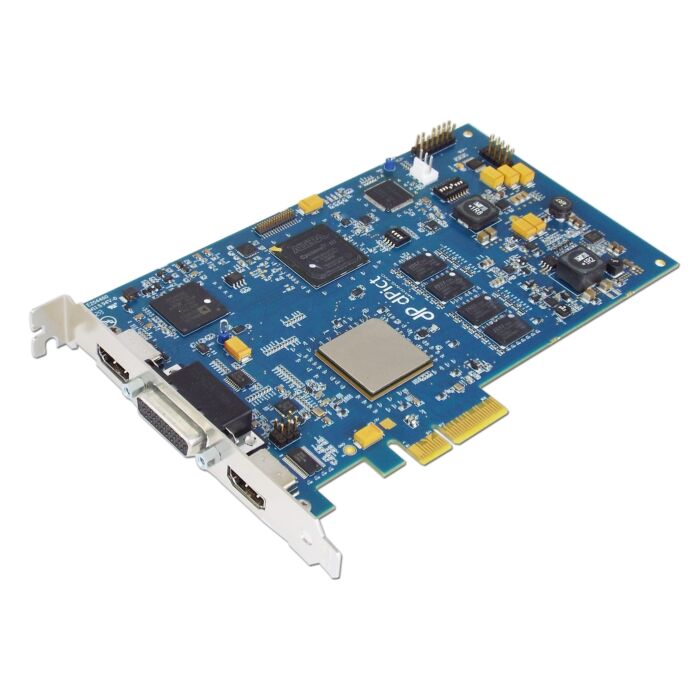

Nexeon HDI PCI Express Video Frame Grabber Board

Quick Overview

Up to 1 GB/sec data transfer, Standard or high-definition, HDTV standard support up to 1080p60.
Overview

Nexeon HDI is a full-featured video streaming and capture board for standard and high-definition video inputs. Nexeon HDI supports analog RGB/YCrCb component, S-Video and composite analog inputs as well as digital DVI/HDMI inputs up to 1080p60. Nexeon HDI comes equipped with an integrated Video Processor and plenty of memory for fast and reliable video data transfer to system or display memory.

Features:

  • PCI Express 2.0 interface
  • Bus-mastering video acquisition
  • RGB/YCrCb component, S-Video or Composite video input support
  • HDTV support up to 1080p60
  • DVI and HDMI input support
  • Real-time hardware video CODEC
  • H.264, MPEG 4, and MJPEG compression
  • Simultaneous real-time transfer of video to system memory
  • TI DM8168 Digital Media Processor
  • 1 GB SDRAM Frame Buffer
  • Acquisition rates up to 165 MHz
  • Video scaling to arbitrarily sized windows
  • RGB, YUV, or monochrome pixel formats
  • Progressive scan video support
  • General purpose I/O triggers
  • Packed or planar transfers
  • Area of interest transfers to system and on-board memory
  • On-board micro-controller for robust timing and capture control
  • HDMI video output
  • 12-volt DC fused output for camera supply
  • Real-time image processing
  • Windows® 8, 7, Vista and XP drivers
  • Includes dPiction Windows®-based video capture application
  • Optional SDK with sample applications
  • Specifications
    Form Factor
    PCI Express 2.0 x4 connector
    Up to 1 GB/sec data transfer
    Video Inputs
    Standard or high-definition
    RGB/YCRCB component, S-Video, and composite
    VGA or HDMI Input support
    HD Video Acquistion
    Up to 165 Mhz aqusition rates
    Progressive scan video support
    HDTV standard support up to 1080p60
    Supports VGA display capture up to 1600x1200 @60 Hz
    SD Video Acquisition
    NTSC (J,M, 4.43), PAL (B,D,G,H,I,M,N,Nc,60) and SECAM (B,D,G,K,K1,L) support
    High-quality 10-bit digitization
    Square-pixel and CCIR-601 resolution support
    Video Processing And Formatting
     Real time onboard video CODEC
    H.264, MPEG, and MJPEG compression and playback
    Simultaneous viewing and capture of standard definition and HDTV video inputs
    Video scaling to randomly-sized windows
    1 GB DDR3 SDRAM frame buffer
    RGB 32/24/16/15/8, YUV 4:4:4 and YUV 4:2:2 pixel formats
    Area of interest transfers to on-board and system memory
    On-board image processing
    I/O Triggers And Control
    4 general-purpose I/O triggers programmable between input and output
    Automatic display mode and sync detection
    Audio Recording And Playback
    Real-time recording of analog or digital audio
    HDMI and Line Level In/Out
    Physical And Environmental
    6.875" (length) x 4.20" (height)
    HD-26 Female I/O connector
    2 HDMI display connector
    Operating temperature: 0° C to 70° C
    Relative Humidity: 5% up to 95% non-condensing
    Available Software Developers Kit
    Compatible with dVeloper Foundation SDK
    Supports 32/64-bit Windows 8, 7 and XP
    Extensive documentation and sample code
    dPiction Windows-based capture application
    Sample applications with source code
