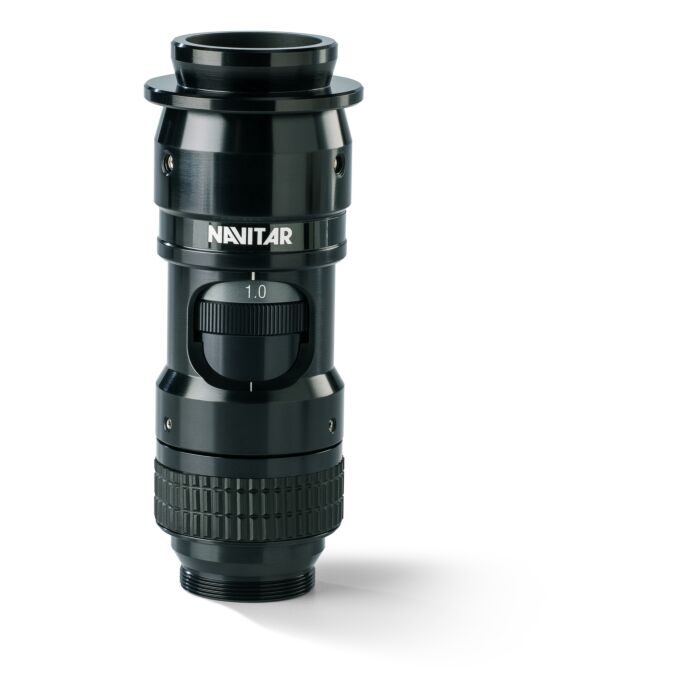

Navitar High Magnification Industrial Camera Zoom Lenses Zoom 6000

Quick Overview

Zoom 6000 Field of View Matrix (in mm at nominal W.D.)
Overview



Lens
Attach.
W.D. Camera
Format/
Parameters
.5X
Adapter
.67X
Adapter
1X
Adapter
2X
Adapter
5X
Adapter
Low-High Low-High Low-High Low-High Low-High
0.25X
0.018 N.A.
1-6044

356
(nominal)

220-390
(1) W.D. range

Mag. 0.09X-0.56X 0.12X-0.75X 0.18X-1.13X 0.35X-2.25X 0.88X-5.62X
Field 1/4" 45.70-7.12 34.03-5.33 22.85-3.56 11.42-1.78 4.54-0.72
Field 1/3" 68.64-10.64 51.12-8.04 34.32-5.32 17.16-2.66 6.88-1.08
Field 1/2" 91.36-14.16 68.06-10.66 45.68-7.08 22.84-3.54 9.12-1.44
Field 2/3" 125.68-19.52 93.62-14.66 62.84-9.76 31.42-4.88 12.56-1.96
0.5X
0.035 N.A.
1-60110

175
(nominal)

143-187
(1) W.D. range

Mag. 0.18X-1.13X 0.24X-1.50X 0.35X-2.25X 0.70X-4.50X 1.75X-11.25X
Field 1/4" 22.85-3.56 17.02-2.66 11.42-1.78 5.71-0.89 2.28-0.36
Field 1/3" 34.32-5.32 25.56-4.0 17.16-2.67 8.58-1.33 3.43-0.53
Field 1/2" 45.68-7.08 34.03-5.33 22.85-3.56 11.42-1.77 4.57-0.71
Field 2/3" 62.84-9.76 46.81-7.33 31.43-4.89 15.71-2.44 6.29-0.98
0.75X
0.054 N.A.
1-60111

113
(nominal)

100-119
(1) W.D. range

Mag. 0.27X-1.69X 0.35X-2.25X 0.53X-3.38X 1.05X-6.75X 2.63X-16.88X
Field 1/4" 15.22-2.38 11.34-1.78 7.61-1.19 3.81-0.59 1.52-0.24
Field 1/3" 22.86-3.56 17.04-2.67 11.43-1.78 5.72-0.89 2.29-0.35
Field 1/2" 30.46-4.74 22.69-3.56 15.23-2.37 7.62-1.19 3.05-0.47
Field 2/3" 41.90-6.52 31.21-4.89 20.95-3.26 10.48-1.63 4.19-0.65
NONE
0.071 N.A.

92
(nominal)

81-93
(1) W.D. range

Mag. 0.35X-2.25X 0.47X-3.00X

0.70X-4.50X

1.40X-9.00X 3.50X-22.50X
Field 1/4" 11.42-1.78 8.51-1.33 5.71-0.89 2.86-0.45 1.14-0.18
Field 1/3" 17.16-2.67 12.77-2.01 8.58-1.33 4.29-0.67 1.72-0.27
Field 1/2" 22.85-3.56 17.01-2.67 11.42-1.77 5.71-0.89 2.28-0.36
Field 2/3" 31.43-4.89 23.40-3.65 15.71-2.44 7.86-1.22 3.14-0.49
1.5X
0.104 N.A.
1-60112

51
(nominal)

48-52
(1) W.D. range

Mag. 0.53X-3.38X 0.71X-4.50X 1.05X-6.75X 2.10X-13.50X 5.25X-33.75X
Field 1/4" 7.61-1.19 5.67-0.89 3.81-0.59 1.91-0.30 0.76-0.12
Field 1/3" 11.43-1.78 8.52-1.33 5.72-0.89 2.86-0.44 1.14-0.18
Field 1/2" 15.23-2.37 11.34-1.77 7.62-1.19 3.81-0.59 1.52-0.24
Field 2/3" 20.95-3.26 15.60-2.44 10.48-1.63 5.24-0.81 2.10-0.33
2.0X
0.141 N.A.
1-60113

36
(nominal)

34-37
(1) W.D. range

Mag. 0.70X-4.50X 0.94X-6.00X 1.40X-9.00X 2.80X-18.00X 7.00X-45.00X
Field 1/4" 5.71-0.89 4.26-0.67 2.86-0.45 1.43-0.23 0.57-0.09
Field 1/3" 8.58-1.33 6.39-1.00 4.29-0.67 2.15-0.33 0.86-0.13
Field 1/2" 11.42-1.77 8.51-1.33 5.71-0.89 2.86-0.44 1.14-0.18
Field 2/3" 15.71-2.44 11.70-1.83 7.86-1.22 3.93-0.61 1.57-0.24
NOTE: The above fields of view are measured diagonally in millimeters (Horizontal = Diagonal x 0.8 and Vertical = Diagonal x 0.6).
(1) Working distance range when using 12 mm fine focus. Field of view will change with longer or shorter working distances.
