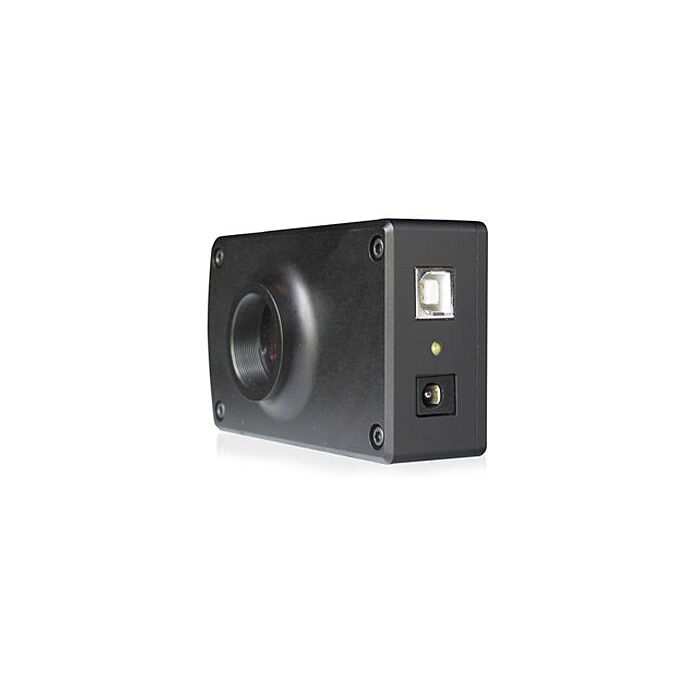

Lumenera LU375 / LU370 Color USB Camera

Quick Overview

2080 pixels x 1536p (3.1MP), 1/2" PS CMOS, 12 fps, USB 2.0 Camera.

Available Versions:
Color-Cased (LU370C)
Color-Board Level (LU370C)
Overview

Lumenera’s Lu375 series of enclosed multi-megapixel cameras is designed for use in a wide variety of industrial and security applications requiring high resolution and modest cost. With 2048 x 1536 resolution and on-board processing these cameras deliver outstanding image quality and value.

Uncompressed images in live streaming video and still image capture are provided across a USB 2.0 digital interface. Advanced camera control is available through a complete SDK, with sample code available to quickly integrate camera functions.

Features:

  • 3.1 megapixel, color, progressive scan sensor
  • Low noise CMOS technology
  • 12 fps at full 2048 x 1536 resolution, 20 fps at 1600 x 1200 (sub-window)
  • Auto white balance and auto exposure
  • Snapshot mode for use with strobe
  • GPI/O for control of peripherals and synchronization of lighting (4in/4out)

  • Ordering Options:

  • Lu375C — Enclosed Color Camera
  • Lu370C — Board Level Color Camera Module
  • LuSDK — Software Developer’s Kit
  • Specifications
    Image Sensor Micron MT9T001 CMOS sensor, 1/2” format, color, 6.5mm x 4.9mm array
    Effective Pixels 2048 x 1536, 3.2um square pixels
    Frame Rate 12 fps at 2048 x 1536, 20 fps at 1024 x 768 (sub-sampled)
    Sensitivity High
    Dynamic Range 60dB
    Exposure Automatic / Manual
    White Balance Automatic / Manual
    Dimensions (W x H x D) 2.25 x 3.85 x 1.56 inches (enclosed)
    2.00 x 2.50 x 1.63 inches (board level)
    Mass TBD
    Power Requirement USB bus power, or external 6VDC, 500mA
    Power Consumption ~3.0 W
    Operating Temperature 0°C to +50°C
    Operating Humidity 5% - 95%, Non-condensing
    Interface Connector Standard USB
    Lens Mount C-Mount (CS-Mount option)
