  • Lumenera LU070 VGA USB 2.0 OEM Camera Module

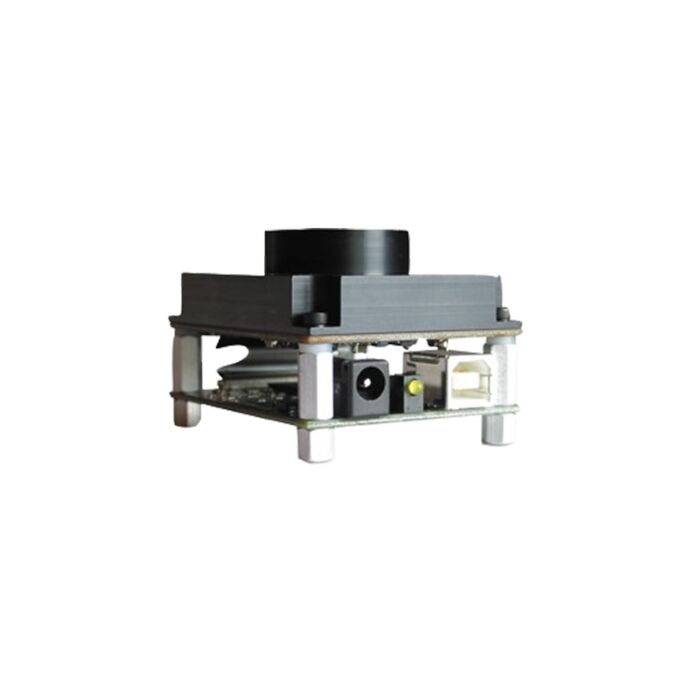

Lumenera LU070 VGA USB 2.0 OEM Camera Module

Quick Overview

640 x 480 Effective Pixels, 1/2" PS CCD, 60 fps, USB 2.0 Camera. Available Versions: Color-Board Level (LU070C) Monochrome-Board Level (LU070M)
Overview

Lumenera’s Lu070 series of board level cameras is designed for use in a wide variety of industrial and scientific OEM applications, particularly those with low light conditions.

With 640x480 resolution, on-board processing and global electronic shutter, these cameras deliver outstanding image quality and value. Uncompressed images in live streaming video and still image capture are provided across a USB 2.0 digital interface. Advanced camera control is available through a complete SDK, with sample code available to quickly integrate camera functions.

Features:

  • Global electronic shutter for capturing objects in high-speed motion
  • Excellent sensitivity
  • Color or monochrome, interline, progressive scan, 640x480 resolution
  • 60 fps at full 640x480, 100+fps at 320x240 (binning mode)
  • Auto white balance & s/w adjustable exposure

  • Applications:
  • Industrial
  • Inspection
  • Scientific Studies
  • Specifications
    Image Sensor Sony Super HAD CCD sensor, color/mono, 1/3” format, 4.7 x 3.6 mm array
    Effective Pixels 640x480, 7.4μm square pixels
    Frame Rate 60 fps at 640x480, 100+ fps 320x240 (binning)
    Sensitivity High
    Dynamic Range 60dB
    Exposure Auto / Manual
    White Balance Auto / Manual
    Dimensions (WxHxD) 2.00x2.50x1.63 inches (board level)
    2.25x3.85x1.56 inches (enclosed)
    Mass ~150g / 300g with enclosure
    Power Requirement External 6VDC, 700mA
    Power Consumption ~4 Watts
    Operating Temperature 0°C to +50°C
    Operating Humidity 0%–95%, Non-condensing
    Interface Connector Standard USB cable
    Lens Mount (Lens not included) C-Mount, (CS-Mount option)
    No Video available
    Lumenera LU070
