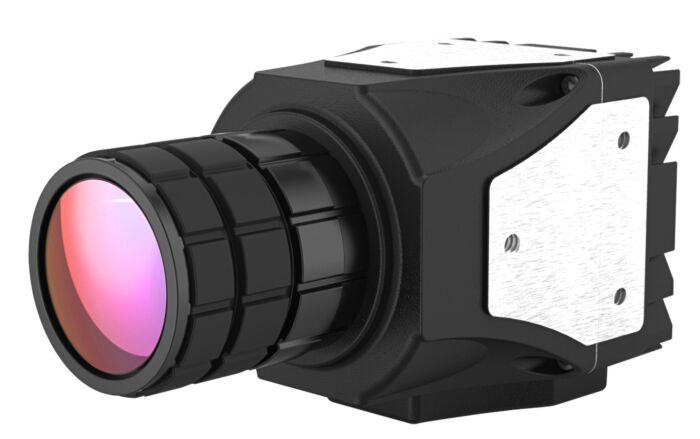

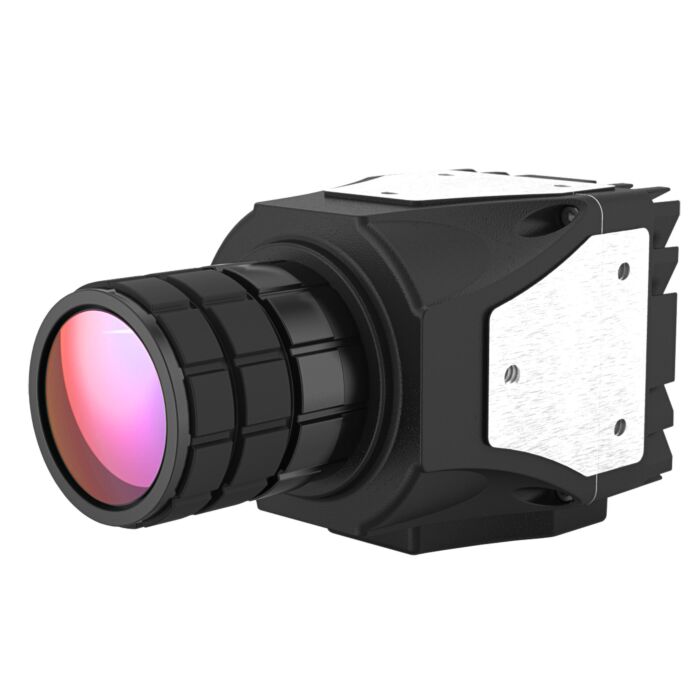

Lumenera Lt225 USB Camera

Quick Overview

2048 pixels x 1088 (2MP), 2/3" PS CMOS, 170 fps, USB 3.0 Camera.

Available Versions:
Color (Lt225C)
Monochrome (Lt225M)
Near-IR (Lt225M-NIR)
Overview

Lt225 USB 3.0 high performance cameras based on the industry leading CMOSIS global shutter sensors. The combination of these two CMOS sensors, combined with an incredibly fast USB 3.0 data interface have resulted in high speed, high performance cameras.

Features:

  • Industry proven CMOSIS CMV2000 CMOS 2.2 megapixel sensor with electronic global shutter
  • SuperSpeed USB 3.0 interface for fast image delivery and simplified connectivity
  • Compact, robust form factor measuring 40 x 40 x 53 mm with 16 mounting points
  • 170 fps at full resolution
  • Color or monochrome CMOS sensor with 2/3” optical format providing a resolution of 2048 x 1088 using 5.5 μm2 pixels
  • Locking industrial micro USB and Hirose GPI/O connector for power as well as control of peripherals and synchronization of lighting
  • 4 GPI/O: 1 optically isolated output, 1 optically isolated input and 2 configurable I/O ports
  • 128 MB RAM used for frame buffering
  • Simplified cabling – video, power and full camera control over a single micro USB 3.0 cable
  • Region of Interest (ROI) options improve sensitivity and provide higher frame rates
  • Select 8 or 12-bit pixel data
  • FCC Class B, CE Certified
  • DirectShow compatible
  • Software compatible with Windows XP, Windows Vista, Windows 7, 32 and 64-bit operating systems
  • Complete SDK available
  • Full one (1) year warranty
  • Specifications
    Image Sensor CMOSIS CMV2000, color, monochrome, NIR
    Optical Format 2/3”
    Active Area 12.755 mm
    Pixel Size 5.5 x 5.5 μm
    Resolution 2048 x 1088 pixels
    Region of Interest Control Any multiple of 8 x 8
    Camera Specifications
    Frame Rate 170 fps at full resolution
    Bit Depth 8 or 12-bit
    Binning Modes N/A
    Exposure Control Manual and automatic control
    Exposure Range 0 to 4000 ms
    Gain Control Manual and automatic control
    Gain Range 1.0 to 1.6 x
    White Balance Manual and automatic control
    Trigger Modes Hardware and software triggerable
    Camera Characteristics
    Sensitivity TBD
    Dynamic Range 60 dB
    Full Well Capacity 13,500 e-
    Quantum Efficiency 45% peak color, 64% peak monochrome
    Read Noise 13 e-
    Dark Current Noise 125 e-/s (@25 C die temp)
    Mechanical Specifications
    Data Interface USB 3.0, micro locking connector
    General Purpose I/O Locking Hirose
    Lens Mount C-Mount
    Dimensions 40 x 40 x 53 mm
    Mass 138 g
    Operating Temperature -5 to 60 ºC
    Storage Temperature -30 to 70 ºC
    Operating Humidity 5 to 95 %, non-condensing
    Shock / Vibration TBD
    Camera Software
    Operating Systems Windows XP, Windows Vista, Windows 7, 32 and
    64-bit operating systems
    Software Interfaces DirectShow
    Power and Emissions
    Power Consumption 5 V DC @ 700 mA, ~3.25 W
    Power Requirement USB bus power (optional 5 V DC, 700 mA minimum, power through Hirose)
    Emissions Compliances FCC Class B, CE Certified
    Hazardous Materials RoHS, WEEE Compliant
    Warranty One (1) year
