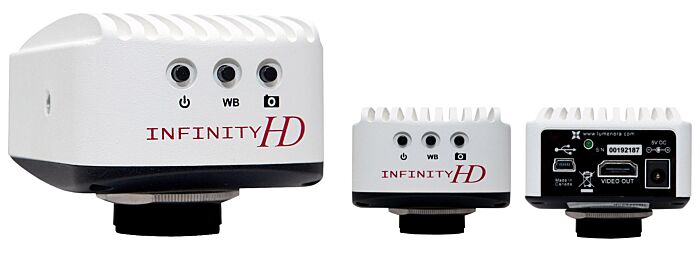

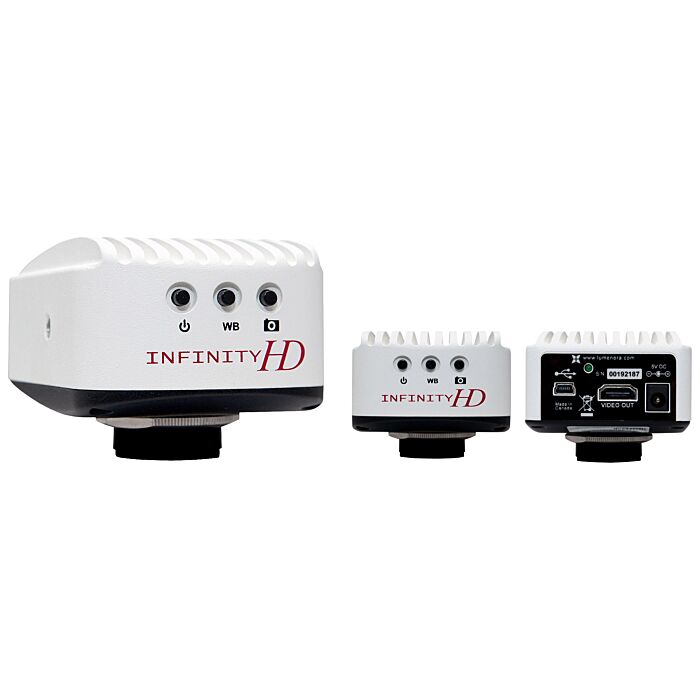

Lumenera INFINITY HD

Quick Overview

2 MP HD Color Camera
Overview

Lumenera’s INFINITYHD microscopy camera is a full featured, stand alone, high definition scientific imaging solution offering full 1080p60 preview with superb color reproduction and extremely fast frame rates. Operate the camera by directly connecting to an HDMI monitor without connecting to a PC, or utilize the plug and-play USB 2.0 for image capture. With extremely fast response times, the INFINITYHD quickly reacts to lighting changes in any life science, clinical or material application.

Features

  • 1/3” (16:9) CMOS 2 megapixel sensor
  • 1080p60 high definition format 1920 x 1080
  • Direct output to HDMI monitor
  • 3 on-camera buttons for power, white balance and capture
  • Optional USB 2.0 output to PC
  • INFINITYHD software compatible with Windows XP, Vista, Windows 7, 32 and 64-bit, for image capture
  • Applications

  • Brightfield
  • Darkfield
  • Live Cell Imaging
  • Histology
  • Pathology
  • Cytology
  • Defect Analysis
  • Semiconductor Inspection
  • Metrology
  • Specifications
    Image Sensor CMOS, color, progressive scan
    Optical Format 1/3"
    Active Area 5.2 x 2.7 mm
    Pixel Size 2.7µm x 2.7µm
    Resolution 1920 x 1080
    Region of Interest Control Not applicable to HD
    Camera Specifications
    Frame Rate 60 fps at full resolution
    Bit Depth 8 bit
    Exposure Control Fully automatic control
    Gain Control Fully automatic control
    White Balance One shot automatic control
    Camera Characteristics
    Mass 330g
    Sensitivity 11,500 e-/lux/sec
    Dynamic Range 65dB
    Full Well Capacity 15,500 e-
    Quantum Efficiency 51% (green peak)
    Read Noise 8.7 e-
    Dark Current Noise <60 e -/pixel/s at 60° C
    Mechanical Specifications
    Data Interface HDMI
    Control Interface USB 2.0
    Lens Mount Adjustable C-Mount standard
    Dimensions 2.25 x 3.85 x 1.56 inches
    Operating Temperature 0° C to +50° C
    Storage Temperature -30° C to +70° C
    Operating Humidity 5%-95%, Non-condensing
    Shock/Vibration 50 g shock, 5 g (2 to 200 Hz) vibration
    Camera Software
    Operating Systems Windows XP, Vista, 7, 32 and 64-bit
    Power and Emissions
    Power Consumption ~2.5 watts
    Power Requirement External 5VDC, 500mA
    Emissions Compliances FCC Class B, CE Certified
    Hazardous Materials RoHS, WEEE Compliant
    Warranty One (1) year
    System Requirements
    Recommended PC Specs
    • Pentium 4, 1.3 GHz or higher
    • 512 MB RAM
    • 500 MB hard drive free space or more
    • USB 2.0 Port
    • Windows 7
    Minimum PC Specs
    • 600 MHz Processor
    • 256 MB of SDRAM
    • 200 MB hard drive free space
    • USB 2.0 port
    • Windows XP
    Included in the Box
    Infinity HD 2 MP Digital Camera for USB 2.0
    LulNFHDSW-DVD DVD with INFINITYHD user application software and
    documentation
    La2020HD 2 m HDMI cable
    La2030M 3 m USB 2.0 A - mini B cable
    La20515 5VDC, 2.5 A, 12.5 W power supply
    Ordering Information
    INFINITY HD 2 MP HD Color Camera
