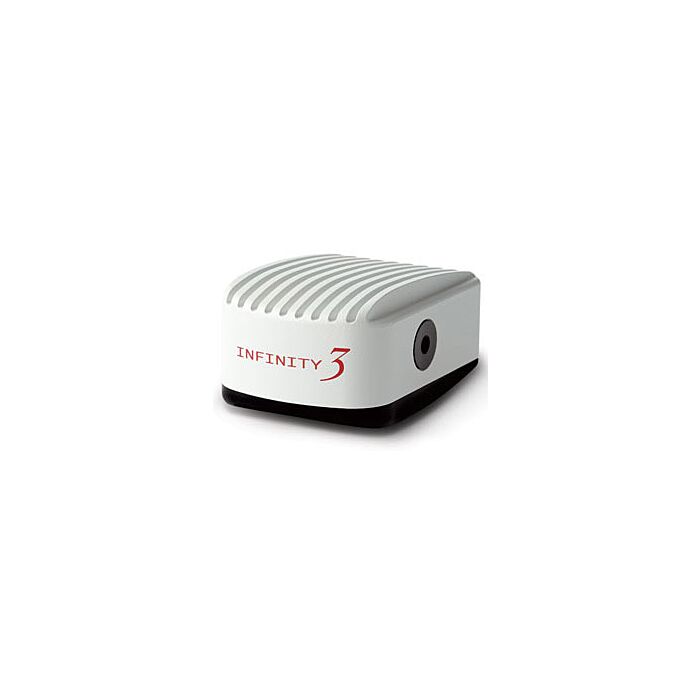

Lumenera INFINITY 3-1URC

Quick Overview

1.4 MP Uncooled CCD Color Camera
Overview

Lumenera’s INFINITY3-1URC Color camera is designed to be used in a wide variety of scientific applications. Cooled models are ideal in low-light conditions and where high dynamic range is required. Both color and monochrome product models are available.

With 1392x1040 resolution and on-board processing, these cameras deliver outstanding image quality and value for industrial and scientific imaging applications.

Features:

  • High-speed USB 2.0 (480Mbits/sec) interface eliminates a framegrabber and facilitates ease of installation on both laptop and desktop computers
  • Available in color or monochrome
  • Cooled feature reduces thermal noise during low light fluorescent imaging
  • Low noise characteristic of the INFINITY3-1 progressive scan 1.4 megapixel CCD image sensor results in crisp color quality for the most demanding brightfield, phase contrast, and fluorescent applications including GFP, FISH, NIR, FRET, life science and geology
  • Select 8 & 12-bit pixel data modes
  • The RGB data captured through each pixel contains 30-bits of color image information resulting in 1024 intensity values
  • Camera control through an intuitive user TWAIN interface results in rapid image capture archiving and documentation for high throughput applications, demanding research environments and teaching facilities
  • Applications:

  • Brightfield
  • Phase Contrast
  • GFP
  • Pathology
  • Cytology
  • Geology
  • FISH
  • NIR
  • FRET
  • Life Science
  • Specifications
    Image Sensor Sony ICX285 1.4 MP, CCD, color/mono, progressive scan
    Optical Format 2/3"
    Active Area 9.0 x 6.7 mm
    Pixel Size 6.45µm x 6.45µm
    Resolution 1392 x 1040 pixels
    Region of Interest Control Any multiple of 8 x 8 pixels (8 x 8 pixels minimum)
    Camera Specifications
    Frame Rate 30 fps at full resolution, 54 fps at 640 x 480 (ROI)
    Bit Depth 8 or 14-bit
    Binning / Subsampling Modes 2 x 2, 4 x 4
    Exposure Control Manual and automatic control
    Exposure Range 3 μs to 211 ms (video), 2 μs to 10 min (snapshot)
    Gain Control Manual and automatic control
    Gain Range 0.5 to 35 x
    White Balance Automatic and manual control
    Camera Characteristics (at 4.7 fps)
    Sensitivity 5.3 DN/(nJ/cm²) [at 8-bit, 1 x gains]
    Dynamic Range 70dB
    Full Well Capacity 18,500 e-
    Quantum Efficiency 44 % (color peak), 62 % (mono peak)
    Read Noise 8 e- rms
    Dark Current Noise <1 e-/s at 22º C
    Mechanical Specifications
    Data Interface USB 2.0
    Lens Mount Adjustable C-Mount standard
    Dimensions (L x W x H) 3.85 x 2.00 x 2.75 inches
    Operating Temperature 0° C to +50° C
    Storage Temperature -30 to +70 ºC
    Operating Humidity 5%-95%, Non-condensing
    Shock/Vibration 50 G shock, 5 G (2 to 200 Hz) vibration
    Camera Software
    Operating Systems Windows XP, Vista, 7, Mac OSX, 32 and 64-bit
    Power and Emissions
    Power Consumption ~2.5 watts (5VDC, 2.5A, 12.5W power supply optional)
    Power Requirement USB bus power (optional external power supply recommended for optimal performance at 30 fps)
    Emissions Compliances FCC Class BE, CE Certified
    Hazardous Materials RoHS, WEEE Compliant
    Warranty One (1) year
    System Requirements
    Recommended PC Specs
    • Pentium 4, 1.3 GHz or higher
    • 512 MB RAM
    • 60 MB hard drive free space or more
    • USB 2.0 Port
    • Windows 7
    Minimum PC Specs
    • 600 MHz Processor
    • 256 MB of SDRAM
    • 20 MB hard drive free space
    • USB 2.0 Port
    • Windows XP
    Included in the Box
    Infinity 3-1UR 1.4 MP Digital Camera for USB 2.0
    LuINFSW-DVD DVD with INFINITY user application software, TWAIN
    driver and documentation
    Lu802 2 m USB 2.0 Cable
    Ordering Information
    INFINITY3-1URC 1.4 MP Uncooled CCD Color Camera
    INFINITY ANALYZE
    MODULE
    INFINITY ANALYZE Advanced Features Module
    (Multi-Focus Composition and Spherical Aberration
    Correction Features)
    LuSDKSW Software Developer’s Kit (Web Download)
    LuSDKSW-DVD Software Developer’s Kit (DVD)
    La20515 5VDC, 2.5 A, 12.5 W Power Supply
