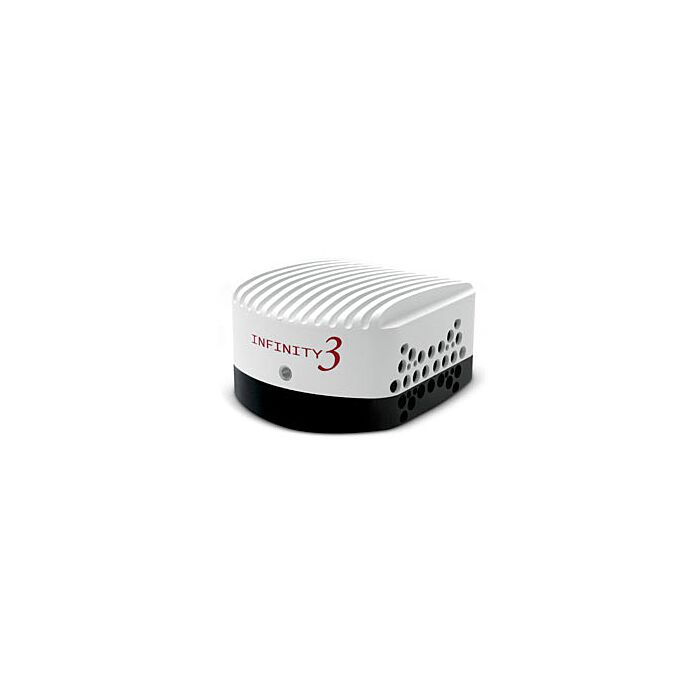

Lumenera INFINITY 3-1M

Quick Overview

1.3 MP Cooled CCD Monochrome Camera
Overview

Lumenera’s INFINITY3-1M Monochrome camera is designed to be used in a wide variety of scientific applications. Cooled models are ideal in low-light conditions and where high dynamic range is required. Both color and monochrome product models are available.

With 1392x1040 resolution and on-board processing, these cameras deliver outstanding image quality and value for industrial and scientific imaging applications.

Features

  • High-speed USB 2.0 (480Mbits/sec) interface eliminates a framegrabber and facilitates ease of installation on both laptop and desktop computers
  • Available in color or monochrome
  • Cooled feature reduces thermal noise during low light fluorescent imaging
  • Low noise characteristic of the INFINITY3-1 progressive scan 1.4 megapixel CCD image sensor results in crisp color quality for the most demanding brightfield, phase contrast, and fluorescent applications including GFP, FISH, NIR, FRET, life science and geology
  • Select 8 & 12-bit pixel data modes
  • The RGB data captured through each pixel contains 30-bits of color image information resulting in 1024 intensity values
  • Camera control through an intuitive user TWAIN interface results in rapid image capture archiving and documentation for high throughput applications, demanding research environments and teaching facilities

Recommended Applications

  • Brightfield
  • Phase Contrast
  • GFP
  • Pathology
  • Cytology
  • Geology
  • FISH
  • NIR
  • FRET
  • Life Science
Specifications
Camera Sensor
Image Sensor Sony ICX285 1.4 MP, CCD, mono, progressive scan
Optical Format 2/3"
Pixel Size 6.45µm x 6.45µm
Effective Pixels 1392 x 1040 pixels
Camera Specifications
Frame Rate 15 fps at 1392 x 1040, increased through binning and ROI
Bit Depth 8 and 12-bit
Binning / Subsampling Modes 2 x 2, 3 x 3, 4 x 4
Auto Exposure Manual and automatic control
Gain Control Programmable
Gain Range 1 to 10 x
White Balance Automatic and manual control
Camera Characteristics
Dynamic Range 58dB
Full Well Capacity >18,000 electrons
Read Noise 8 e- rms
Dark Current Noise 0.15 electrons / pixel(s) when cooled
Mechanical Specifications
Data Interface USB 2.0 high-speed interface
Lens Mount C-Mount lens adapter
Dimensions (L x W x H) 3.85 x 3.5 x 2.446 inches
Operating Temperature 0° C to +50° C
Operating Humidity 5%-95%, Non-condensing
Camera Software
Operating Systems Windows 2000, XP, Vista, Mac OSX 10.4
Power and Emissions
Power Consumption ~2.5 watts
Power Requirement USB bus power (external 5VDC - 3amp)
Included in the Box
Infinity 3-1M Monochrome 1.3 MP Cooled CCD for USB 2.0
LuSDK Software Developer's Kit and Accessories, TWAIN included
