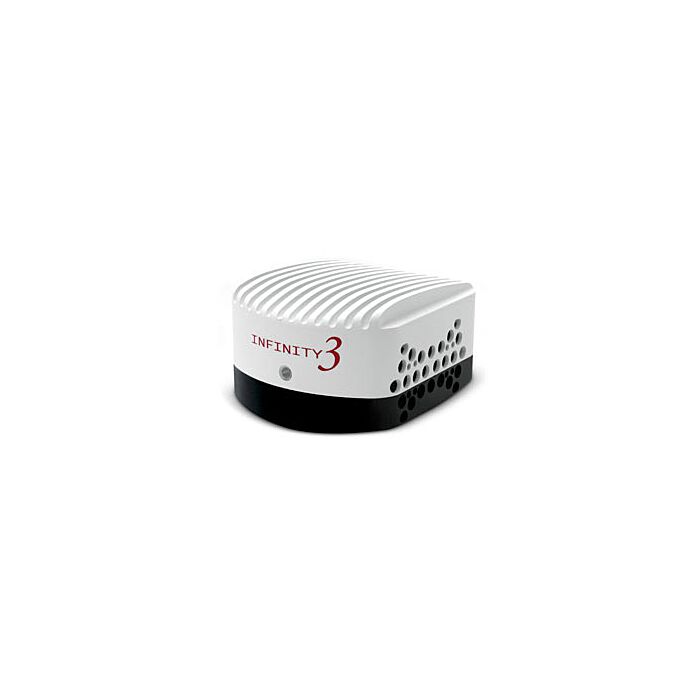

Lumenera INFINITY 3-1C

1.3 MP Cooled CCD Color Camera
SKU
Lumenera INFINITY 3-1C

Lumenera’s INFINITY3-1C Color camera is designed to be used in a wide variety of scientific applications. Cooled models are ideal in low-light conditions and where high dynamic range is required. Both color and monochrome product models are available.

With 1392x1040 resolution and on-board processing, these cameras deliver outstanding image quality and value for industrial and scientific imaging applications.

Features:

  • High-speed USB 2.0 (480Mbits/sec) interface eliminates a framegrabber and facilitates ease of installation on both laptop and desktop computers
  • Available in color or monochrome
  • Cooled feature reduces thermal noise during low light fluorescent imaging
  • Low noise characteristic of the INFINITY3-1 progressive scan 1.4 megapixel CCD image sensor results in crisp color quality for the most demanding brightfield, phase contrast, and fluorescent applications including GFP, FISH, NIR, FRET, life science and geology
  • Full color sub-windowing allows for rapid focus and scanning of samples: 15 fps at full 1392x1040 resolution
  • Select 8 & 12-bit pixel data modes
  • The RGB data captured through each pixel contains 30-bits of color image information resulting in 1024 intensity values
  • Camera control through an intuitive user TWAIN interface results in rapid image capture archiving and documentation for high throughput applications, demanding research environments and teaching facilities

  • Applications:

  • Brightfield
  • Phase Contrast
  • GFP
  • Pathology
  • Cytology
  • Geology
  • FISH
  • NIR
  • FRET
  • Life Science
  • Image Sensor Sony ICX285 1.4 MP, CCD, color/mono, progressive scan
    Optical Format 2/3"
    Pixel Size 6.45µm x 6.45µm
    Effective Pixels 1392 x 1040 pixels
    Camera Specifications
    Frame Rate 15 fps at 1392 x 1040, increased through binning and ROI
    Bit Depth 8 and 12-bit
    Binning / Subsampling Modes 2 x 2, 3 x 3, 4 x 4
    Auto Exposure Manual and automatic control
    Gain Control Programmable
    Gain Range 1 to 10 x
    White Balance Automatic and manual control
    Camera Characteristics
    Dynamic Range 58dB
    Full Well Capacity >18,000 electrons
    Read Noise 8 e- rms
    Dark Current Noise 0.15 electrons / pixel(s) when cooled
    Mechanical Specifications
    Data Interface USB 2.0 high-speed interface
    Lens Mount C-Mount lens adapter
    Dimensions (L x W x H) 3.85 x 3.5 x 2.446 inches
    Operating Temperature 0° C to +50° C
    Operating Humidity 5%-95%, Non-condensing
    Camera Software
    Operating Systems Windows 2000, XP, Vista, Mac OSX 10.4
    Power and Emissions
    Power Consumption ~2.5 watts
    Power Requirement USB bus power (external 5VDC - 3amp)
    Included in the Box
    Infinity 3-1C Color 1.3 MP Cooled CCD for USB 2.0
    LuSDK Software Developer's Kit and Accessories, TWAIN included
