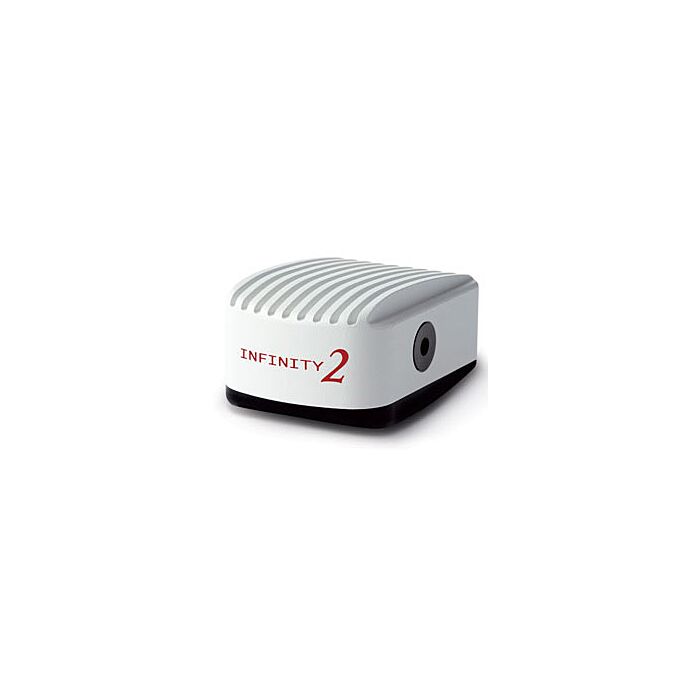

Lumenera INFINITY 2-2M

Quick Overview

2.01 MP CCD Monochrome Camera
Overview

Lumenera’s INFINITY2-2M digital CCD monochrome camera offers excellent sensitivity and high resolution. This is an ideal camera for brightfield, darkfield, and DIC imaging applications where higher resolution archiving and a wide dynamic range are routinely required. With 1616 X 1216 resolution and on-board processing, the INFINITY2-2M delivers outstanding image quality for a wide variety of scientific applications.

Features:

  • The high-speed USB 2.0 interface eliminates a framegrabber and facilitates ease of installation on both laptop and desktop computers
  • The low noise characteristic of the INFINITY2-2, 2.0 megapixel CCD image sensor results in crisp quality for the most demanding brightfield and darkfield microscopy applications including clinical pathology and cytology, histology, life science and geology
  • Select 8 and 12-bit pixel data modes
  • Camera control through an intuitive user TWAIN interface results in rapid image capture archiving and documentation for high throughput applications, demanding research environments and teaching facilities
  • The INFINITY2-2 has a compact design equipped with a C-Mount, facilitating installation on all microscope configurations including upright, inverted and stereo

  • Applications:

  • Brightfield
  • Darkfield
  • Cytology
  • Differential Interference Contrast
  • Pathology
  • Histology
  • Life Science
  • Geology
  • Specifications
    Image Sensor Interline Sony ICX274 2.01 MP, CCD, mono, progressive scan
    Optical Format 1/1.8"
    Pixel Size 4.4µm x 4.4µm
    Resolution 1616 x 1216 pixels
    Camera Specifications
    Frame Rate 12 fps at full resolution, higher fps with binning and ROI
    Bit Depth 8 and 12-bit
    Binning / Subsampling Modes 2 x 2, 4 x 4
    Auto Exposure Manual and automatic control
    Gain Control Programmable
    Gain Range 1 to 10 x
    White Balance Automatic and manual control
    Camera Characteristics
    Dynamic Range 66dB
    Read Noise 12 e- rms
    Mechanical Specifications
    Interface Connector Standard USB 2.0 high-speed interface
    Lens Mount C-Mount lens adapter
    Dimensions (L x W x H) 3.85 x 2.00 x 2.75 inches
    Mass 300g
    Operating Temperature 0° C to +50° C
    Operating Humidity 5%-95%, Non-condensing
    Camera Software
    Operating Systems Windows 2000, Windows XP, Windows Vista
    Power and Emissions
    Power Consumption ~2.5 watts
    Power Requirement USB bus power or external 5VDC - 500mA
    System Requirements
    Recommended PC Specs
    • Pentium 4, 1.3 GHz or higher
    • 512 MB RAM
    • 60 MB hard drive free space or more
    • USB 2.0 Port
    • Windows 2000, XP, or Vista
    Minimum PC Specs
    • 600 MHz Processor
    • 256 MB of SDRAM
    • 200 MB hard drive free space
    • USB 2.0 Port
    Included in the Box
    Infinity 2-2 2.01 MP Digital Camera for USB 2.0
    CD-ROM CD-ROM with INFINITY user application software, includes TWAIN driver
    Cables USB 2.0 cable
