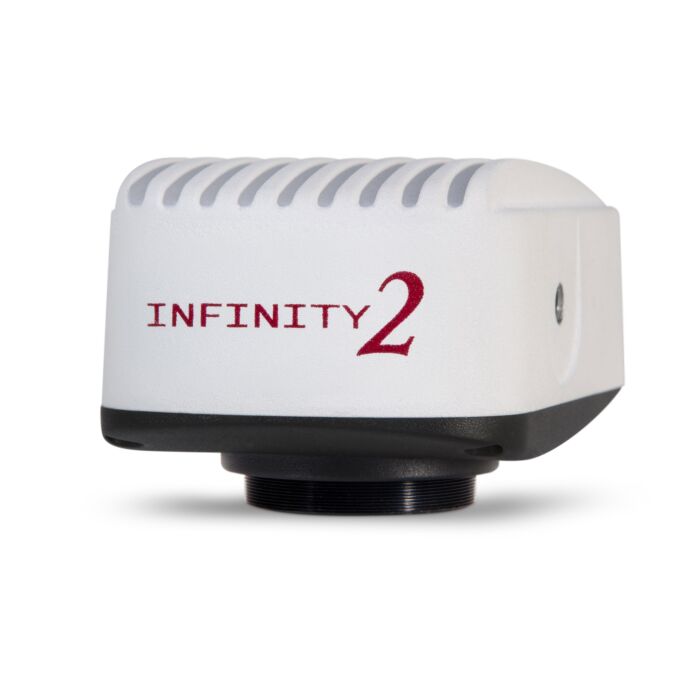

Lumenera INFINITY 2-1RC

Quick Overview

1.4 MP CCD Color Camera
Overview

INFINITY2-1R - Pink in Support of Breast Cancer Research For each and every INFINITY2-1R sold Lumenera donates $20 in support of Breast Cancer Research. Contributions will not be capped.

The reengineered INFINITY2-1RC scientific camera offers a significant performance increase for quantitative and low-light applications over its predecessor. Improved thermal management, combined with a much higher dynamic range and 14-bit output have resulted in a versatile entry-level research camera. The INFINITY2-1RC easily manages seconds of exposure time with a dark current rating of less than 1 e-/s.

Features:

  • Improved noise performance over the first generation camera
  • Incredibly low dark current noise in an uncooled camera
  • High dynamic range of 64 dB
  • Low noise progressive scan ½”, 1.4 megapixel Sony ICX205 CCD sensor
  • Full color sub-windowing allows for rapid focus and scanning of samples; up to 22 fps at 640 x 480 resolution
  • 8 or 14-bit pixel data modes
  • $20 from each camera sale donated to support Breast Cancer Research

  • Applications:

  • Low Light Fluorescence
  • Darkfield
  • Live Cell Imaging
  • Histology
  • Pathology
  • Cytology
  • Brightfield
  • Defect Analysis
  • Semiconductor Inspection
  • Metrology
  • Gel Documentation
  • Quantitative Analysis
  • Specifications
    Image Sensor Sony HAD ICX205, CCD, color/mono, progressive scan
    Optical Format 1/2"
    Active Area 7.6 x 6.2mm
    Pixel Size 4.65µm x 4.65µm
    Resolution 1392 x 1040 pixels
    Region of Interest Control Any multiple of 8 x 8 pixels, 120 x 120 pixels minimum
    Camera Specifications
    Frame Rate Up to 15 fps at full resolution, 22 fps at 640 x 480 (ROI)
    Bit Depth 8 or 14-bit
    Binning / Subsampling Modes 2 x 2, 4 x 4 binning modes
    Exposure Control Manual and automatic control
    Exposure Range 48μs to 500ms (video) 5.4μs to 8 min (snapshot)
    Gain Control Manual and automatic control
    Gain Range 0.5 to 15 x
    White Balance Automatic and manual control
    Camera Characteristics (at 4.7 fps)
    Sensitivity 2.5 DN/(nJ/cm2) [at 8-bit, 1x gains]
    Dynamic Range 64.6dB
    Full Well Capacity 14,500 e-
    Quantum Efficiency 32% (peak color), 44% (peak mono)
    Read Noise 8.5 e-
    Dark Current Noise <1 e-/s at 22º C
    Mechanical Specifications
    Data Interface USB 2.0
    Lens Mount Adjustable C-Mount standard
    Dimensions (L x W x H) 3.85 x 2.25 x 1.56 inches
    Mass 340g
    Operating Temperature 0° C to +50° C
    Storage Temperature -30° C to +70° C
    Operating Humidity 5%-95%, Non-condensing
    Shock / Vibration 50 G shock, 5 G (2 to 200 Hz) vibration
    Camera Software
    Operating Systems Windows XP, Windows Vista, Windows 7, Mac OSX, 32 and 64-bit
    Power and Emissions
    Power Consumption ~2.5 watts
    Power Requirement USB bus power (external 5VDC, 500 mA optional)
    Emissions Compliances FCC Class B, CE Certified
    Hazardous Materials RoHS, WEEE Compliant
    Warranty One (1) year
    System Requirements
    Recommended PC Specs
    • Pentium 4, 1.3 GHz or higher
    • 512 MB RAM
    • 500 MB hard drive free space or more
    • USB 2.0 Port
    • Windows 7
    Minimum PC Specs
    • 600 MHz Processor
    • 256 MB of RAM
    • 200 MB hard drive free space
    • USB 2.0 Port
    • Windows XP
    Included in the Box
    Infinity 2-1R 1.4 MP Digital Camera for USB 2.0
    LulNFSW-DVD DVD with INFINITY user application software, TWAIN driver and documentation
    Lu802 2 m USB 2.0 cable
    Ordering Information
    Infinity 2-1RC 1.4 MP CCD Color Camera
    Infinity 2-1RM 1.4 MP CCD Monochrome Camera
    Infinity Analyze Module INFINITY ANALYZE Advanced Features Module (Multi-Focus Composition and Spherical Aberration Correction Features)
    LuSDKSW Software Developer's Kit (Web Download)
    LuSDKSW-DVD Software Developer's Kit (DVD)
    La20515 5VDC, 2.5A, 12.5W Power Supply
