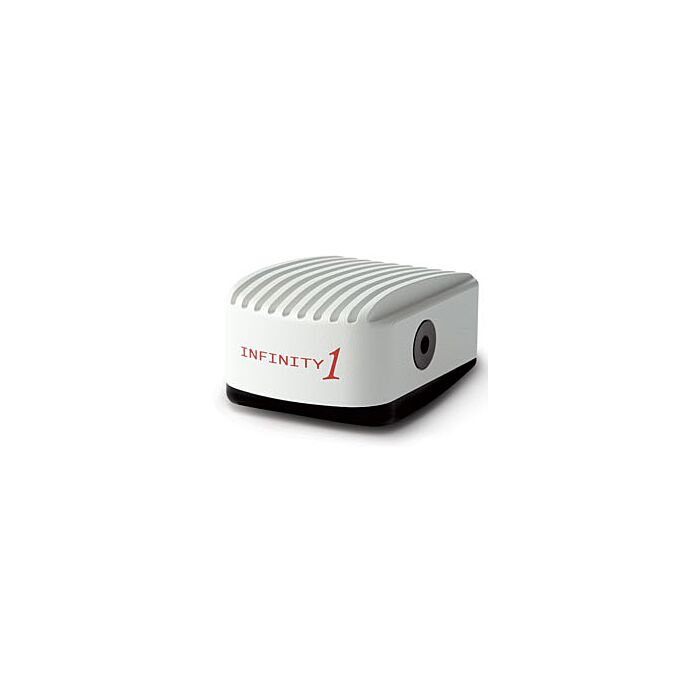

Lumenera INFINITY 1-5M

Quick Overview

5.0 MP Monochrome CMOS Microscopy Camera
Overview

For applications that demand extremely high resolution, the INFINITY1-5 camera produces a full 2592 x 1944 video preview with speeds of 7 frames per second (fps) in both color and monochrome formats. This full 5.0 megapixel sensor allows users to view fine detail in samples and provide a high resolution preview to large monitors and overhead projectors.

Features:

  • Low noise progressive scan 1/2.5” 5.0 megapixel CMOS sensor
  • 7 fps at full 2592 x 1944 resolution and 60 fps at 640 x 480 resolution
  • High-speed USB 2.0 for ease of installation on any computer
  • Selectable 8 or 12-bit pixel data modes
  • Software compatible with Windows XP, Windows Vista, Windows 7, Mac OSX, 32 and 64-bit
  • Includes TWAIN and DirectX/Direct Show support

  • Applications:

  • Brightfield
  • Darkfield
  • Live Cell Imaging
  • Histology
  • Pathology
  • Cytology
  • Defect Analysis
  • Semiconductor Inspection
  • Metrology
  • Specifications
    Image Sensor Micron MT9P031, CMOS, monochrome, progressive scan
    Optical Format 1/2.5"
    Active Area 5.7 x 4.28mm
    Pixel Size 2.2µm
    Resolution 2592 x 1944 pixels
    Region of Interest Control Any multiple of 8 x 8 pixels, 32 x 32 pixels minimum
    Camera Specifications
    Frame Rate 7 fps
    Bit Depth 8 or 12-bit
    Binning / Subsampling Modes 2 x 2, 4 x 4
    Exposure Control Manual and automatic control
    Exposure Range 106μs to 3s (video) 106μs to 3s (snapshot)
    Gain Control Manual and automatic control
    Gain Range 1 to 3.38x
    White Balance Automatic and manual control
    Camera Characteristics
    Sensitivity Good
    Dynamic Range 49dB
    Full Well Capacity 15,000 e-
    Quantum Efficiency 47% (green-peak), 62% (mono-peak)
    Read Noise 20 e- rms
    Dark Current Noise <8e-/s at 22° C
    Mechanical Specifications
    Data Interface USB 2.0
    Lens Mount Adjustable C-Mount standard
    Dimensions (L x W x H) 3.85 x 2.25 x 1.56 inches
    Mass 330g
    Operating Temperature 0° C to +50° C
    Storage Temperature -30° C to +70° C
    Operating Humidity 5%-95%, Non-condensing
    Shock / Vibration 50 G shock, 5 G (2 to 200 Hz) vibration
    Camera Software
    Operating Systems Windows XP, Vista, Mac OSX, 32 and 64-bit
    Power and Emissions
    Power Consumption ~2.5 watts
    Power Requirement USB bus power only
    Emissions Compliances FCC Class BE, CE Certified
    Hazardous Materials RoHS, WEEE Compliant
    Warranty One (1) year
    System Requirements
    Recommended PC Specs
    • Pentium 4, 1.3 GHz or higher
    • 512 MB RAM
    • 500 MB hard drive free space or more
    • USB 2.0 Port
    • Windows 7
    Minimum PC Specs
    • 600 MHz Processor
    • 256 MB of SDRAM
    • 200 MB hard drive free space
    • USB 2.0 Port
    • Windows XP
    Included in the Box
    Infinity 1-5 5 MP Digital Camera for USB 2.0
    LulNFSW-DVD DVD with INFINITY user application software (including INFINITY ANALYZE), TWAIN driver and documentation
    Lu802 2 m USB 2.0 cable
    Ordering Information
    Infinity 1-5M 5.0 MP Monochrome CMOS Mircroscopy Camera
