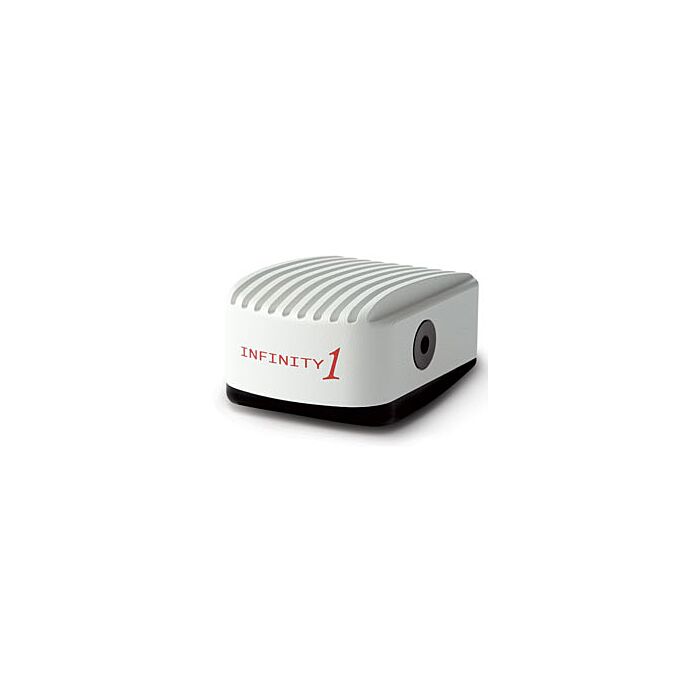

Lumenera INFINITY 1-2CB

Quick Overview

2 MP CMOS Color Camera
Overview

Within the INFINITY1 family of CMOS cameras, the INFINITY1-2 is an excellent entry level multi-megapixel microscopy camera. This camera is ideal for applications with bright, consistent lighting and tight budget constraints. The INFINITY1-2 delivers outstanding image quality for a wide variety of scientific applications including clinical, life science, materials science and educational professionals.

Features:

  • Progressive scan ½” 2.0 megapixel CMOS sensor
  • Full color sub-windowing and subsampling for rapid focus and scanning of samples
  • 8 or 10-bit pixel data modes
  • Software compatible with Windows XP, Windows Vista, Windows 7 and Mac OSX, 32 and 64-bits
  • Includes TWAIN and DirectX/Direct Show support
  • Applications:

  • Brightfield
  • Live Cell Imaging
  • Histology
  • Pathology
  • Cytology
  • Defect Analysis
  • Semiconductor Inspection
  • Metrology
  • Specifications
    Image Sensor SOI268, CMOS, color, progressive scan
    Optical Format 1/2"
    Active Area 6.72 x 5.04mm
    Pixel Size 4.2µm x 4.2µm
    Resolution 1600 x 1200 pixels
    Region of Interest Control Any multiple of 8 x 8 pixels, 32 x 32 pixels minimum
    Camera Specifications
    Frame Rate 15 fps
    Bit Depth 8 or 10-bit
    Binning / Subsampling Modes 2x subsampling mode
    Exposure Control Manual and automatic control
    Exposure Range 64μs to 499ms (video) 64μs to 2s (snapshot)
    Gain Control Manual and automatic control
    Gain Range 1 to 7.75x
    White Balance Automatic and manual control
    Camera Characteristics
    Sensitivity 2.2DN/(nJ/cm2) [at 8-bit, 1x gains]
    Dynamic Range 49dB
    Full Well Capacity 12,600 e-
    Quantum Efficiency 40% (red-peak)
    Read Noise 45 e-
    Dark Current Noise <8 e-/s
    Mechanical Specifications
    Data Interface USB 2.0
    Lens Mount Adjustable C-Mount standard
    Dimensions (L x W x H) 3.85 x 2.25 x 2.75 inches
    Mass 300g
    Operating Temperature 0° C to +50° C
    Storage Temperature -30° C to +70° C
    Operating Humidity 5%-95%, Non-condensing
    Shock / Vibration 50 G shock, 5 G (2 to 200 Hz) vibration
    Camera Software
    Operating Systems Windows XP, Vista, Mac OSX, 32 and 64-bit
    Power and Emissions
    Power Consumption ~2.5 watts
    Power Requirement USB bus power (optional 5VDC to 500 mA)
    Emissions Compliances FCC Class BE, CE Certified
    Hazardous Materials RoHS, WEEE Compliant
    Warranty One (1) year
    System Requirements
    Recommended PC Specs
    • Pentium 4, 1.3 GHz or higher
    • 512 MB RAM
    • 500 MB hard drive free space or more
    • USB 2.0 Port
    • Windows 7
    Minimum PC Specs
    • 600 MHz Processor
    • 256 MB of SDRAM
    • 200 MB hard drive free space
    • USB 2.0 Port
    • Windows XP
    Included in the Box
    Infinity 1-2CB 2 MP Digital Camera for USB 2.0
    LulNFSW-DVD DVD with INFINITY user application software (including INFINITY ANALYZE), TWAIN driver and documentation
    Lu802 2 m USB 2.0 cable
    Ordering Information
    Infinity 1-2CB 5.0 MP Color CMOS Microscopy Camera
    Ordering Options
    Infinity Analyze Module INFINITY ANALYZE Advanced Features Module (Multi-Focus Composition and Spherical Aberration Correction Features)
    LuSDKSW Software Developer's Kit (Web Download)
    LuSDKSW-DVD Software Developer's Kit (DVD)
    La20515 5VDC, 2.5A, 12.5W Power Supply (Optional)
