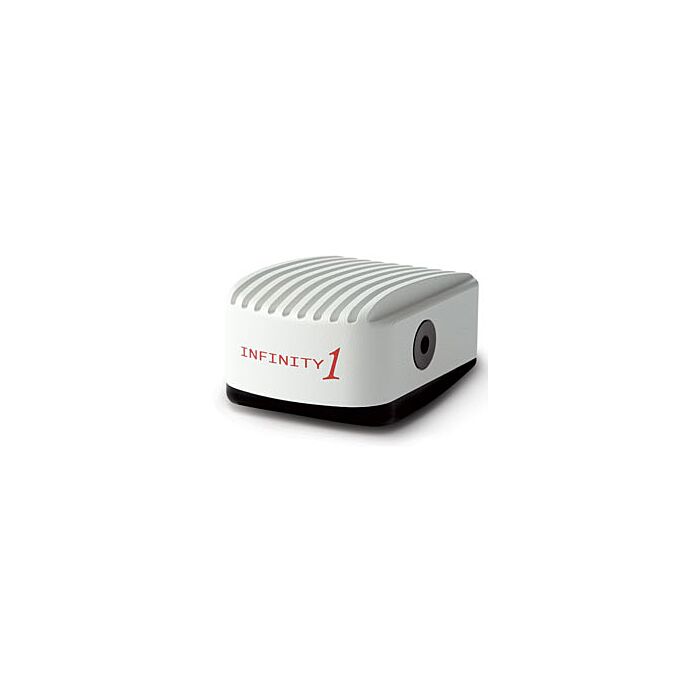

Lumenera INFINITY 1-1M

Quick Overview

1.3 MP CMOS Monochrome Camera
Overview

Lumenera’s INFINITY1-1 digital camera is designed to be a cost-effective, versatile solution for clinical, life science, materials science and educational professionals. With 1280x1024 resolution and on-board processing, the INFINITY1-1 delivers outstanding image quality for a wide variety of scientific applications.

Features:

  • The high-speed USB 2.0 interface eliminates a framegrabber and facilitates ease of installation on both laptop and desktop computers
  • The low noise characteristic of the INFINITY1-1 progressive scan 1.3 megapixel image sensor results in crisp color quality for the most demanding brightfield and darkfield microscopy applications including clinical pathology and cytology, life science and geology
  • Full color sub-windowing allows for rapid, focus and scanning of samples: 15 fps at full 1280x1024 resolution and 60 fps at 640x480 resolution
  • Select 8 & 10-bit pixel data modes
  • The RGB data captured through each pixel contains 30-bits of color image information resulting in 1024 intensity values
  • Camera control through an intuitive user TWAIN interface results in rapid image capture archiving and documentation for high throughput applications, demanding research environments and teaching facilities
  • The INFINITY1-1 has a compact design equipped with a C-Mount, facilitating installation on all microscope configurations including upright, inverted and stereo
  • INFINITY1-1 cameras are software compatible with Windows™ 98 SE, Windows ME, Windows 2K and Windows XP operating systems

  • Applications:

  • Brightfield
  • Darkfield
  • Pathology
  • Cytology
  • Life Science
  • Geology
  • Specifications
    Image Sensor CMOS 1.3 MP color/mono
    Optical Format 1/2"
    Pixel Size 5.2 µm x 5.2 µm
    Resolution 1280 x 1024 pixels
    Camera Specifications
    Frame Rate 15 fps at full resolution, 60 fps at 640 x 480
    Bit Depth 8 and 10-bit uncompressed
    Auto Exposure Manual and automatic control
    Gain Control Programmable
    Gain Range 1 to 10 x optimizable
    White Balance Automatic and manual control
    Camera Characteristics
    Read Noise 20 e- rms
    Mechanical Specifications
    Interface Connector USB 2.0 high-speed interface
    Lens Mount C-Mount lens adapter
    Dimensions (L x W x H) 3.85 x 2.00 x 2.75 inches
    Mass 300g
    Operating Temperature 0° C to +50° C
    Operating Humidity 5%-95%, Non-condensing
    Camera Software
    Operating Systems Windows 98, ME, 2000, or XP
    Power and Emissions
    Power Consumption ~2.5 watts
    Power Requirement USB bus power or external 5VDC - 500mA
    System Requirements
    Recommended PC Specs
    • Pentium 4, 1.3 GHz or higher
    • 512 MB RAM
    • 60 GB hard drive free space or more
    • USB 2.0 Port Windows 2000 or XP
    Minimum PC Specs
    • 600 MHz Processor
    • 256 MB of SDRAM
    • 20 GB hard drive free space
    • USB 2.0 Port
    • Windows 98 or ME
    Included in the Box
    Infinity 1-1 1.3 MP Digital Camera for USB 2.0
    CD-ROM CD-ROM with INFINITY user application software, includes TWAIN driver
    Cables USB 2.0 cable
