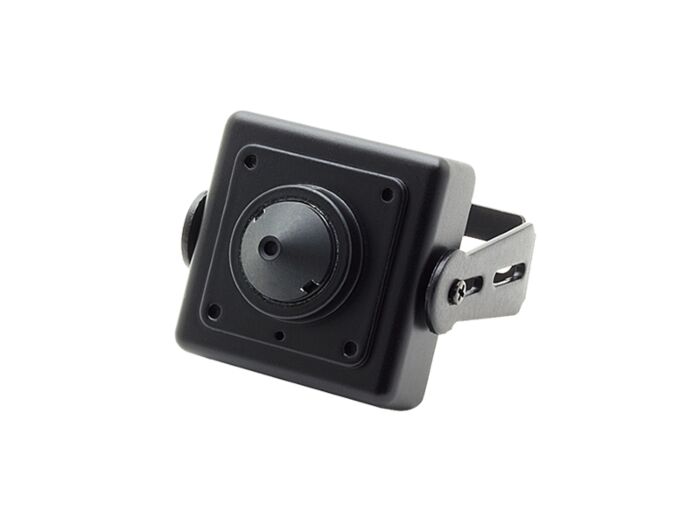

  • KT&C KPC-HD30M HD Miniature Square Camera image

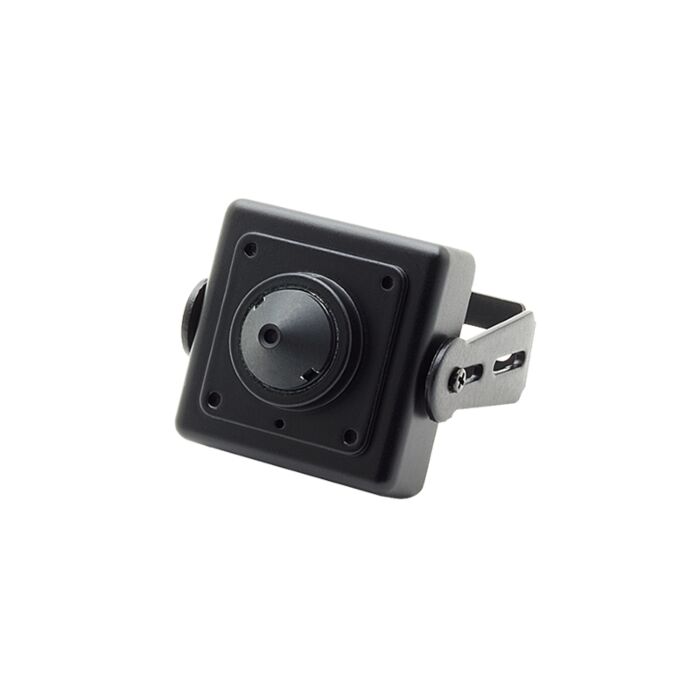

  • KT&C KPC-HD30M HD Miniature Square Camera side image

KT&C KPC-HD30M HD Miniature Square Camera

Quick Overview

1944 x 1092 Total Pixels (H x V), 1/3” 2.1 Megapixel Color CMOS sensor.
Overview

The KPC-HD30M HD SDI Mini Square Camera Low Lux 0.1 3D DNR Digital Day Night 3.6mm Lens.

Features:

  • Ultra compact size 1.2” square 2.1 megapixel HD-SDI camera weighs only 1-1/4 ounce fits anywhere
  • HD-SDI/HDCCTV Megapixel real time 1920x1080 or 1280x720 HD video over coax for superlative image detail
  • Supports video outputs of 1080p30/25; 720p60/50 (field select)
  • Sens-Up of up to 32X DSS boosts low light performance (use of DSS values greater than 4X should only be used after careful consideration of application conditions)
  • “Double Shutter” Wide Dynamic Range plus Adaptive Contrast Enhancement (ACE/DWDR) functions handle bright and unbalanced lighting conditions
  • HSBLC & BLC to handle backlight and highlight specific conditions
  • 3D DNR improves picture clarity while enabling DVRs to improve disk storage utilization
  • Included bracket allows flexible mounting and aiming
  • 3.7mm megapixel lens captures the desired field of view
  • Multi-language OSD setup menu with multiple functions (image flip, privacy mask, digital zoom, defog, camera title, motion detect, etc.)
  • SD/analog TV Out for setup, aim and focus using a standard hand held test monitor
  • Power Source only 120mA from 12VDC

  • Applications:
  • Security Indoor/Outdoor
  • Surveillance/CCTV
  • Meetings
  • Industrial
  • Specifications
    Image Device 1/3” 2.1 Megapixel Color CMOS sensor
    Total Pixels 1944 x 1092
    Effective Pixels 5.28 mm x 2.97 mm (16:9 aspect ratio; 6.06 mm diagonal)
    Sensitivity 0.1lux/F=1.8; 0.2lux/F=2.5. Use of DSS can improve practical light sensitivity by 4X or more; ; use of DSS values greater than 4X should only be used after careful consideration of application conditions
    S/N Ratio More than 52dB
    Video Fromat Main Output HD-SDI
    Resolution Main Output Field select 1080p or 720p
    Video Mode Main Output Field select 1080p 30/25; 720p 60/50
    Main Output Connector BNC-F
    Video Format Service Video Output NTSC/PAL selectable
    Service Video Output Connector BNC-F
    Electronic Shutter Auto/Manual selectable 1/30(20); 1/60(50); 1/120(100); 1/250; 1/700; 1/1.1K; 1/1.6K; 1/2.5K; 1/5K; 1/7K; 1/10K; 1/30K
    Lens Choices (megapixel board type)  f=3.7mm/F2.5 (3M) / f=8mm/F1.8 (1.3M) Super-cone Pinhole f=4.3mm/F2.0 (1.3M)
    Day/Night Control Digital D&N (Auto/Color/B&W)
    Wide Dynamic Range / Back Light Compensation Off/BLC/WDR [WDR adjustable for level; BLC adjustable for area] (WDR option employs “Double Shutter” Wide Dynamic Range Compensation)
    Digital Wide Dynamic Range  Adaptive Contrast Enhancement (ACE)
    Auto Gain Control  Yes (12~60 dB)
    Auto White Balance Auto/Auto Ext/Push Lock/Manual
    DNR  3D DNR; Off/Low/Mid/High selectable
    OSD Menu  Yes (controlled from 3-axis joystick control)
    OSD Language English, Russian, Spanish, German, French, Portuguese, Chinese
    Image Flip  Off/H Flip/V Flip/HV Flip (rotate 180°)
    Privacy Zones  Up to 15 zones, with adjustable color and transparency
    HSBLC Adjustable for level, mode (day/night/all), and mask color
    Digital Zoom Up to 20X
    Defog Image clarity improvement in diffued light environments low/middle/high
    Power Sources & Consumption 12V DC: 120mA max.
    Dimensions 1.18 inch x 1.18 inch x 1.11 inch (30 mm x 30 mm x 28.2 mm)
    Weight 1.23 oz. (35 g)
    Operating Temperature -10 °C ~ 50 °C ; 14 °F ~ 122 °F
    Storage Temperature -20 °C ~ 60 °C ; -4 °F ~ 140 °F
    Humidity 20% ~ 80%, non condensing
    Mounting Provision Tilt/Swivel bracket provided
    Certifications FCC, CE
