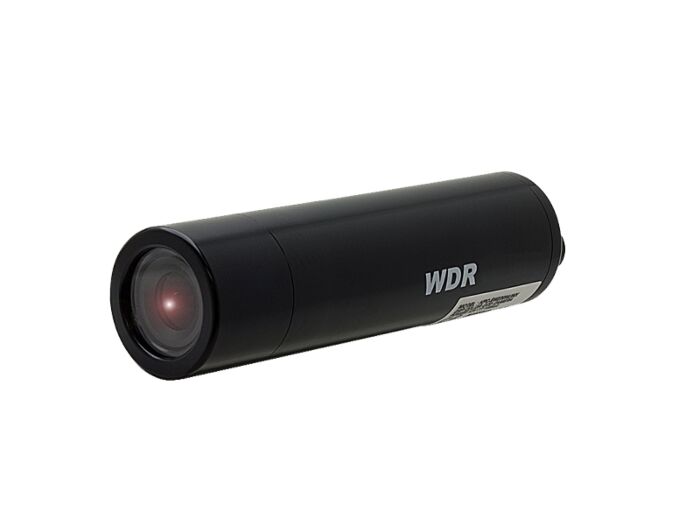

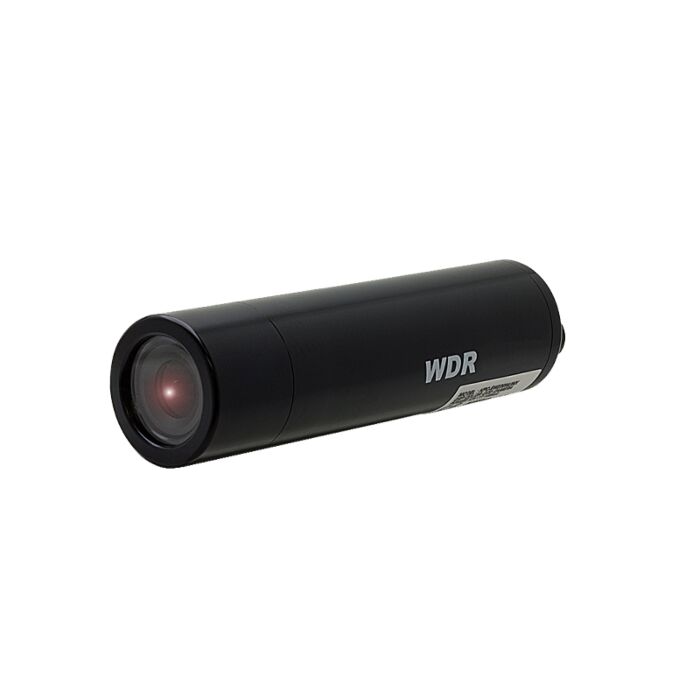

KT&C KPC-EW230NUWX (KPCEW230NUWX) 750TVL WDR Miniature Bullet Camera
1028 x 508 Total Pixels, 1/3” 960H Sony Double Scan Super HAD CCD II, Fixed Board Lens - 3.6, 4.3, 6.0, 8.0, 12.0 mm.
SKU
KPC-EW230NUWX
The KT&C KPC-EW230NUWX 960H WDR Mini Bullet Security Camera is the latest version of a popular series with heavily upgraded technology for superb video security. The unit is now equipped with a cutting-edge 960H double scan CCD sensor yielding stunning 750TVL and offering WDR (Wide Dynamic Range) function for the most challenging lighting. Intelligent design allows support for a variety of lens options and the units include a rugged outdoor ready casing. The ultra-low light abilities and fully loaded image enhancements allow the KT&C KPC-EW230NUWX to stand as a best in class selection.
KPC-EW230NUWX Features:
KPC-EW230NUWX Applications:
| Image Sensor | 1/3“ 960H Sony Double Scan Super HAD CCD II |
| Horizontal Resolution | 750 TV Lines |
| Scanning System | 2:1 Interlace |
| Scanning Frequency | 15.734 KHz X 59.94 Hz |
| Total Pixels | 1020 x 508 |
| Effective Pixels | 976 x 494 |
| Synchronization | Internal |
| Lens | 3.6, 4.3, 6.0, 8.0, 12.0 mm |
| Lens Type | Fixed Board Lens |
| S/N | More than 50dB (AGC: Off, DNR: On) |
| Gamma | r = 0.45 |
| Min. Illumination | 0.1 Lux (30 [email protected], AGC: 36dB), 0.000001 Lux (DSS: x256) |
| Shutter Speed | 1/60 ~ 1/100,000 sec |
| Day & Night | Digital Day & Night |
| Day & Night Function | Auto, Color, B/W |
| IP Rating | IP67 (Weather Proof) |
| Video Output Level | 1.0 Vp-p Composite (75 Ω) |
| On-Screen Display (OSD) | Built-in (Joystick) |
| BLC | Off, BLC, HLC |
| DNR | 3D DNR |
| White Balance | ATW, Push, User1, User2, Anti CR, Manual, Push-lock |
| Privacy Masking | 15 Zones (Area Adjustement) |
| Mirror | Image reverse (NORMAL/FLIP) |
| Motion Detection | 4 Zones (Level adjustable, Area adjustment) |
| WDR | On / Off (Level adjustable) |
| Digital Zoom Ratio | 3X |
| Digital Slow Shutter | Off, 2 ~ 256 Field |
| Other Function | Brightness, Contrast, Sharpness, HUE, Gain |
| Language Option | English, Japanese, German, French, Russian, Portuguese, Spanish |
| Operating Temperature | 14 °F ~ 122 °F (-10 °C ~ 50 °C) |
| Storage Temperature | -4 °F ~ 140 °F (-20 °C ~ 60 °C) |
| Power Supply | DC 12V (±10%), Max. 140mA |
| Dimensions | Ø0.9 x 3.3 inch (Ø23 x 85 mm) |
| Weight | 0.15 lbs (68 g) |
