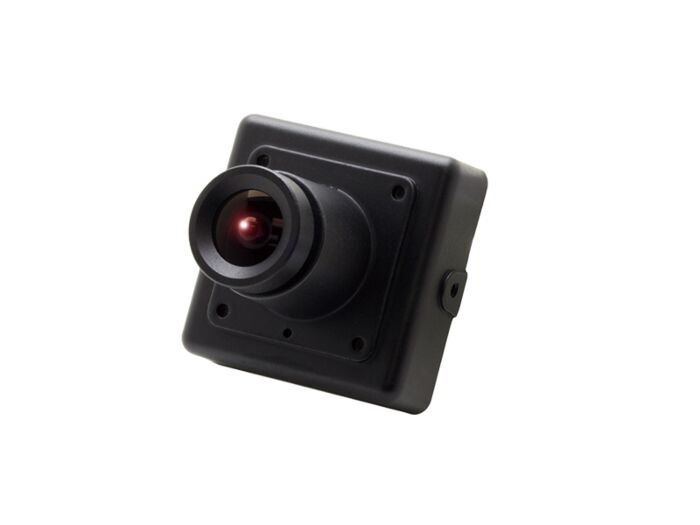

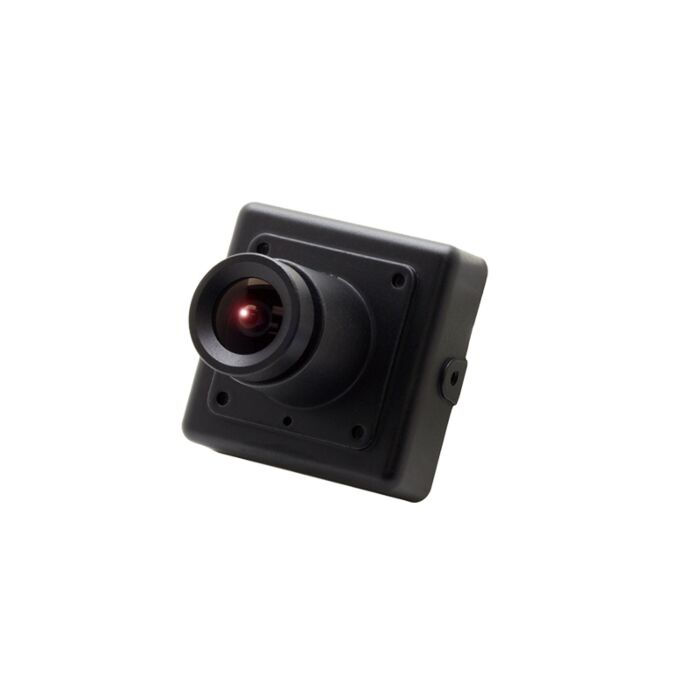

KT&C KPC-E700NU (KPCE700NU) 750TVL Miniature Square Camera

1020 x 508 Total Pixels (H x V), 1/3” 960H SONY EXview HAD CCD II, 750TV Lines.
SKU
KPC-E700NU

The KT&C KPC-E700NU HD pinhole camera is equipped with 1/3”960H Interline CCD which delivers an ultra-high resolution of 700 TV lines. It features high color reproduction, which delivers the true colors of an image. It has a fast shutter speed, ranging between 1/60 ~ 1/100,000 sec.

Features:

  • 1/3” 960H SONY EXview HAD CCD II
  • 750TVL Horizontal Resolution
  • f = 3.6, 4.3, 6.0, 8.0, 12, 16 mm
  • Fixed Board Lens
  • Digital Day & Night (Optional)
  • Size: 1.2 x 1.2 inch (30 x 30 mm)
  • Min. Illumination of 0.1 Lux
  • 2D DNR / BLC / HLC / ATR
  • DC 12V Power

  • Applications:
  • Security
  • Surveillance/CCTV
  • Meetings
  • Industrial
  • Signal System NTSC
    Image Sensor 1/3” 960H SONY EXview HAD CCD II
    Scanning System 2:1 Interlace
    Horizontal Resolution 750TV Lines
    Scanning Frequency (H) 15.734 KHz
    Scanning Frequency (V) 59.94 Hz
    Total Pixels (H x V) 1020 x 508
    Effective Pixels (H x V) 946 x 494
    Synchronization Internal
    Lens 3.6, 4.3, 6.0, 8.0, 12, 16 mm
    Lens Type Fixed Board Lens
    S/N More than 50dB (AGC: Off)
    Gamma r = 0.45
    Min. Illumination 0.1 Lux
    Shutter Speed 1/60 ~ 1/100,000sec
    Day & Night Digital Day & Night (Optional)
    Day & Night Function Auto, Color, B/W1
    Video Output Level 1 Vp-p Composite (75 Ω)
    On-Screen Display (OSD) Built-in (Inner Key / Joystick)
    BLC Off, BLC, HLC
    DNR 2D DNR
    ATR On / Off (Level Adjustable)
    White Balance ATW, Push, User1, User2, Anti CR, Manual, Push-lock
    Privacy Masking 4 Zones
    Mirror On / Off
    Motion Detection 4 Zones
    Other Function Brightness, Contrast, Sharpness, HUE, Gain
    Language Option English, Japanese, German, French, Russian, Portuguese, Spanish, Chinese
    Operating Temperature 14 °F ~ 122 °F (-10 °C ~ 50 °C)
    Storage Temperature -4 °F ~ 140 °F  (-20 °C ~ 60 °C)
    Humidity Less than 80% RH
    Power Supply DC 12V (±10%), Max. 70mA
    Dimension 1.2 x 1.2 inch (30 x 30 mm)
    Weight 0.2 lbs (81 g)
