  • KT&C KPC-BSP6300NU 750TVL Security Camera Image

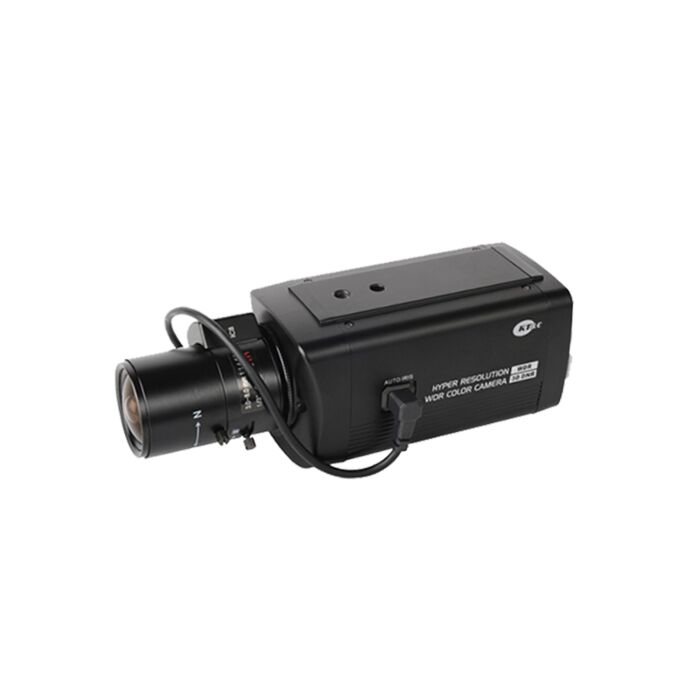

KT&C KPC-BSP6300NU 750TVL Security Camera

Quick Overview

1020 x 508 Total Pixels, 1/3" 960H Interline CCD, C/CS Mount, Manual / DC.
Overview

The C/CS mount lens KT&C BSP6300NU camera with 1/3“ 960H Interline CCD image sensor is a rectangular surveillance camera. It is a day and night camera with two-dimensional digital noise reduction technology for delivering flicker free and interference free footages of the targeted area. This highly advanced camera with various add-on features makes your surveillance system more powerful.

Features:

  • 1/3” SONY ExView Super HAD CCD II
  • 700TVL Horizontal Resolution
  • True Day & Night (ICR)
  • C/CS Mount Lens
  • Fast Shutter Speed (1/60 - 1/100,000 sec)
  • 2D Digital Noise Reduction (2D DNR)
  • Adaptive Tone-curve Reproduction (ATR)
  • Back Light Compensation (BLC)
  • Highlight Compensation (HLC)
  • 4-Zone Privacy Masking
  • 4-Zone Motion Detection
  • Mirror /Brightness / Contrast / Sharpness / HUE/ Gain
  • On Screen Display (OSD) Menu with Multi Language Support
  • DC12V / AC24V Dual Power
  • Multi-Language OSD

  • Application:
  • Security
  • Surveillance/CCTV
  • Meetings
  • Industrial
  • Specifications
    Image Sensor 1/3″ 960H Interline CCD
    Scanning System 2 : 1 Interlace
    Scanning Frequency H: 15.734 (KHz), V: 59.94 Hz
    Total Pixels 1020 x 508
    Effective Pixels 976 x 494
    Synchronization Internal
    Horizontal Resolution 700TVL
    Lens C / CS Mount
    Lens Type Manual / DC
    S/N Ratio More than 50dB (3DNR On)
    Gamma r = 0.45
    Min. Illumination 0.0001 Lux / Faceplate
    Shutter Speed 1/60 ~ 1/1,000,000 sec
    Video Output Level 1 Vp-p Composite (75 Ω)
    Day & Night  True Mechanical Day & Night (ICR)
    Day & Night Function Auto / Color / BW
    On-Screen Display (OSD) Built-in
    BLC Off / BLC / HLC
    2DNR On / Off (Level Adjustable)
    ATR On / Off (Level Adjustable)
