  • KT&C KNC-HDi47P4 Mini Square Megapixel IP Camera Image

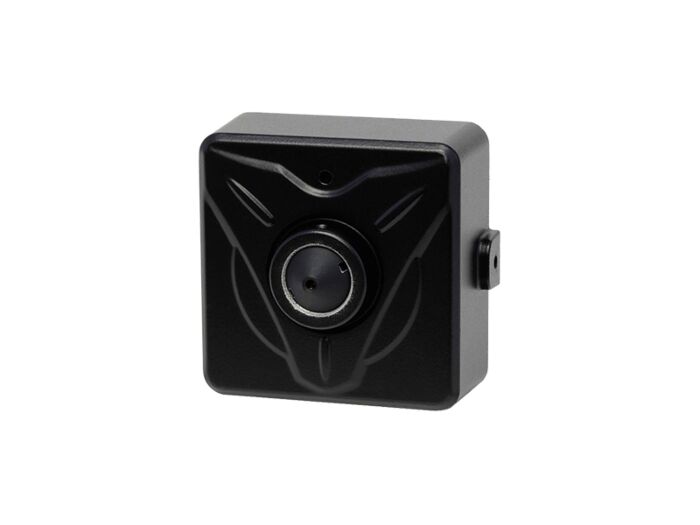

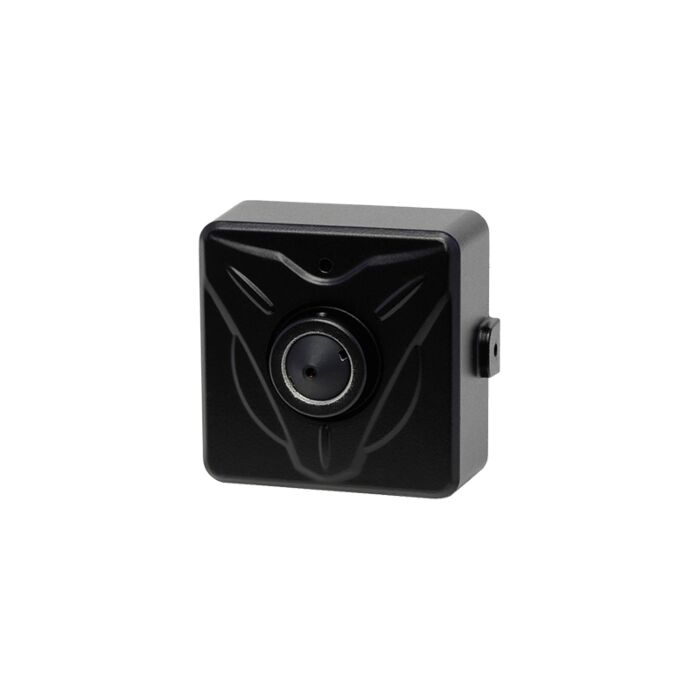

KT&C KNC-HDi47P4 Mini Square Megapixel IP Camera

Quick Overview

1920 x 1080 Effective Pixels, 2.1 Megapixel, 1/2.8″ SONY Exmor Progressive CMOS.
Overview The KT&C KNC-HDi47P4 2.43Mp Full HD D/N Network Square Camera.

Features:

  • 1/2.8″ SONY Exmor Progressive CMOS
  • 1920 x 1080 @ 30fps
  • H.264 & Motion JPEG
  • Micro SD/SDHC card support up to 32GB
  • Built-in Microphone
  • Digital Day and Night
  • BLC, D-WDR, 3D DNR
  • Multiple Network Protocols Support
  • Multiple User Access with Password Protection
  • 4.3mm Megapixel Super Cone Pinhole Lens
  • Compression, Brightness, Contrast, Saturation, Hue, Sharpness, White balance, Exposure Control Analog Service Output
  • PoE, DC12V

  • Applications:
  • Education
  • Security
  • Surveillance/CCTV
  • Meetings
  • Industrial
  • Specifications
    Image Sensor 2.1 Megapixel, 1/2.8″ SONY Exmor Progressive CMOS
    Video/Compression H. 264 / Motion JPEG
    Resolution 1080P, SXGA, 720p, D1, CIF
    Frame Rate H.264 : 30fps / Motion JPEG : 30fps
    Video Streaming Multi-stream H.264 and Motion JPEG: simultaneous, individually configured streams in max. resolution at 30 fps controllable frame rate and bandwidth
    Image Setting Option Compression, brightness, contrast, saturation, hue, sharpness, white balance, exposure control, rotation of images, text and image overlay, privacy mask
    Min. Illumination 0.1 Lux / F2.0
    Lens 4.3mm Megapixel Super Cone Pinhole Lens
    Day & Night Digital Day and Night
    Network Security Multiple user access levels with password protection
    Network Supported Protocols IPv4, HTTP, TCP, RTSP, RTP, UDP, IGMP, RTCP, SMTP, FTP, ICMP, DHCP, ARP, DNS, DDNS, HTTPS, UPnP
    Application Programming Interface (API) Open API for software Integration, Including API and SDK
    Intelligent Video Video Motion Detection
    Local Storage Recording video streams or JPEG images when event triggered video streams or JPEG can be downloaded by internal web server
    Alarm Triggers  Intelligent video, external inputs, manual triggers
    Alarm Events File upload via FTP, notification via e-mail, external output activation recording Video or JPEG using Micro-SD : recording video streams or JPEG images when event trigged, video streams or JPEG can be downloaded by internal web server
    Interfaces Other RJ-45 for Ethernet 10baseT/100baseTX with PoE (Power over Ethernet)
    Analog composite output (for Service Video)
    Cropping video display button for easy focus setting
    Operating Temperature/Condition -10 °C ~ 50 °C (14 °F ~ 122 °F) / Humidity 20~80% RH (non-condensing)
    Power Supply  PoE (Power over Ethernet) Class 3 (IEEE 802.3af), DC12V
    Dimension 51.5mm (H) x 47.5mm (D) x 35mm
