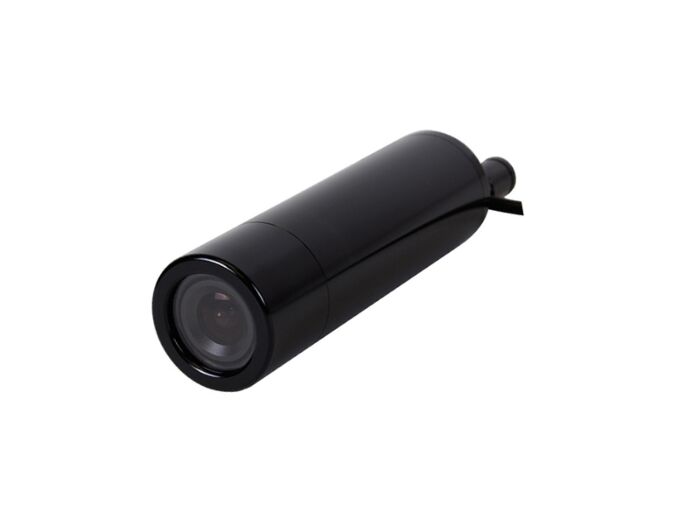

  • KT&C KNC-HDBi230 IP Miniature Bullet Camera side Image
  • KT&C KNC-HDBi230 IP Miniature Bullet Camera front Image
  • KT&C KNC-HDBi230 IP Miniature Bullet Camera side mounted Image

KT&C KNC-HDBi230 IP Miniature Bullet Camera

Quick Overview

2000 x 1241 Total Pixels (H x V), 2.43 Megapixel, 1/2.8″ SONY Exmor CMOS.
Overview The KPC-HDBi230 HD IP Mini Bullet Camera, Low Lux 0.1, 3D DNR, Digital Day Night.

Features:
  • Member of Onvif
  • 2.43 Megapixel, 1/2.8″ SONY Exmor CMOS
  • Board: 3.7 mm (3 MP), 8 mm Lens (1.3 MP)
  • Pinhole: 4.3 mm P4 Lens (1.3 MP)
  • Digital Day & Night
  • Size: Φ23 x 96.3 mm
  • Min. Illumination of 0.1 Lux
  • 3D DNR / BLC / D-WDR
  • IP66 (Weatherproof)
  • DC 12 V Power

  • Applications:

  • Security
  • Surveillance/CCTV
  • Meetings
  • Industrial
  • Specifications
    Image Sensor 2.43 Megapixel, 1/2.8″ SONY Exmor CMOS
    Total Pixels (H x V) 2000 x 1241
    Day & Night Digital Day & Night
    Min. Illumination 0.1 Lux / F2.0
    IR LED / Distance N/A
    Shutter Speed 1/30 ~ 1/8000
    Lens Board: 3.7 mm (3 MP), 8 mm Lens (3 MP)
    Pinhole: 4.3 mm P4 Lens (1.3 MP)
    Lens Type Fixed Board or Pinhole Lens
    Maximum Resolution H.264: 1920 x 1080 (16:9)
    MJPEG: 1280 x 720 (16:9)
    Frame Rate H.264: 30 fps / MJPEG: 30 fps
    Compression H.264 / MJPEG
    Streaming Dual-Stream at different frame rate and bandwidth
    Digital Slow Shutter Off, 2x, 4x (Auto)
    Image Settings Brightness, Contrast, Saturation, Sharpness, White balance, Exposure Control, Rotation, of images, Text and image overlay, Privacy masking, BLC, D-WDR, 3D DNR
    Streaming N/A
    Compression N/A
    Input / Output N/A
    LAN Ethernet 10/100 Base-T (RJ-45 Type)
    Security Multiple user access levels with password protection, HTTPS (SSL)
    Protocol IPv4, HTTP, TCP, RTSP, RTP, UDP, IGMP, RTCP, SMTP, FTP, ICMP, DHCP, ARP, DNS, DDNS, HTTPS, UPnP
    ONVIF Compliant Yes
    Interface OS: Windows XP, Vista, 7 Browser: Internet Explorer
    Record Schedule Continuous, Motion, Sensor, Pre & Post Alarm
    Video Motion Detection Yes
    Alarm Triggers Intelligent video, manual triggers, network fail, SD card scheduling, reboot
    Alarm Events JPEG image upload via FTP & Email, notification via E-mail, recording AVI or JPEG using Micro-SD
    Processors CPU : ARM 1136J-S
    Memory RAM: 256 MB, Flash: 256 MB
    Power PoE class 3 (IEEE 802.3af) DC 12 V 200 mA
    Interface Service video connector Power (DC 12 V) Input Status LED
    Local storage Fixed MicroSD/SDHC up to 32 GB
    IP Rating IP66 (Weatherproof)
    Operating Temperature -10 °C ~ 50 °C (14 °F ~ 122 °F)
    Conditions Humidity 20 ~ 80% RH (No Condensing)
    Dimension Φ23 x 96.3 mm (0.9 x 3.8 inch)
    Weight 118 g (0.3 lb.)
