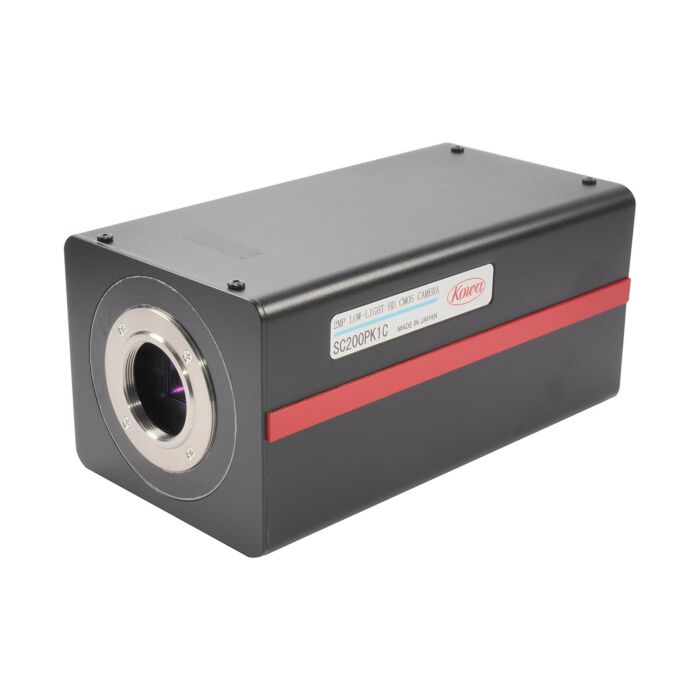

Kowa SC200PK1C 2/3” CMOS 2MP Color 0.005 Lux Low Light Camera

Quick Overview

The SC200PK1C is able to deliver a color image even in very dark surroundings and is thus ideal for high-end surveillance solutions.
Overview

The SC200PK1C is able to deliver a color image even in very dark surroundings and is thus ideal for high-end surveillance solutions.

The 2/3 "CMOS 2MP (1080p / 30f - HDTV) color camera delivers even at 0005 Lux. This is possible through a new sensor, similar to the highly sensitive EMCCD sensors. The camera has a 16x image storage for sensitivity enhancement and 3D-noise reduction.

A day/night function, enables the camera to be ultra-high sensitive for observation under IR illumination.

Kowa's new aspheric, high-speed JS5MA lens series (F0.8 / F0.85) is designed to fit perfectly with this low-light camera. Available focal lengths include 25mm, 35mm and 60mm.

Features:

  • Resolution:  1920 H x 1080 V (2.2 Megapixels)
  • Imager Size: 2/3" (CMOS)
  • Output: HD-SDI & Composite (NTSC/PAL)
  • Color/Monochrome: Color (with Day/Night)
  • Mount: CS-Mount

  • Applications:

  • Low Light Applications
  • Surveillance and Low Light Surveillance
  • Security (Especially at Night)
  • Specifications
    Imaging Device 2/3" CMOS
    Valid Pixels Approx. 2M Pixels
    Pixel Size 5.0µm
    Scanning Method Progressive
    Minimum Illumination 0.005Lux (F1.4) 30 fps
    S/N Ratio More than 50dB
    Synchronization Internal/External
    Gain 0-72dB
    Shutter Type Rolling Shutter
    Lens Mount CS
    Iris Control DC
    Day & Night IR Cut Filter ON/OFF
    Video Output HD : HD-SDI / SD : NTSC, PAL
    Output Format 1920 x 1080, 1280 x 720
    29.97 30 60 25 50
    Remote Control RS-485
    Input Voltage DC12V
    Power Consumption Lower than 7W
    Size (mm) 78 (W) x 66 (H) x 146 (D)
    Weight 600g
