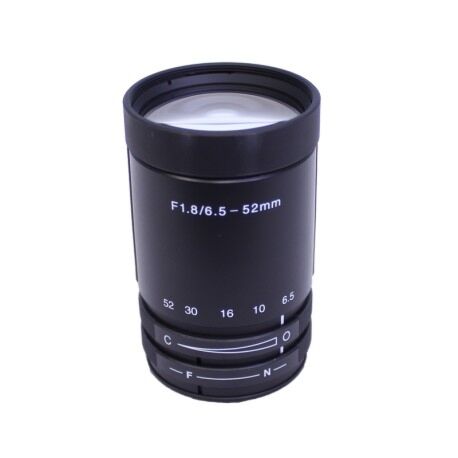

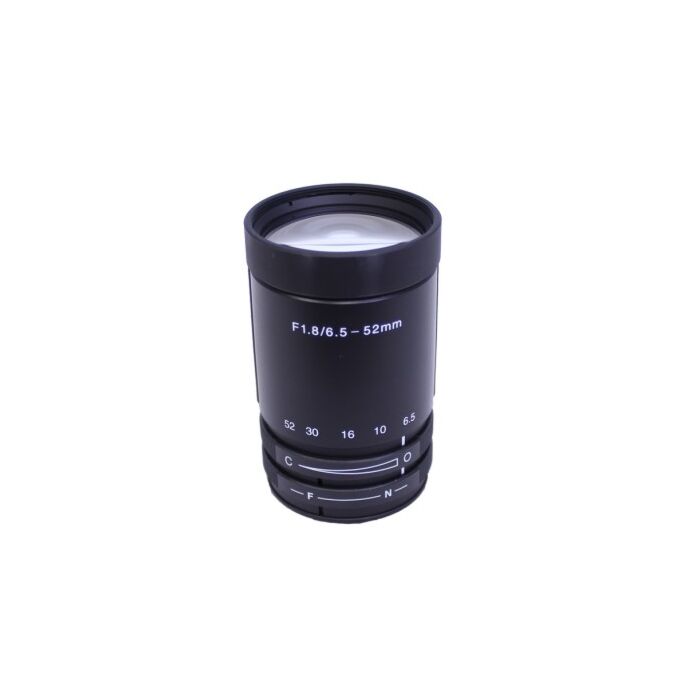

Kowa LMVZ655 6.5-52mm 1/2" Format Varifocal Lens
1/2", F1.8-Close, C-Mount.
SKU
Kowa LMVZ655
The LMVZ655 is a manual focus lens that utilizes Kowa's 3-CAM design, which solves de-centering issues common in pole system lenses and reduces internal reflection.
Features:
| Focal Length (mm) | 6.5~52 (8×) |
| Image Size (mm) | 6.4×4.8 (Φ8) |
| Iris Range (F-stop) | F1.8 ~ Close |
| Focusing Range (m) |
0.2 ~ ∞
|
| Control | Iris: Manual Focus: Manual |
| Shooting Range at M.O.D. (mm) | W228.2×171.3/T124.1×92.9 |
| Angle Of View (Degrees) | 1/2": W54.8×41.1/T7.1×5.4 1/3": W41.1×30.8/T5.4×4.0 |
| TV Distortion (%) | W−1.2/T0.1 |
| Back Focus in Air (mm) | W10.2/T13.1 |
| Mount | C-Mount |
| Filter Thread (mm) | M43×P0.75 |
| Size (mm) | Φ46×73.5 |
| Weight (g) | 163 |
| Temperature Range | −10°C~+50°C |
