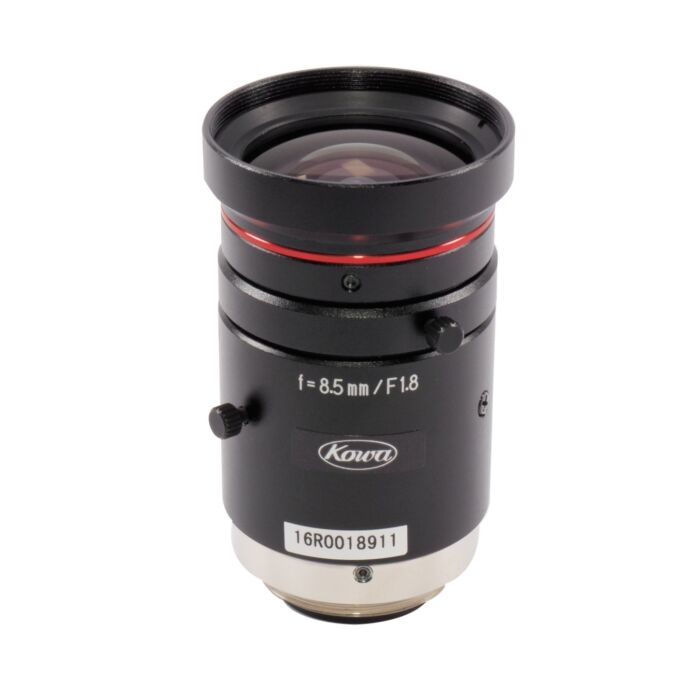

Kowa LM8JC10M 2/3" 8mm 10 Mega Pixel Lens
2/3", F1.8-22, Manual Iris.
SKU
LM8JC10M
Kowa's new line up of 2/3" Megapixel lenses especially designed for 10MP sensors. The complete range contains 7 different models with focal length starting at 5mm up to 50mm. The advanced optical design of the new 10MP lens series is supported by incorporating aspherical lens elements and the usage of special XD glass (eXtra low Dispersion). All lenses are made of at least 7 up to 9 lens elements in order to achieve the exceptional requirements on resolution and contrast.
Features:
| Format Size | 2/3" |
| Focal Length | 8.5 mm |
| Iris Range | F 1.8 - 22 |
| Focusing range (m) | 0.1 - ∞ |
| Control (Iris/Focus) | Manual |
| Shooting range at MOD (mm) | 133(H) x 99(V) |
| Resolution (center, corner) | 200lp/mm, 160lp/mm |
| Distortion (TV) | 0.31% |
| Back focus in air (mm) | 12.1 |
| Filter size (mm) | M34 x P0.5 |
| Size (mm) | 36 X 56 |
| Weight (g) | 115g |
| Temperature range (℃) | -10℃ - +45℃ |
