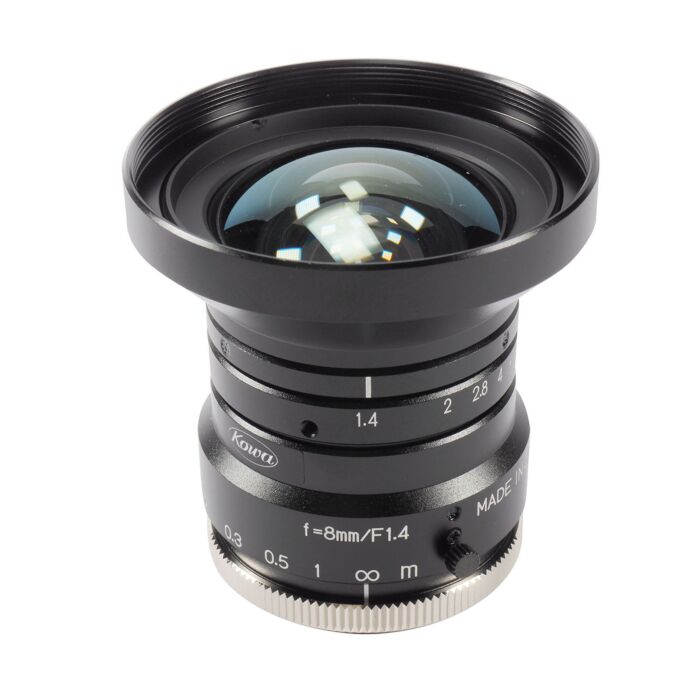

  • Kowa LM8HC Image # 1

Kowa LM8HC 1" 8mm Megapixel Industrial FA Lens

Quick Overview

1", 8mm, Megapixel Lens.
Overview

Introducing Kowa's lineup of megapixel lenses designed for 1" megapixel cameras. 1" megapixel HC lenses have low distortion, excellent light transmission, and can be used with smaller format size cameras.

Features:

  • Excellent Corner Brightness
  • Perfect for Large Format 1" Megapixel Applications
  • Low Distortion
  • High Performance and Compact
  • Specifications
    Focal Length (mm) 8 mm
    Image Size (mm) 12.8x9.6 (Φ16)
    Iris Range F 1.4 - 16
    Focusing range (m) 0.1 - ∞
    Iris Manual
    Focus  Manual
    Shooting range at MOD (mm) 196.0 x 143.2
    Angle of View (Degrees) 1": 79.4 x 63.0
    2/3": 58.3 x 44.7
    1/1.8": 48.5 x 36.9
    Resolution (Center, Corner) 120lp/mm, 80lp/mm
    TV Distortion (%) -1.2
    Back Focus in Air (mm) 11.2
    Mount C-Mount
    Filter Thread (mm) M55xP0.75
    Size (mm) Φ57 x 58
    Weight 205
    Temperature Range -10°C - +50°C
