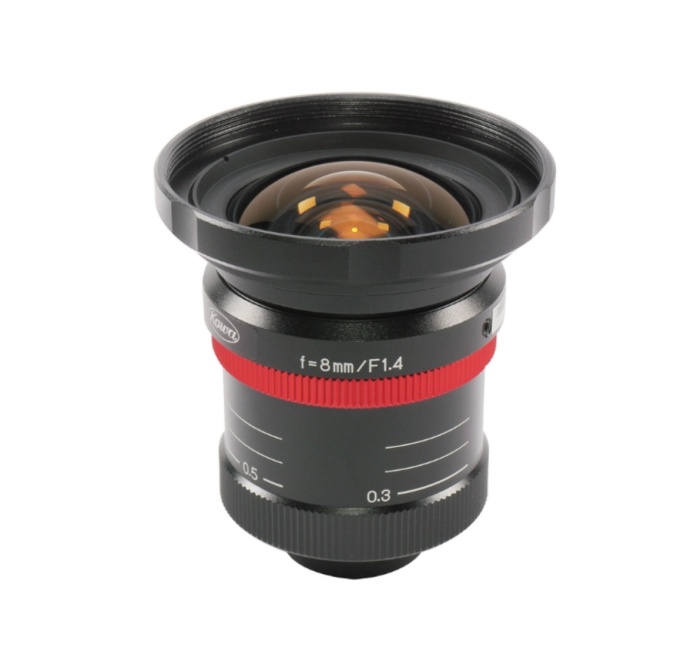

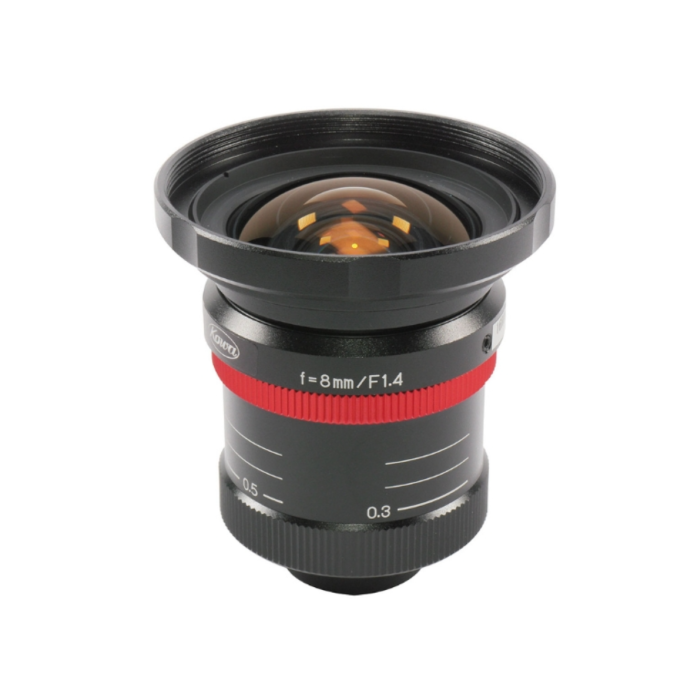

Kowa LM8HC-V (LM8HCV) 1" Format 8mm Anti-Vibration Megapixel Lens
1", 8mm, F1.4/F2.8/F4/F8, C-Mount, MP, Anti-Vibration
SKU
LM8HC-V
Kowa’s new HC-V series is made for use in high vibration and high shock environments. With a design based on Kowa’s standard 1 inch HC lenses this ruggedized megapixel lens series is ideal for applications that require increased durability and high optical performance. All internal glass elements of this series are glued. A two way reversible nut is utilized to tightly lock the focus adjustment ring in place. Interchangeable iris plates which can be glued are used to select the F-stop.
Features:
| Focal Length | f=8mm |
| F-Number | F=1 : 1.4, 2.8, 4, 8 |
| Picture Size | 9.6x12.8mm |
| Angle Of View | Ver. Angle - 63.0° Hor. Angle - 79.7° Dia. Angle - 92.4° |
| Distortion | -1.2% |
| Field Of View | Ver. Angle -143 mm Hor. Angle - 196 mm Dia. Angle - 247 mm |
| Minimum Focus Distance | 0.1m |
| Flange Back | 17.526 mm in air |
| Back Focus | 11.2 mm in air |
| Filter Screw Size | M55x0.75 |
| Front/Rear Effective Dia. | Front Φ37.4mm / Rear Φ17.5mm |
| Mount | C-Mount |
| Exit Pupil | -45.9mm |
| Temperature Range | -10°C ~ +50°C |
| Storage Temperature Range | -20°C ~ +60°C |
| Resolution Center/Corner | Center 120lp/mm / Corner 100lp/mm |
| Weight | 183g |
