  • Kowa LM8HC-SW Image # 1

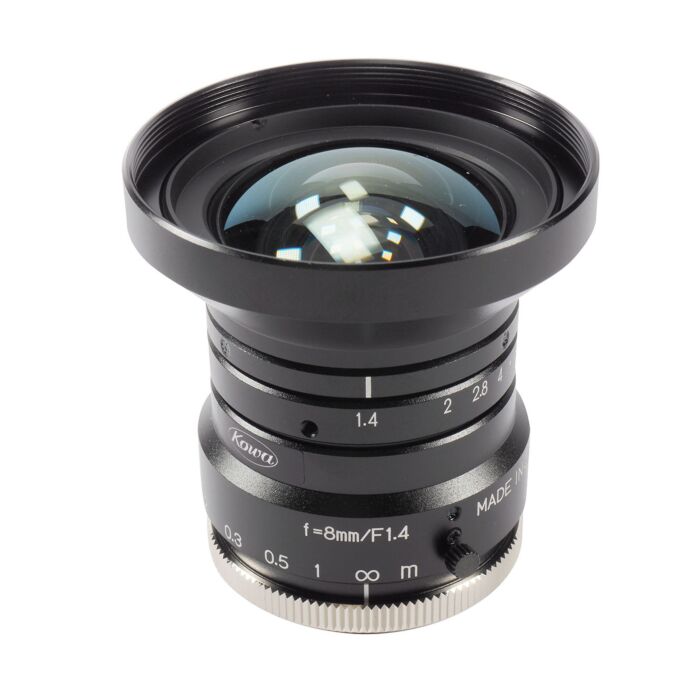

Kowa LM8HC-SW 1" 8mm Lens

Quick Overview

1", 8mm, SWIR Lens.
Overview

Incorporating Kowa's special coating technology, the 1" format HC-SW series maintains high transmission from 800nm to 2000nm. These lenses are designed for NIR and Short Wavelength Infrared (SWIR) applications.

Features:

  • High Transmission from 800nm to 1900nm
  • Infrared
  • IR Corrected Design
  • Specifications
    Focal Length (mm) 8 mm
    Image Size (mm) 12.8x9.6 (Φ16)
    Iris Range F 1.4 -16
    Focusing range (m) 0.1 - ∞
    Iris Manual
    Focus  Manual
    Shooting range at MOD (mm) 196.0 x 143.2
    Angle of View (Degrees) 1": 79.4 x 63.0
    2/3": 58.3 x 44.7
    1/1.8": 48.5 x 36.9
    TV Distortion (%) -1.2
    Back Focus in Air (mm) 11.2
    Mount C-Mount
    Filter Thread (mm) M55 x P0.75
    Size (mm) Φ57 x 58
    Weight 205
    Temperature Range -10°C - +50°C
