  • Kowa LM50XC Image # 1

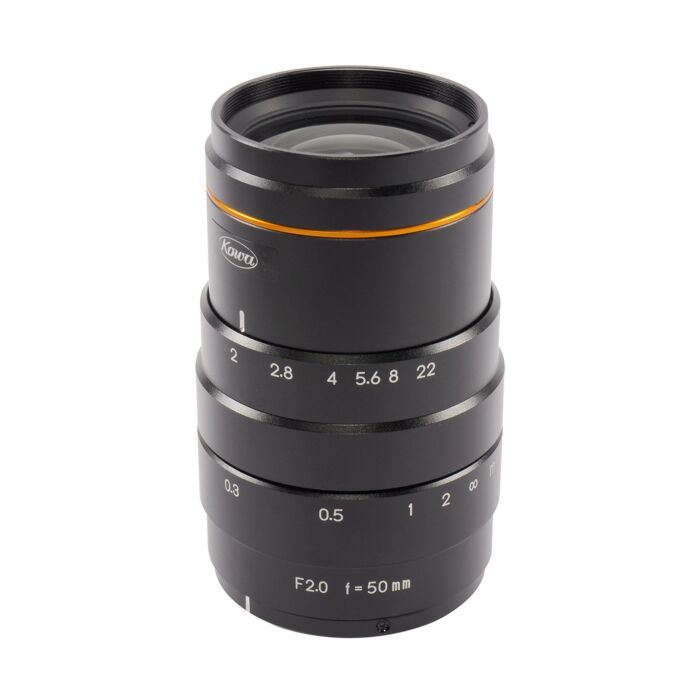

Kowa LM50XC 4/3" Format 50mm Megapixel Lens

Quick Overview

4/3" Format, 50mm, Megapixel Lens.
Overview

The 4/3" megapixel XC lens series provides a large image format of Φ23mm(C-mount). These high precision aspherical lenses greatly reduce distortion and produces a high definition picture. XC lenses maintain megapixel resolution thoughout the entire image even if the iris is fully open. In addition, Kowa's wide-band multi-coating effectively reduces glare and refraction.

Specifications
Focal Length (mm) 50mm
Image Size (mm)

18.4×13.8 (Φ23)

Iris Range F2.0~F22
Focusing Range (m)
.3~∞
Control
Iris: Manual
Focus: Manual
Shooting Range at M.O.D. (mm)
100.2(H)×75.5(V)
Angle of View (Degrees)
4/3": 20.6×15.7
1": 14.6×11.0
2/3": 10.1×7.6
Resolution (Center, Corner)
160lp/mm, 80lp/mm
TV Distortion (%)
0.80
Back Focus in Air (mm)
21.6
Mount
C-Mount
Filter Thread (mm)
M37.5×P0.5
Size (mm)
Φ47×78
Weight (g) 235
Temperature Range −10°C~+50°C
No Video available
Kowa LM50XC
