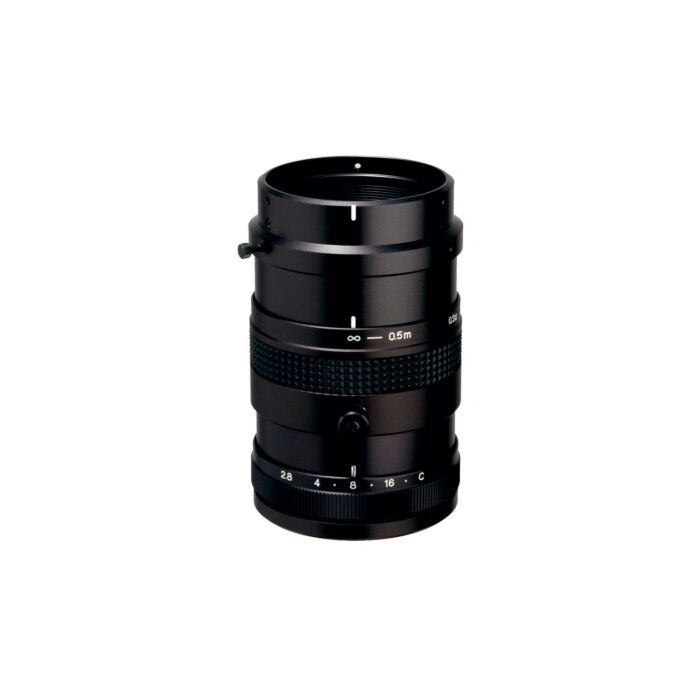

  • Kowa LM50TC Image 1

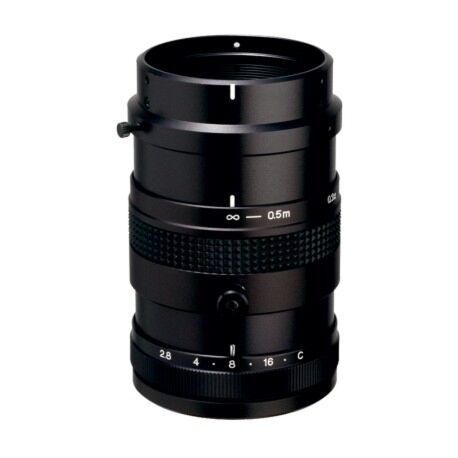

Kowa LM50TC 2/3" 0.3-1.0x Telecentric Macro Zoom Lens

Quick Overview

2/3", 0.3-1.0x, C-Mount, Megapixel Plus, Telecentric Macro Zoom
Overview

A telecentric optical system is often critical in machine vision systems. The LM50TC is Kowa's unique optical design seamlessly incorporates zoom capability with the telecentric function, wide telecentric "magnification" ranges from 0.5x to 1.0x, 0.3x to 1.0x for macro-use.

Features:

  • Format Size 2/3"
  • Focal Length 50mm
  • Iris Range F2.8-Close
  • Mount C
  • Horizontal Angle1/2" 7.3 degree, 2/3" 10.0 degree
  • Specifications
    Focal Length (mm) 50mm
    Image Size (mm) 2/3" (⌀11)
    Focusing Range (m) F2.8-Close
    Iris Control Manual
    Focus Control Manual
    Magnification
    Angle of View (degrees) 2/3" - 10 x 7.5
    1/2" - 7.3 x 5.5
    1/3" - 5.5 x 4.1
    Corner Brightness 97%
    Distortion (TV) 0.1% (1.0X)
    Back Focus in Air (mm) -0.3% (0.5X)
    Mount C-Mount
    Filter Size (mm) M37.5XP0.5
    Weight (g) 317
    Temperature Range -10°C - 45°C
