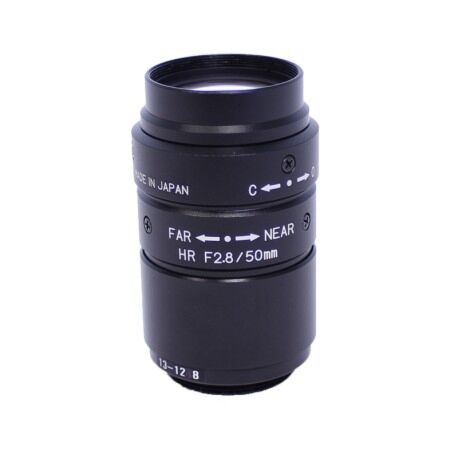

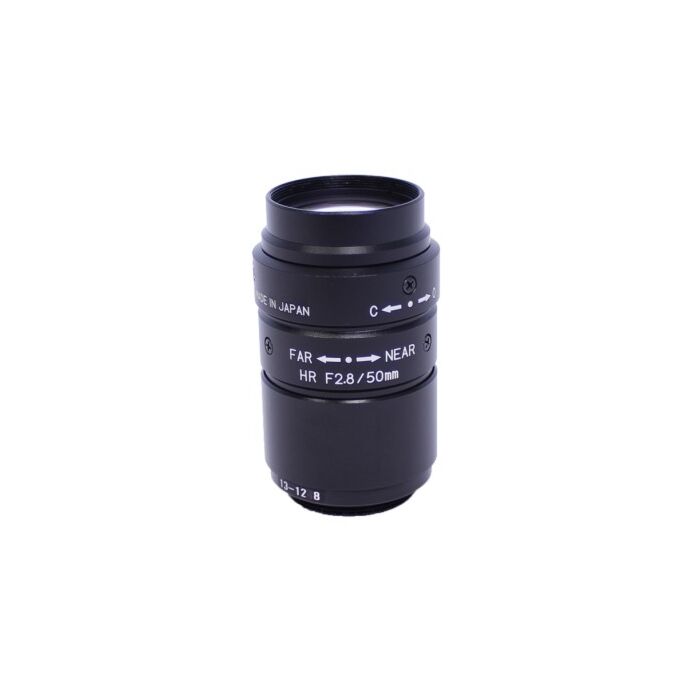

Kowa LM50JCM 2/3" 50mm Megapixel Lens
2/3", 50mm, Megapixel Lens.
SKU
LM50JCM
This series of megapixel lenses offers super high resolution and utilizes the floating mechanism system. The new wide angle 5mm megapixel lens will pave the way for new possibilities in machine vision systems.
Features:
Applications:
| Focal Length (mm) | 50 |
| Lens Type | Fixed |
| Image Size (mm) | 2/3" (Φ11) |
| Iris Range (F-stop) | F2.8 ~ F22 |
| Focusing Range (m) | 0.2 ~ ∞ |
| Iris Control | Manual |
| Focus Control | Manual |
| Shooting Range at M.O.D. (mm) | 29.3(H) x 21.9(V) |
| Angle of View 2/3" (°) | 9.6 x 7.2 |
| Angle of View 1/2" (°) | 7.0 x 5.2 |
| Angle of View 1/3" (°) | 5.2 x 3.9 |
| Resolution (Center, Corner) | 120lp/mm, 100lp/mm |
| TV Distortion (%) | -0.03 |
| Back Focus in Air (mm) | 35.5 |
| Mount | C-Mount |
| Filter Thread Size (mm) | M27 x P0.5 |
| Flange Back in Air (mm) | 17.526 |
| Front/Rear Effective DIA (mm) | Φ21.7, Φ14.6 |
| Exit Pupil (mm) | -63.7 |
| Size (mm) | Φ34 x 55 |
| Weight (g) | 92 |
| Temperature Range (°C) | -10 ~ +45 |
