  • Kowa LM50JC3M2 Image # 1

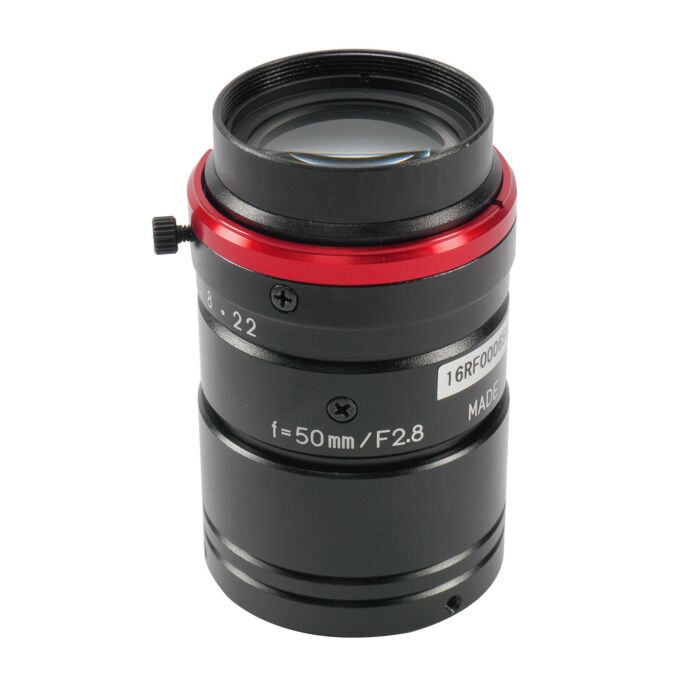

Kowa LM50JC3M2 2/3" Format 50mm Megapixel Lens

Quick Overview

2/3", 50mm, Megapixel Lens.
Overview

Features:

  • Kowa's wide-band multi-coating effectively decreases glare and refraction and produces a high transmission from the visible to NIR wavelength range.
  • Kowa's floating mechanism system virtually eliminates optical aberrations from close distance to infinity
  • Low distortion
  • Excellent corner brightness
  • Applicable on 1/1.2" as well
  • Specifications
    Focal Length (mm) 50 mm
    Image Size (mm) 8.8x6.6 (Φ11)
    Iris Range F 2.8 - F22
    Focusing range (m) 0.2 - ∞
    Iris Manual
    Focus  Manual
    Shooting range at MOD (mm) 29.3 x 21.9
    Angle of View (Degrees) 2/3": 9.6 x 7.2
    1/1.8": 7.9 x 5.9
    1/2": 7.0 x 5.2
    TV Distortion (%) -0.03
    Back Focus in Air (mm) 35.5
    Mount C-Mount
    Filter Thread (mm) M27xP0.5
    Size (mm) Φ34 x 55
    Weight 95
    Temperature Range -10°C - +50°C
