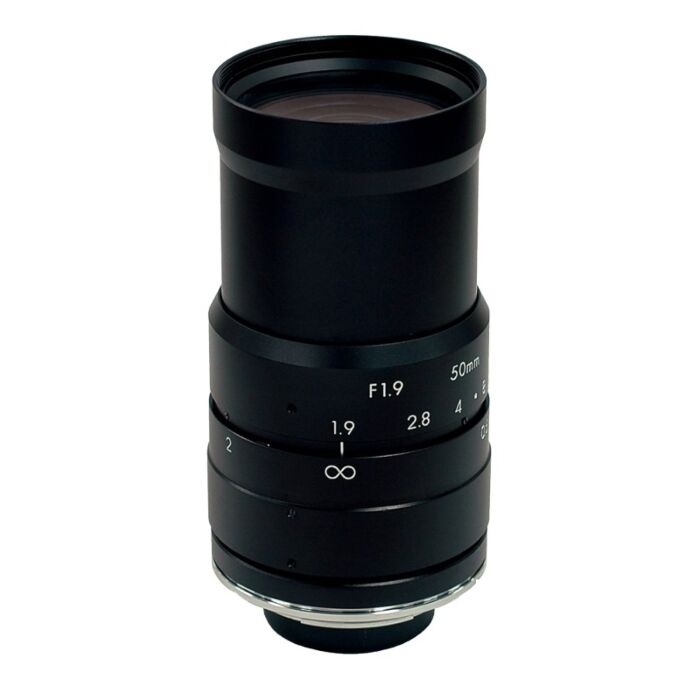

Kowa LM50IR Factory Automation Lens Large Format NIR

Quick Overview

Factory Automation Lens
Large Format NIR

Availability: In stock

More Views

Additional Information

Overview

Features:


  • Large format (43.3 mm image size)
  • IR Corrected Design
  • Broad Band Coating
  • Low distortion


Specifications



LM50IR
Focal Length (mm) 50
Image size (mm) ø43.3
IR Corrected Design IR Corrected Design
Iris range (f-stop) F1.9~F16
Focusing range (m) 0.5~∞
Control

Iris - Manual
Focus - Manual

Distortion (TV) ø43.3 -0.54%
Distortion (TV )ø22.5 -0.18%
Distortion (TV) ø16 -0.12%
Back Focal Length in air (mm) 34.6
Machanical Focal Length in air (mm) 34.1
Mount F & P mount
Flange back (F-mount) 46.5
Flange back (P-mount M42×1) 45.5
Filter size(mm) M52X0.75
Size (mm) φ58.5×117.5
Weight (g) 600g
Temperature Range -10℃~+45℃
Product Videos N/A

Features:


  • Large format (43.3 mm image size)
  • IR Corrected Design
  • Broad Band Coating
  • Low distortion




LM50IR
Focal Length (mm) 50
Image size (mm) ø43.3
IR Corrected Design IR Corrected Design
Iris range (f-stop) F1.9~F16
Focusing range (m) 0.5~∞
Control

Iris - Manual
Focus - Manual

Distortion (TV) ø43.3 -0.54%
Distortion (TV )ø22.5 -0.18%
Distortion (TV) ø16 -0.12%
Back Focal Length in air (mm) 34.6
Machanical Focal Length in air (mm) 34.1
Mount F & P mount
Flange back (F-mount) 46.5
Flange back (P-mount M42×1) 45.5
Filter size(mm) M52X0.75
Size (mm) φ58.5×117.5
Weight (g) 600g
Temperature Range -10℃~+45℃
