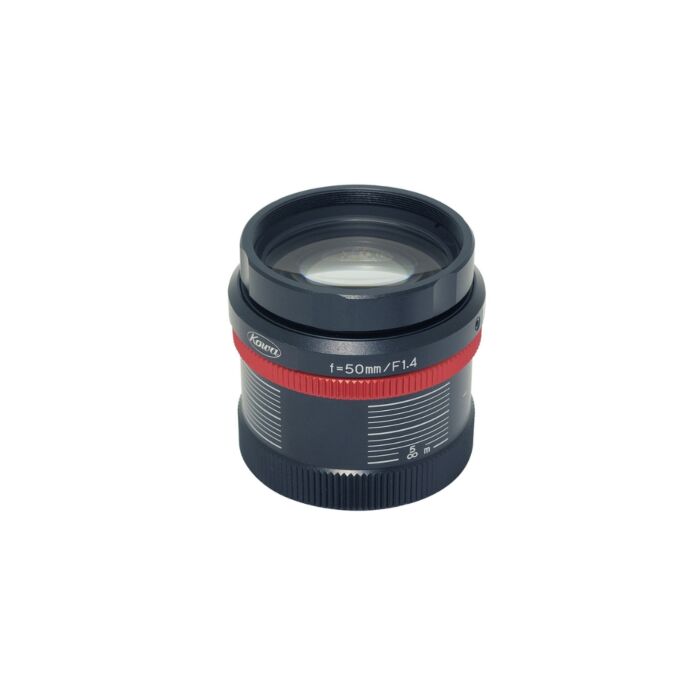

Kowa LM50HC-V (LM50HCV) 1" Format 50mm Anti-Vibration Megapixel Lens

1", 50mm, F1.4/F2.8/F4/F8, C-Mount, MP, Anti-Vibration
SKU
LM50HC-V

Kowa’s new HC-V series is made for use in high vibration and high shock environments. With a design based on Kowa’s standard 1 inch HC lenses this ruggedized megapixel lens series is ideal for applications that require increased durability and high optical performance. All internal glass elements of this series are glued. A two way reversible nut is utilized to tightly lock the focus adjustment ring in place. Interchangeable iris plates which can be glued are used to select the F-stop.

Features:

  • Megapixel Lens
  • Interchangeable iris plates
  • Two way reversible nut for focus adjustment
  • All internal lens elements glued
  • Metal mount
  • Metal housing
  • Focal Length f=35mm
    F-Number F=1 : 1.4, 2.8, 4, 8
    Picture Size 9.6x12.8mm
    Angle Of View Ver. Angle - 15.8°
    Hor. Angle - 20.9°
    Dia. Angle - 26.1°
    Distortion -0.5%
    Field Of View  Ver. Angle - 82.0 mm
    Hor. Angle - 110.1 mm
    Dia. Angle - 139.3 mm
    Minimum Focus Distance 0.3m
    Flange Back 17.526 mm in air
    Back Focus 16.8 mm in air
    Filter Screw Size M35.5x0.5
    Front/Rear Effective Dia. Front Φ24.3mm / Rear Φ19.1mm
    Mount C-Mount
    Exit Pupil -50.9mm
    Temperature Range -10°C ~ +50°C
    Storage Temperature Range -20°C ~ +60°C
    Resolution Center/Corner Center 120lp/mm / Corner 100lp/mm
    Weight 133g
