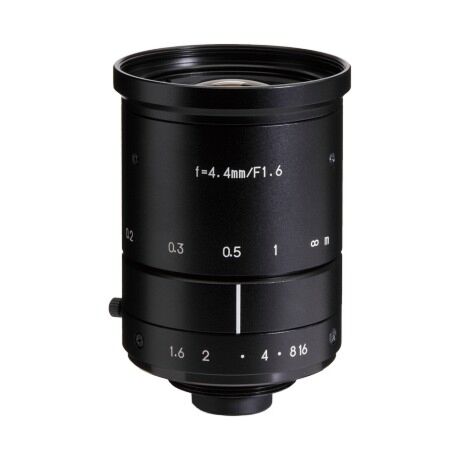

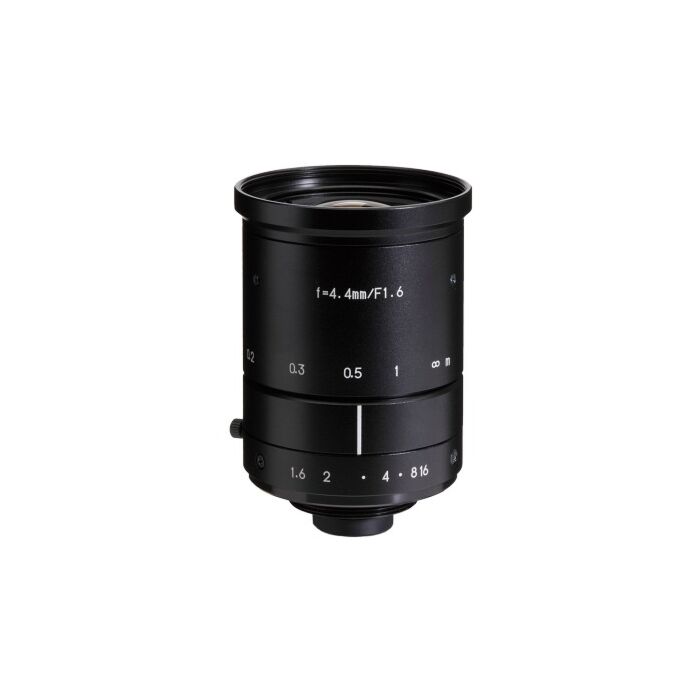

Kowa LM4NCM 1/2" 4.4mm Megapixel Lens
1/2", 4.4mm, Megapixel Lens.
SKU
LM4NCM
The Wide Megapixel lens series offers extremely high resolution and utilizes Kowa's floating mechanism design. The wide angle 3.5mm, 4mm, and 5mm megapixel models will pave the way for new possibilities in machine vision systems.
| Focal Length (mm) | 4.4 |
| Image Size (mm) | 7.2×5.4 (Φ9) |
| Iris Range (F-stop) | F1.6 ~ 16 |
| Focusing Range (m) | 0.1 ~ ∞ |
| Iris Control | Manual |
| Focus Control | Manual |
| Shooting Range at M.O.D. (mm) | 190.0(H) x 141.2(V) |
| Angle of View 2/3" (°) | - |
| Angle of View 1/1.8" (°) | 76.6 x 61.3 |
| Angle of View 1/2" (°) | 70.2 x 55.5 |
| Angle of View 1/3" (°) | 55.5 x 43 |
| Resolution (Center, Corner) | 120lp/mm, 100lp/mm |
| TV Distortion (%) | -0.2 |
| Back Focus in Air (mm) | 8.8 |
| Mount | C-Mount |
| Filter Thread (mm) | M43xP0.75 |
| Size (mm) | Φ45×57.3 |
| Weight (g) | 150 |
| Temperature Range | -10°C - +50°C |
