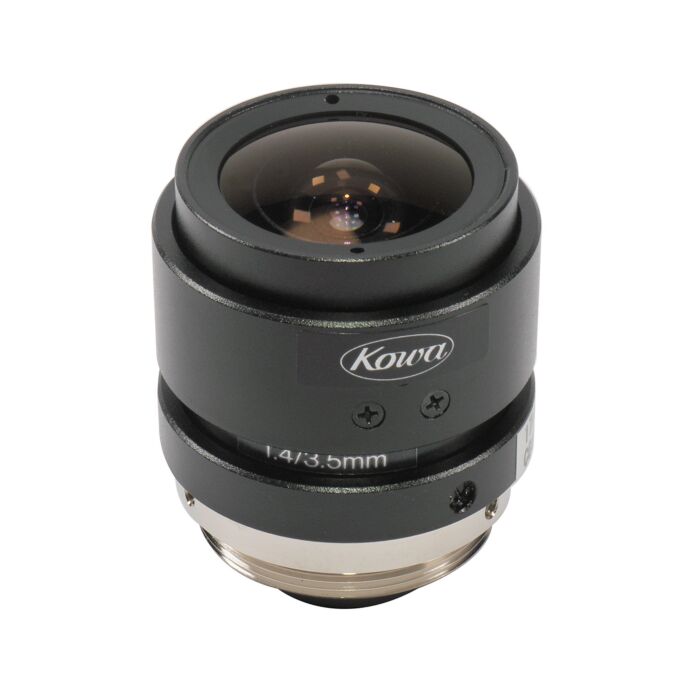

Kowa LM4NCL 1/2" 3.5mm NCL Lens (Locking Screw)

Quick Overview

1/2", 3.5mm, NCL Lens (Locking Screw).

For pricing and technical support:
888-687-6877
Click here to find your Sales Rep
Click Here to Get a Quote


Availability: In stock

More Views

Kowa LM4NCL 1/2" 3.5mm NCL Lens (Locking Screw).

  • Model: /k/o/kowa_lens_lm4ncl_1.jpg

Additional Information

Overview

Designed for 3CCD cameras, these megapixel lenses exhibit an extremely high quality of color performance and resolution.

Features:

  • High Performance and Compact - This high performance lens is optimal for a wide range of applications


Applications:

  • Machine Vision
  • Factory Automation
  • NIR/SWIR Applications
  • Inspection
Specifications
Focal Length (mm) 3.5
Lens Type Fixed
Image Size (mm) 1/2" (Φ8)
Iris Range (F-stop) F1.4 ~ F16
Focusing Range (m) 0.2 ~ ∞
Iris Control Manual
Focus Control Manual
Shooting Range at M.O.D. (mm) 396(H) x 247(V)
Angle of View 2/3" (°) -
Angle of View 1/2" (°) 103.6 x 76.6
Angle of View 1/3" (°) 77 x 57.7
Horizontal Angle of View (°) 103.6°
Vertical Angle of View (°) 76.6°
Diagonal Angle of View (°) 132.1°
Horizontal Shooting Range at M.O.D. (mm) 396
Vertical Shooting Range at M.O.D. (mm) 247
Diagonal Shooting Range at M.O.D (mm) 688
Resolution (Center, Corner) 100lp/mm, 60lp/mm
TV Distortion (%) -28.0
Back Focus in Air (mm) 8.89
Mount C-Mount
Filter Thread Size (mm)
Minimum Focus Distance (m) 0.2
Flange Back in Air (mm) 17.526
Front/Rear Effective DIA (mm) Φ19.6, Φ10.4
Exit Pupil (mm) -71.4
Size (mm) Φ31 x 30.5
Weight (g) 73
Temperature Range (°C) -10 ~ +45
Product Videos No
Accessories No

Designed for 3CCD cameras, these megapixel lenses exhibit an extremely high quality of color performance and resolution.

Features:

  • High Performance and Compact - This high performance lens is optimal for a wide range of applications


Applications:

  • Machine Vision
  • Factory Automation
  • NIR/SWIR Applications
  • Inspection
Focal Length (mm) 3.5
Lens Type Fixed
Image Size (mm) 1/2" (Φ8)
Iris Range (F-stop) F1.4 ~ F16
Focusing Range (m) 0.2 ~ ∞
Iris Control Manual
Focus Control Manual
Shooting Range at M.O.D. (mm) 396(H) x 247(V)
Angle of View 2/3" (°) -
Angle of View 1/2" (°) 103.6 x 76.6
Angle of View 1/3" (°) 77 x 57.7
Horizontal Angle of View (°) 103.6°
Vertical Angle of View (°) 76.6°
Diagonal Angle of View (°) 132.1°
Horizontal Shooting Range at M.O.D. (mm) 396
Vertical Shooting Range at M.O.D. (mm) 247
Diagonal Shooting Range at M.O.D (mm) 688
Resolution (Center, Corner) 100lp/mm, 60lp/mm
TV Distortion (%) -28.0
Back Focus in Air (mm) 8.89
Mount C-Mount
Filter Thread Size (mm)
Minimum Focus Distance (m) 0.2
Flange Back in Air (mm) 17.526
Front/Rear Effective DIA (mm) Φ19.6, Φ10.4
Exit Pupil (mm) -71.4
Size (mm) Φ31 x 30.5
Weight (g) 73
Temperature Range (°C) -10 ~ +45
