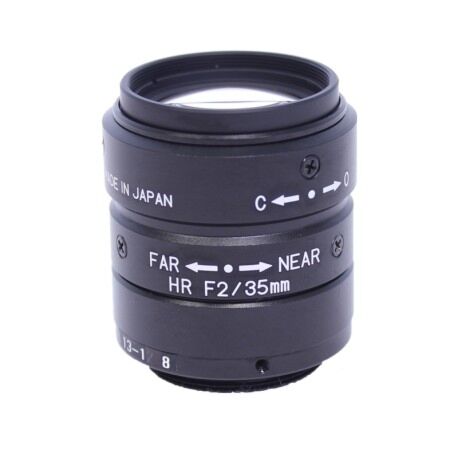

Kowa LM35JCM 2/3" 35mm Megapixel Lens

Quick Overview

2/3", 35mm, Megapixel Lens.

For pricing and technical support:
888-687-6877
Click here to find your Sales Rep
Click Here to Get a Quote


Availability: In stock

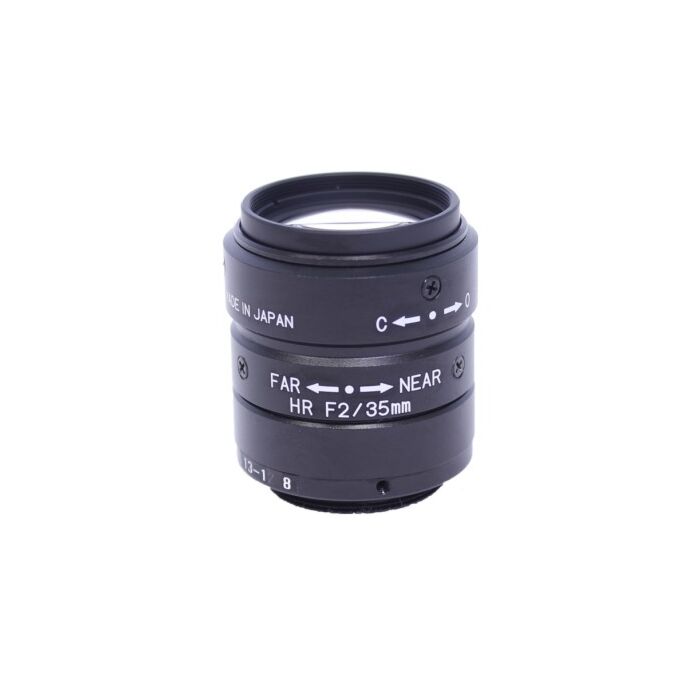

More Views

Kowa LM35JCM 2/3" 35mm Megapixel Lens.

  • Model: /k/o/kowa_lenses_lm35jcm_1.jpg

Additional Information

Overview

This series of megapixel lenses offers super high resolution and utilizes the floating mechanism system. The new wide angle 5mm megapixel lens will pave the way for new possibilities in machine vision systems.

Features:

  • Floating Mechanism Design - Kowa's floating mechanism design virtually eliminates optical abberations from close distance to infinity
  • High Resolution - Creates crisp, clear images even at long distances
  • Ideal for Megapixel Cameras - Assists megapixel cameras in producing large, high resolution images
  • Excellent Corner Brightness - No fading along edges of the image
  • Low Distortion - Kowa's design solves distortion issues to create an accurate reproduction of the environment


Applications:

  • Machine Vision
  • Factory Automation
  • NIR/SWIR Applications
  • Inspection
Specifications
Focal Length (mm) 35
Lens Type Fixed
Image Size (mm) 2/3" (Φ11)
Iris Range (F-stop) F2.0 ~ F16
Focusing Range (m) 0.2 ~ ∞
Iris Control Manual
Focus Control Manual
Shooting Range at M.O.D. (mm) 47.9(H) x 35.8(V)
Angle of View 2/3" (°) 14.4 x 10.8
Angle of View 1/2" (°)  10.5 x 7.9
Angle of View 1/3" (°) 7.9 x 5.9
Resolution (Center, Corner) 120lp/mm, 100 lp/mm
TV Distortion (%) -0.2
Back Focus in Air (mm) 20.1
Mount C-Mount
Filter Thread Size (mm)  M27 x P0.5
Minimum Focus Distance (m)  0.2
Flange Back in Air (mm) 17.526
Front/Rear Effective DIA (mm) Φ21.5, Φ11.7
Exit Pupil (mm) -38.7
Size (mm) Φ34 x 36.5
Weight (g) 89
Temperature Range (°C) -10 ~ +45
