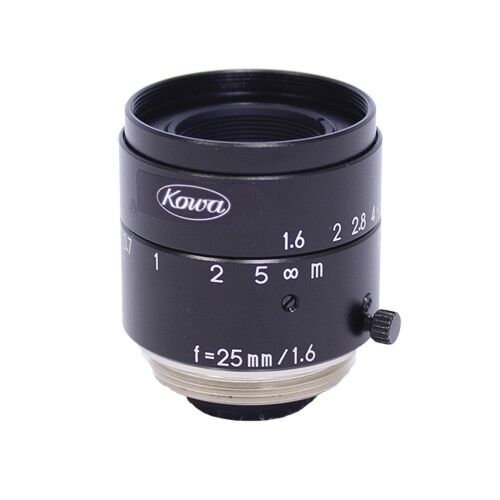

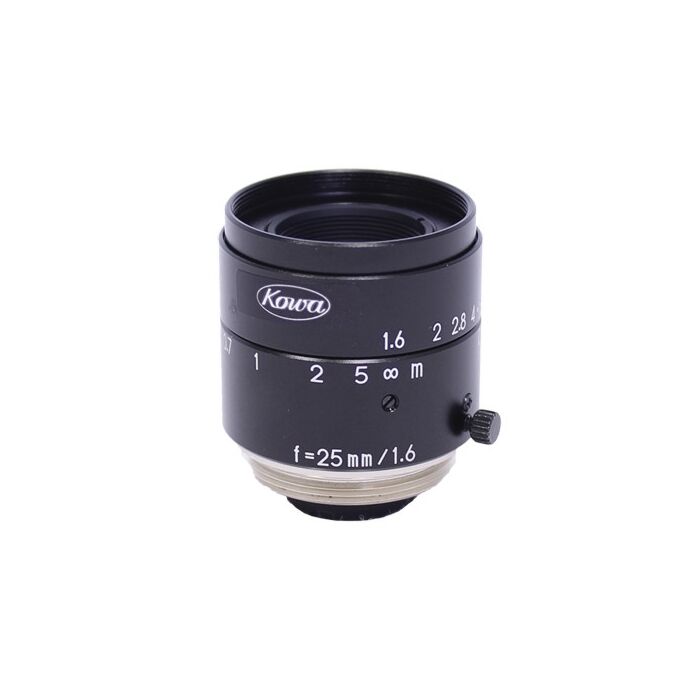

Kowa LM25JC3M2 2/3" Format 25mm Megapixel Lens

2/3", 25mm, Megapixel Lens.
SKU
LM25JC3M2

Features:

  • Kowa's wide-band multi-coating effectively decreases glare and refraction and produces a high transmission from the visible to NIR wavelength range.
  • Kowa's floating mechanism system virtually eliminates optical aberrations from close distance to infinity
  • Low distortion
  • Excellent corner brightness
  • Applicable on 1/1.2" as well
  • Focal Length (mm) 25 mm
    Image Size (mm) 8.8x6.6 (Φ11)
    Iris Range F 1.4 - 16
    Focusing range (m) 0.2 - ∞
    Iris Manual
    Focus  Manual
    Shooting range at MOD (mm) 71.1 x 53.3
    Angle of View (Degrees) 2/3": 19.6 x 14.8
    1/1.8": 16.1 x 12.1
    1/2": 14.0 x 110.5
    TV Distortion (%) -0.04
    Back Focus in Air (mm) 11.7
    Mount C-Mount
    Filter Thread (mm) M27xP0.5
    Size (mm) Φ33.5 x 39.5
    Weight 90
    Temperature Range -10°C - +50°C
